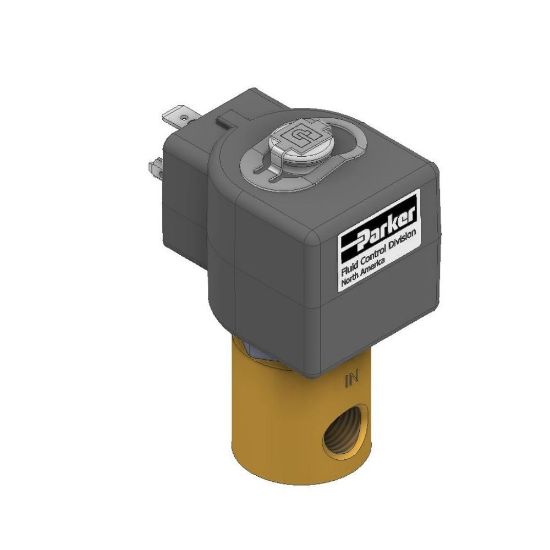

Parker 04F20O1308ACFPH15 - Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to .96 CV's. They have brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 04F20O1308ACFPH15

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Port Size	1/4
Body Material	Brass	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Open (NO)
Coil Type	DIN Form A, Class F	Valve Type	2-Way
Input Voltage	220/50 to 240/60	Seal Material	EPDM
Actuation Type	Direct Acting	Orifice 1 Size	1/8
Orifice 2 Size	n/a	Product Series	Gold Ring Series
Number of Ports	2	Power Consumption	11 W (AC)
Flow Coefficient 1	0.35	Flow Coefficient 2	n/a
Coil Specifications Met	Class F	Maximum Fluid Temperature	180
Minimum Fluid Temperature	0	Maximum Pressure Differential	130 psi (AC)
Minimum Pressure Differential	0	Seal Material	EPDM
Coil Type	DIN Form A, Class F	Voltage (V)	220/50-240/60
Power (Watts)	11 Watt (AC)	Flow Factor 1 (Cv)	0.35
Orifice 1 Size (inch)	1/8	Maximum Pressure Differential (psi)	130 psi (AC)
