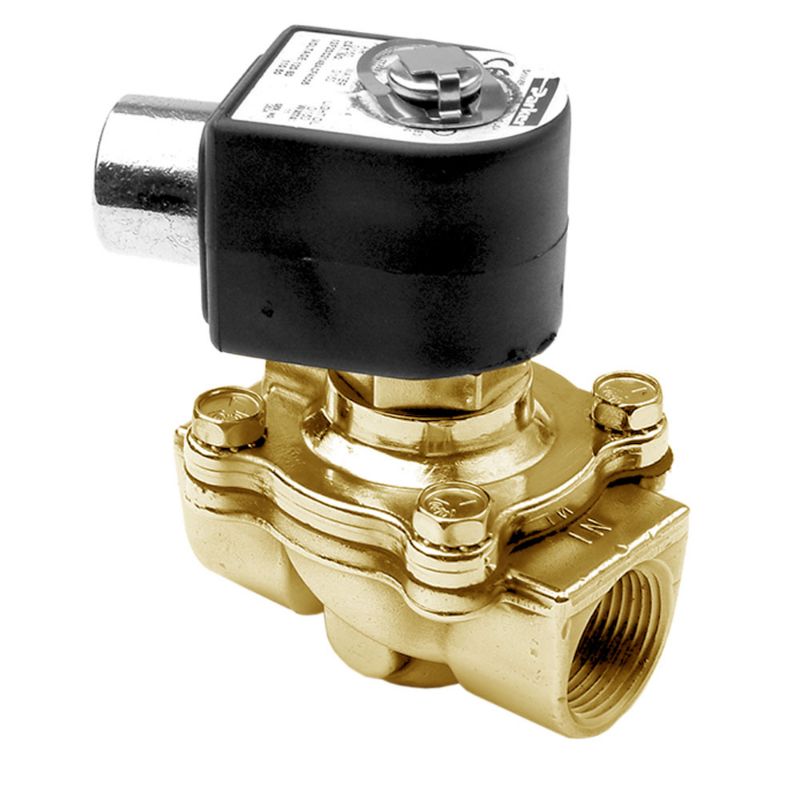

Parker 06F22C2140AAF4C05 - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 06F22C2140AAF4C05

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	3/8 inch	Division	Fluid Control Division
Media	General Purpose	Function	Normally Closed
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Port Type	NPT
Body Material	Brass	Input Voltage	120/60, 110/50 VAC
Seal Material	NBR	Actuation Type	Internally Piloted
Power Consumption	11.0 W	Maximum Fluid Temperature	180.0 °F
Maximum Pressure Differential	135 (200 Air, Inert Gas) psi	Minimum Pressure Differential	5.0 psi
Installation	IOM 7321	Orifice Size	5/8 inch
Insulation Class	Class F	Specifications Met	UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC
Valve Configuration	2 Way	Main Flow Coefficient	3.0 Cv
Ingress Protection Rating	NEMA 4,4X	Preventive Maintenance Kit	06F22C2140AAFR
Maximum Ambient Temperature	77.0 °F	Port Size	3/8
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Body Material	BRASS
Seal Material	NBR	Media	General Purpose
Function	Normally Closed	Port Type	NPT
Installation	IOM 7321	Orifice Size	5/8
Input Voltage	120/60, 110/50	Actuation Type	Internally Piloted
Insulation Class	Class F	Power Consumption	11.0
Specifications Met	UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC	Valve Configuration	2 Way
Main Flow Coefficient	3.0	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	180.0	Preventive Maintenance Kit	06F22C2140AAFR
Maximum Ambient Temperature	77.0	Maximum Pressure Differential	135 (200 Air, Inert Gas)
Minimum Pressure Differential	5.0
