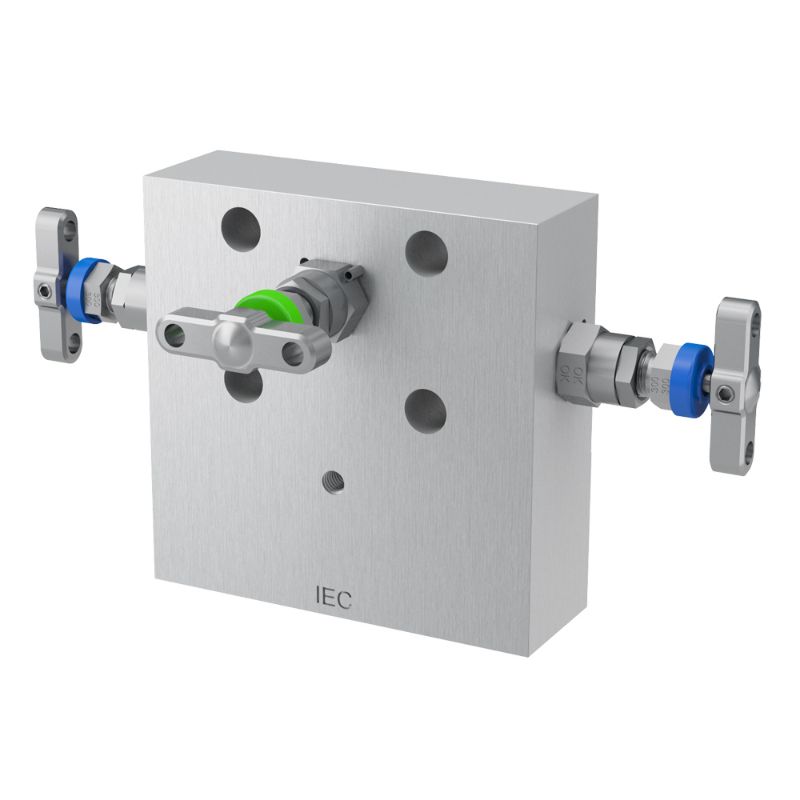

Parker HD6MO3EXT3 - 2, 3 and 5 Valve instrument enclosure manifolds, needle pattern - H Series

Multiple block instrument manifold valves of extended dimensions for installation within instrument protection enclosures. Available in pressure ratings up to 6,000 psi (414 bar) and in a wide range of materials for most service applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HD6MO3EXT3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
For Fluid Type	General Gaseous and Liquid Media	Operating Pressure	6000 PSI / 414 BAR
Seat Material	Graphite	Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF
Division	Instrumentation Products Division	Body Type	Extended Flat Barstock
Operating Temperature	From -54°C to +538°C, From -65°F to +1000°F	Bolt Material	Carbon Steel
Seat Material	Graphite	Body Material	6Mo
Configuration	Double Isolate and Equalise	Meets Certifications	N/A
Outlet Connection	DIN IEC B Flange	Mounting Style	Direct
Inlet Connection	1/2 Inch NPT Female	Vent Size	1/4 Inch NPT Female
Options	n/a	Number of Valves	3
