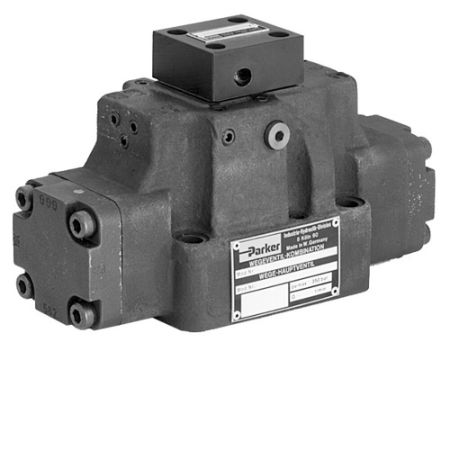

Oil Operated Directional Control Valve - D8P Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D8P directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Low pressure drop design
• Hardened spools provide long life

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Seal Material	Maximum Operating Pressure	Division	Minimum Operating Temperature	Actuation Type	Maximum Flow Rate	Options	Maximum Operating Temperature	Valve Type	Body Material	Spool Position	Spool Code	Size	Weight	Mounting Type	Mounting Type	Maximum Operating Pressure	Size	Maximum Flow Rate
D8P11C2N	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	n/a	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P11C2N60	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	Pilot Choke - Meter in	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P11C2N7	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	Pilot Choke - Meter out	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P11C2N8	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	Stroke Adj. 'B' End	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P11C2N89	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	Stroke Adj. 'A' & 'B' End	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P11C2N9	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	Stroke Adj. 'A' End	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P11C2V	Quote Required	Quote Required	TBD	Fluorocarbon	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	n/a	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P11C2V60	Quote Required	Quote Required	TBD	Fluorocarbon	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	Pilot Choke - Meter in	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P11C2V7	Quote Required	Quote Required	TBD	Fluorocarbon	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	Pilot Choke - Meter out	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P11C2V8	Quote Required	Quote Required	TBD	Fluorocarbon	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	Stroke Adj. 'B' End	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P11C2V89	Quote Required	Quote Required	TBD	Fluorocarbon	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	Stroke Adj. 'A' & 'B' End	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P11C2V9	Quote Required	Quote Required	TBD	Fluorocarbon	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	160	Stroke Adj. 'A' End	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; P port Blocked, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P12C2N	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	80	n/a	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Open, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P12C2N60	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	80	Pilot Choke - Meter in	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Open, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P12C2N7	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	80	Pilot Choke - Meter out	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Open, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P12C2N8	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	80	Stroke Adj. 'B' End	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Open, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P12C2N89	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	80	Stroke Adj. 'A' & 'B' End	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Open, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P12C2N9	Quote Required	Quote Required	TBD	Nitrile	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	80	Stroke Adj. 'A' End	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Open, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P12C2V	Quote Required	Quote Required	TBD	Fluorocarbon	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	80	n/a	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Open, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
D8P12C2V60	Quote Required	Quote Required	TBD	Fluorocarbon	5000	Hydraulic Valve Systems Division	-4	Hydraulic Pressure	80	Pilot Choke - Meter in	+140	Oil Operated Directional Control Valve	Grey Iron	Double Operator, 3 position, spring centered	4-way, 3 position; All Ports Open, Metered	NFPA DO8, CETOP 8, DIN NG25	41.7	Subplate, Manifold	Subplate	5000 PSI	NFPA DO8, CETOP 8, DIN NG25	Up to 160 GPM depending on spool
