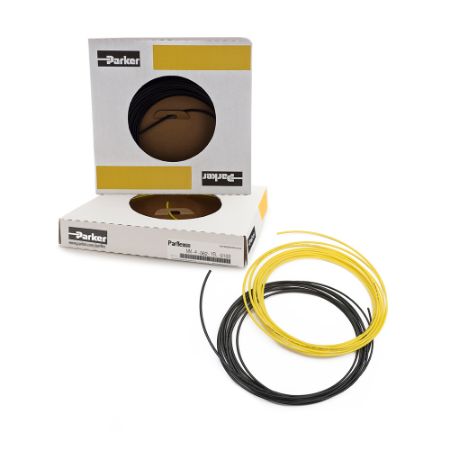

Nylon Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flexible Nylon Tubing uses high-grade polyamide resins for strength and flexibility for routing in tight spaces. It is made from abrasion-resistant, heat and light-stabilized nylon that is available in natural or black tubing. The black tubing is suggested for use in sunlit areas and in close proximity to high ultraviolet (UV) light sources. Nylon plastic tubing exhibits a low-level water absorption and is chemically resistant, making it the optimal solution for machine tool and industrial pneumatic applications, such as robotics, lubrication, petroleum-based chemical transfer and pest control lines. Parflex Nylon Tubing is available in fractional inch and metric sizes.

Markets:
• Robotics< br/>• Automation< br/>• Industrial Pneumatics
• Machine Tool
• Lubrication
• Petroleum based chemical transer
• Pest Control< br/>• Fluid Handling

Features/Benefits:
• Flexible nylon tubing uses high-grade resins for strength and flexibility for routing in tight spaces
• Made from abrasion-resistant, heat and light-stabilized polyamide resin
• Exhibits low-level water absorption
• Chemically resistant tubing

Applications:
• Robotics
• Machine tool
• General pneumatics
• Lubrication
• Petroleum-based chemical transfer
• Pest control lines

Technical Specifications:
• Working and burst pressures rated at 73°F (23°C
• A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur
• The recommended operating temperature range for service at rated pressures with compatible fluids, depending upon conditions, is -54°C to +93°C (-65°F to +200°F)
• Black UV resistant tubing suggested for use in sunlit areas and in close proximity to high ultraviolet light sources
• Select sizes available in 100 ft boxes

Display per page

Part No.	Availability	Partner Available	Price	UOM	Application	Maximum Operating Pressure	Tube Inside Diameter	Minimum Burst Pressure	Tube Outside Diameter	Minimum Bend Radius	Length per Package	Size	Maximum Operating Temperature	Specifications Met	Color	Cover Material	Tube Material	Weight	Compatible Fitting	Media	Division	Minimum Operating Temperature	Order Size	Color	Standard Pack Qty (ft)
N-2.5-025-BLU	Quote Required	1557 In Stock	$0.48	FT	Lubrication	20.7 bar	2.7 mm	1200 psi	5/32 inch	12.7 mm	76.2 m	-2.5	200 °F	N/A	Blue	n/a	Polyamide (PA)	0.007 kg/m	NTA®	Hydraulic Fluids	Parflex Division	-54 °C	5/32	Blue	250
N-2.5-025-GRN	Quote Required	379 In Stock	$0.48	FT	Pneumatics	20.7 bar	0.106 inch	1200 psi	5/32 inch	0.5 inch	76.2 m	-2.5	93 °C	N/A	Green	n/a	Polyamide (PA)	0.007 kg/m	NTA®	Hydraulic Fluids	Parflex Division	-54 °C	5/32	Green	250
N-2.5-025-RED	Quote Required	570 In Stock	$0.48	FT	Machine Tools	20.7 bar	2.7 mm	1200 psi	5/32 inch	12.7 mm	76.2 m	-2.5	200 °F	N/A	Red	n/a	Polyamide (PA)	0.005 lb/ft	Hi-Duty	Air	Parflex Division	-54 °C	5/32	Red	250
N-2.5-025-YEL	Quote Required	98 In Stock	$0.48	FT	Fluid Transfer	300 psi	0.106 inch	1200 psi	5/32 inch	12.7 mm	76.2 m	-2.5	200 °F	N/A	Yellow	n/a	Polyamide (PA)	0.005 lb/ft	Prestolok®	Lubricants	Parflex Division	-54 °C	5/32	Yellow	250
N-2-016-BLU	Quote Required	Quote Required	TBD		Pneumatics	250	0.093	1000	1/8	0.25	250	-2	200	N/A	Blue	n/a	Polyamide (PA)	0.003	Compression	Air	Parflex Division	-54	1/8	Blue	250
N-2-016-GRN	Quote Required	Quote Required	TBD		Pneumatics	250	0.093	1000	1/8	0.25	250	-2	200	N/A	Green	n/a	Polyamide (PA)	0.003	Compression	Air	Parflex Division	-54	1/8	Green	250
N-2-016-RED	Quote Required	Quote Required	TBD	FT	Pneumatics	250	0.093	1000	1/8	4.6	250	-2	200	N/A	Red	n/a	Polyamide (PA)	0.003	Compression	Air	Parflex Division	-54	1/8	Red	250
N-2-016-YEL	Quote Required	Quote Required	TBD		Pneumatics	250	0.093	1000	1/8	0.25	250	-2	200	N/A	Yellow	n/a	Polyamide (PA)	0.003	Compression	Air	Parflex Division	-54	1/8	Yellow	250
N-2-031-BLU	Quote Required	Quote Required	TBD		Pneumatics	500	0.064	2000	1/8	0.25	250	-2	200	N/A	Blue	n/a	Polyamide (PA)	0.004	Compression	Air	Parflex Division	-54	1/8	Blue	250
N-2-031-GRN	Quote Required	Quote Required	TBD		Pneumatics	500	0.064	2000	1/8	0.25	250	-2	200	N/A	Green	n/a	Polyamide (PA)	0.004	Compression	Air	Parflex Division	-54	1/8	Green	250
N-2-031-RED	Quote Required	Quote Required	TBD		Pneumatics	500	0.064	2000	1/8	0.25	250	-2	200	N/A	Red	n/a	Polyamide (PA)	0.004	Compression	Air	Parflex Division	-54	1/8	Red	250
N-2-031-YEL	Quote Required	Quote Required	TBD		Pneumatics	500	0.064	2000	1/8	0.25	250	-2	200	N/A	Yellow	n/a	Polyamide (PA)	0.004	Compression	Air	Parflex Division	-54	1/8	Yellow	250
N-3-025-BLU	Quote Required	Quote Required	TBD		Pneumatics	250	0.138	1000	3/16	0.63	250	-3	200	N/A	Blue	n/a	Polyamide (PA)	0.006	Compression	Air	Parflex Division	-54	3/16	Blue	250
N-3-025-GRN	Quote Required	Quote Required	TBD		Pneumatics	250	0.138	1000	3/16	0.63	250	-3	200	N/A	Green	n/a	Polyamide (PA)	0.009	Compression	Air	Parflex Division	-54	3/16	Green	250
N-3-025-RED	Quote Required	Quote Required	TBD		Pneumatics	250	0.138	1000	3/16	0.63	250	-3	200	N/A	Red	n/a	Polyamide (PA)	0.006	Compression	Air	Parflex Division	-54	3/16	Red	250
N-3-025-YEL	Quote Required	Quote Required	TBD		Lubrication	250	0.138	1000	3/16	0.63	250	-3	200	N/A	Yellow	n/a	Polyamide (PA)	0.006	Compression	Air	Parflex Division	-54	3/16	Yellow	250
N-3-046-BLU	Quote Required	Quote Required	TBD		Pneumatics	500	0.096	2000	3/16	0.44	250	-3	200	N/A	Blue	n/a	Polyamide (PA)	0.009	Compression	Air	Parflex Division	-54	3/16	Blue	250
N-3-046-GRN	Quote Required	Quote Required	TBD		Pneumatics	500	0.096	2000	3/16	0.44	250	-3	200	N/A	Green	n/a	Polyamide (PA)	0.009	Compression	Air	Parflex Division	-54	3/16	Green	250
N-3-046-RED	Quote Required	Quote Required	TBD		Pneumatics	500	0.096	2000	3/16	0.44	250	-3	200	N/A	Red	n/a	Polyamide (PA)	0.009	Compression	Air	Parflex Division	-54	3/16	Red	250
N-3-046-YEL	Quote Required	Quote Required	TBD		Pneumatics	500	0.096	2000	3/16	0.44	250	-3	200	N/A	Yellow	n/a	Polyamide (PA)	0.009	Compression	Air	Parflex Division	-54	3/16	Yellow	250
