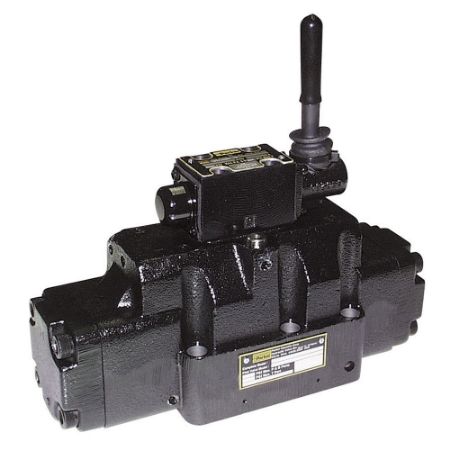

Lever Operated Directional Control Valve - D81VL Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D81VL directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Low pressure drop design
• Low force required to shift spool
• Hardened spools provide long life

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

Action	Part No.	Availability	Partner Available	Price	Maximum Operating Temperature	Size	Mounting Type	Options	Valve Type	Spool Position	Division	Actuation Type	Seal Material	Weight	Maximum Operating Pressure	Spool Code	Maximum Flow Rate	Body Material	Pilot Inlet / Drain Locations	Minimum Operating Temperature
	D81VL001C4N	Quote Required	Quote Required	$2,242.50/each	+140	NFPA D08, CETOP 8, NG25	Subplate	N/A	Lever Operated Directional Control Valve	Double Operator, 3 position, spring centered	Hydraulic Valve Systems Division	Hydraulic Pressure	Nitrile	26.7	5000	4-way, 3 position; All Ports Blocked	160	Grey Iron	Int. Pilot/Int. Drain	-4
