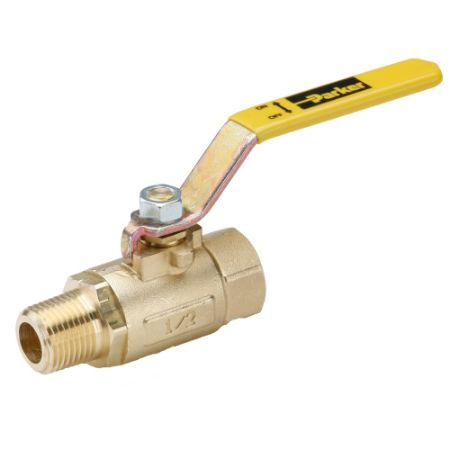

Industrial Brass Ball Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's industrial brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications these valves offer increased performance over lightweight throwaway valves. These ball valves are intended for use in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
Parker's brass ball valves are available in a range of styles including:
• Female x Female
• Female x Male
• Panel Mount
• Female Straight Thread x Female Straight Thread
• Solder ends
• Female Straight Thread x Male Straight Thread
• 3 and 4 Way Diversion
• 90? Valves
• Beaded Hose Barb End
• 6 Port Valve
Options for the brass ball valves include:
• Nickel Plating
• Venting
• Padlocking Handles
• Stainless Steel Ball & Stem
• Stainless Steel Handle & Nut
• Tee Handle
• Oval Handle
• Plain Yellow Vinyl Handle Cover
• Actuator Kit
Markets:
• Heavy Duty Truck
• Mobile
• Agriculture
• Construction
• Industrial
Features/Benefits:
• Forged Body for Added Strength
• Chrome Plated Brass Ball
• PTFE Seats and Seals
• Wide Range of Styles
• Quarter Turn Handle Provides Positive Stop Action for Full Shutoff
Applications:
• Fuel Line Shutoffs for Gasoline and Diesel Equipment
• Air Service lines
• Water Service Lines on Capital Equipment
• Plant Design Plumbing Requiring Total Shutoff Capability
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Body Material | Seal Material | Maximum Operating Temperature | Connection Type | Maximum Operating Pressure | Minimum Operating Temperature | Connection Size | Maximum Flow Rate | Shape | Actuation Type | Seat Material | Handle Type | Operation Type | Product Type | Ball Material | Function | Configuration | Orifice Size | Mounting Type | Connection 2 Thread Size (inch) | Vented | Connection 2 Solder O.D. (inch) | Maximum Working Pressure (psi) | Locking Mechanism | Connection 1 Thread Size (inch) | Connection 2 Thread Style | Style | Handle | Connection 1 Thread Style | Shape | Connection 1 Solder O.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MV708-2 | Quote Required | TBD | Fluid System Connectors Division | Brass | PTFE | 300 °F | NPT | 34 bar | -35 °F | 1/8 inch | n/a | In-Line | Manual | PTFE | Lever | n/a | Mini Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Male-Female Ports | .18 inch | Panel, In-Line | 1/8 | No | na | 500 | Non-Locking | 1/8 | Female Pipe | Female/Male | Chrome Plated Steel | Male Pipe | In Line | na | |||
| MV708-4 | 21 In Stock | 230 In Stock | $17.48 | EA | Fluid System Connectors Division | Brass | PTFE | 148 °C | NPT | 34 bar | -37 °C | 1/4 inch | n/a | In-Line | Manual | PTFE | Lever | n/a | Mini Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Male-Female Ports | .21 inch | Panel, In-Line | 1/4 | No | na | 500 | Non-Locking | 1/4 | Female Pipe | Female/Male | Chrome Plated Steel | Male Pipe | In Line | na | |
| MV709-2 | Quote Required | TBD | Fluid System Connectors Division | Brass | PTFE | 148 °C | NPT | 34 bar | -37 °C | 1/8 inch | n/a | In-Line | Manual | PTFE | Lever | n/a | Mini Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Male-Female Ports | .18 inch | Panel, In-Line | 1/8 | No | na | 500 | Non-Locking | 1/8 | Female Pipe | Female to Female | Chrome Plated Steel | Female Pipe | In Line | na | |||
| MV709-4 | 7 In Stock | 41 In Stock | $18.89 | EA | Fluid System Connectors Division | Brass | PTFE | 300 °F | NPT | 34 bar | -35 °F | 1/4 inch | n/a | In-Line | Manual | PTFE | Lever | n/a | Mini Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Male-Female Ports | .21 inch | Panel, In-Line | 1/4 | No | na | 500 | Non-Locking | 1/4 | Female Pipe | Female to Female | Chrome Plated Steel | Female Pipe | In Line | na | |
| V500P-12 | 181 In Stock | 484 In Stock | $45.40 | EA | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 3/4 | 25 | In-Line | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .69 | Panel, In-Line | 3/4 | No | na | 600 | Non-Locking | 3/4 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-12-04 | Quote Required | TBD | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 3/4 | 25 | In-Line | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .69 | Panel, In-Line | 3/4 | No | na | 600 | Non-Locking | 3/4 | Female Pipe | Female to Female | Tee Handle | Female Pipe | In Line | na | |||
| V500P-12-16HB | Quote Required | TBD | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 10 | 0 | 3/4 | 25 | In-Line | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .69 | Panel, In-Line | 3/4 | No | na | 150 | Non-Locking | 1 | Female Pipe | Female to Hose Barb | Steel Lever | Hose Barb | In Line | na | |||
| V500P-12-21 | Quote Required | TBD | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 3/4 | 25 | In-Line | Manual | PTFE | Oval | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .69 | Panel, In-Line | 3/4 | No | na | 600 | Non-Locking | 3/4 | Female Pipe | Female to Female | Steel Oval | Female Pipe | In Line | na | |||
| V500P-16 | 83 In Stock | 423 In Stock | $57.44 | EA | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 1 | 35 | In-Line | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .88 | Panel, In-Line | 1 | No | na | 600 | Non-Locking | 1 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-16-04 | Quote Required | TBD | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 1 | 35 | In-Line | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .88 | Panel, In-Line | 1 | No | na | 600 | Non-Locking | 1 | Female Pipe | Female to Female | Tee Handle | Female Pipe | In Line | na | |||
| V500P-20 | 40 In Stock | 126 In Stock | $97.58 | EA | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 1 1/4 | 57 | In-Line | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | 1.18 | Panel, In-Line | 1 1/4 | No | na | 600 | Non-Locking | 1 1/4 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-24 | 23 In Stock | 60 In Stock | $128.61 | EA | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 1 1/2 | 92 | In-Line | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | 1.50 | Panel, In-Line | 1 1/2 | No | na | 600 | Non-Locking | 1 1/2 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-32 | 26 In Stock | 69 In Stock | $191.04 | EA | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 2 | 224 | In-Line | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | 1.89 | Panel, In-Line | 2 | No | na | 600 | Non-Locking | 2 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-4 | 114 In Stock | 643 In Stock | $27.48 | EA | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 1/4 | 4 | In-Line | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .38 | Panel, In-Line | 1/4 | No | na | 600 | Non-Locking | 1/4 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-4-04 | Quote Required | TBD | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 1/4 | 4 | In-Line | Manual | PTFE | Tee | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .38 | Panel, In-Line | 1/4 | No | na | 600 | Non-Locking | 1/4 | Female Pipe | Female to Female | Tee Handle | Female Pipe | In Line | na | |||
| V500P-6 | 95 In Stock | 915 In Stock | $27.48 | EA | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 3/8 | 5.8 | In-Line | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .38 | Panel, In-Line | 3/8 | No | na | 600 | Non-Locking | 3/8 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-6-04 | Quote Required | TBD | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 3/8 | 5.8 | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .38 | Panel, In-Line | 3/8 | No | na | 600 | Non-Locking | 3/8 | Female Pipe | Female to Female | Tee Handle | Female Pipe | In Line | na | ||||
| V500P-8 | 157 In Stock | 529 In Stock | $27.49 | EA | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 1/2 | 12 | In-Line | Manual | PTFE | Lever | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .50 | Panel, In-Line | 3/8 | No | na | 600 | Non-Locking | 3/8 | Female Pipe | Female to Female | Steel Lever | Female Pipe | In Line | na | |
| V500P-8-02 | Quote Required | 47 In Stock | $36.42 | EA | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 1/2 | 12 | In-Line | Manual | PTFE | Stainless Steel Handle & Nut | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .50 | Panel, In-Line | 1/2 | No | na | 600 | Non-Locking | 1/2 | Female Pipe | Female to Female | Stainless Steel Handle | Female Pipe | In Line | na | |
| V500P-8-04 | Quote Required | 27 In Stock | $31.76 | EA | Fluid System Connectors Division | Brass | PTFE | 350 | NPT, Straight Thread Solder | 41 | 0 | 1/2 | 12 | In-Line | Manual | PTFE | Tee | n/a | Brass Series 500 Ball Valve | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Female-Female PTF Ports | .50 | Panel, In-Line | 1/2 | No | na | 600 | Non-Locking | 1/2 | Female Pipe | Female to Female | Tee Handle | Female Pipe | In Line | na |
