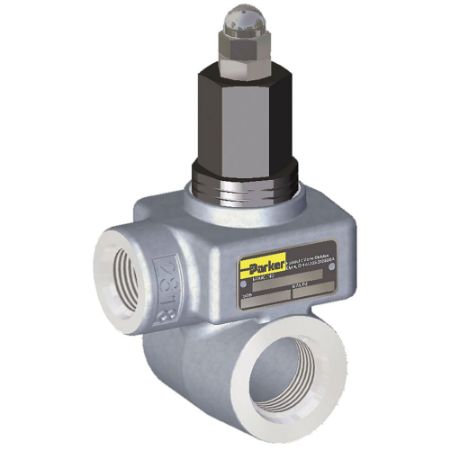

In-Line Mounted Differential Poppet Relief Valve – WJL Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s WJL is a compact, low profile relief design that is either shim or screw adjustable from 500 to 2000 PSI. Typical applications include main system pressure limiting as well as actuator protection.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• High-tensile cast iron body
• Compact, low profile design
• Hardened and ground poppet
• Standard porting options are 1/2” NPT and 3/4” NPT as well as SAE-10 and SAE-12
• The WJL is rated at 3000 PSI with SAE ports with a maximum recommend pump or actuator flow of 25 GPM
Applications:
• Suitable for various mobile applications
Read More...Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• High-tensile cast iron body
• Compact, low profile design
• Hardened and ground poppet
• Standard porting options are 1/2” NPT and 3/4” NPT as well as SAE-10 and SAE-12
• The WJL is rated at 3000 PSI with SAE ports with a maximum recommend pump or actuator flow of 25 GPM
Applications:
• Suitable for various mobile applications
| Action | Part No. | Availability | Partner Available | Price | Actuation Type | Seal Material | Weight | Maximum Operating Pressure | Connection Size | Product Style | Maximum Flow Rate | Body Material | Mounting Type | Minimum Operating Temperature | Connection Type | Division | Pressure Control Range | Maximum Operating Temperature | For Fluid Type | Pressure Relief Setting (psi) | Adjustment Type | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WJL-12-A-3000 | Quote Required | $259.50/each | Hydraulic Pressure | Nitrile | 3 lb | 3000 psi | #12 | In-Line Mounted Differential | 25 Gal/min | High Strength Cast Iron | In-Line | -40 °F | SAE | Hydraulic Valve Systems Division | 2000-3000 psi | +200 °F | Hydraulic Oil | 2000-3000 | Screw Adjustable | SAE-12 | ||
| WJL-50-2000 | Quote Required | $249.75/each | Hydraulic Pressure | Nitrile | 1.4 kg | 138 bar | 1/2" | In-Line Mounted Differential | 25 Gal/min | High Strength Cast Iron | In-Line | -40 °F | NPT | Hydraulic Valve Systems Division | 1250-2000 psi | +200 °F | Hydraulic Oil | 1250-2000 | Shim Adjustable | 1/2" NPT | ||
| WJL-50-A-1250 | Quote Required | $276.00/each | Hydraulic Pressure | Nitrile | 3 lb | 138 bar | 1/2" | In-Line Mounted Differential | 25 Gal/min | High Strength Cast Iron | In-Line | -40 °F | NPT | Hydraulic Valve Systems Division | 500-1250 psi | +200 °F | Hydraulic Oil | 500-1250 | Screw Adjustable | 1/2" NPT | ||
| WJL-75-3000 | Quote Required | $249.75/each | Hydraulic Pressure | Nitrile | 3 lb | 2000 psi | 3/4" | In-Line Mounted Differential | 25 Gal/min | High Strength Cast Iron | In-Line | -40 °F | NPT | Hydraulic Valve Systems Division | 2000-3000 psi | +200 °F | Hydraulic Oil | 2000-3000 | Shim Adjustable | 3/4" NPT | ||
| WJL-75-A-2000 | Quote Required | $276.00/each | Hydraulic Pressure | Nitrile | 3 lb | 2000 psi | 3/4" | In-Line Mounted Differential | 25 Gal/min | High Strength Cast Iron | In-Line | -40 °F | NPT | Hydraulic Valve Systems Division | 1250-2000 psi | +200 °F | Hydraulic Oil | 1250-2000 | Screw Adjustable | 3/4" NPT | ||
| WJL-75-A-2500 | Quote Required | 12 In Stock | $276.00/each | Hydraulic Pressure | Nitrile | 3 lb | 2000 psi | 3/4" | In-Line Mounted Differential | 25 Gal/min | High Strength Cast Iron | In-Line | -40 °F | NPT | Hydraulic Valve Systems Division | 2000-2500 psi | +200 °F | Hydraulic Oil | 2000-2500 | Screw Adjustable | 3/4" NPT | |
| WJL-75-A-3000 | Quote Required | $276.00/each | Hydraulic Pressure | Nitrile | 3 lb | 2000 psi | 3/4" | In-Line Mounted Differential | 25 Gal/min | High Strength Cast Iron | In-Line | -40 °F | NPT | Hydraulic Valve Systems Division | 2000-3000 psi | +200 °F | Hydraulic Oil | 2000-3000 | Screw Adjustable | 3/4" NPT |
