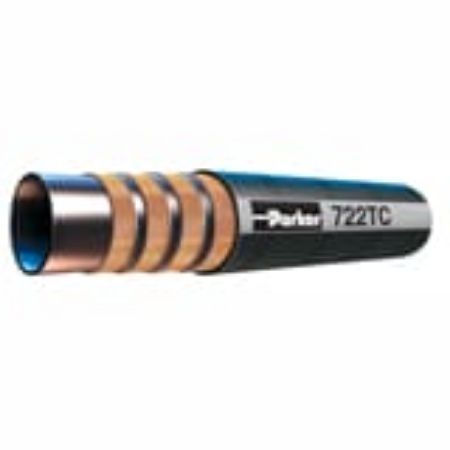

Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 722TC/ST hose is a hydraulic industry standard hose that has a pressure range of 2500-3000 PSI, with a synthetic rubber inner tube providing a wider range of fluid compatibility. The 722TC/ST hose is designed, built, and tested to meet ISO 3862-1 Type R12 / SAE J517 100R12 / SAE J1942 / EN 856 Type R12 performance specifications. Sizes range from 1-¼” to 2” in diameter with different cover options available for various markets.
Markets:
• Transportation
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Utility Equipment
• Waste & Refuse
Features/Benefits:
• ToughCover or SuperTough cover options to prevent abrasion
• ISO 3862-1 Type R12 / SAE J517 100R12 / SAE J1942 / EN 856 Type R12 certifications
• Half SAE bend radius for ease of installation and low force to flex
• 2500-3000 PSI working pressure in different sizes
• 4-spiral construction for longer life in high-impulse, heavy-duty cycle applications
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings (for -20 only)
• 71 series fittings (for -24 to -32)
Read More...Markets:
• Transportation
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Utility Equipment
• Waste & Refuse
Features/Benefits:
• ToughCover or SuperTough cover options to prevent abrasion
• ISO 3862-1 Type R12 / SAE J517 100R12 / SAE J1942 / EN 856 Type R12 certifications
• Half SAE bend radius for ease of installation and low force to flex
• 2500-3000 PSI working pressure in different sizes
• 4-spiral construction for longer life in high-impulse, heavy-duty cycle applications
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings (for -20 only)
• 71 series fittings (for -24 to -32)
| Action | Part No. | Availability | Partner Available | Price | Division | Inside Diameter | Compatible Fitting | Hose Inner Tube Material | Maximum Operating Temperature | Media | Application | Nominal Hose Inside Diameter | Cover Material | Minimum Bend Radius | Minimum Operating Temperature | Maximum Operating Pressure | Outside Diameter | Weight | Hose Reinforcement Material | Specifications Met | Hose I.D. (size) | Hose Cover Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 722TC-20 | 882 In Stock | 2947 In Stock | $52.11/each | Hose Products Division | 1-1/4 inch | 43 Series | Synthetic Rubber | 125 °C | Lubricants | Lubricating Oils | 31 mm | MSHA Approved | 8-1/4 inch | -40 °F | 3000 psi | 46 mm | 2.59 kg/m | 4 Spirals of Steel Wire | SAE J1942 | -20 | ToughCover | |
| 722TC-24 | 77 In Stock | 1409 In Stock | $62.56/each | Hose Products Division | 38 mm | 71 Series | Synthetic Rubber | 257 °F | Petroleum Hydraulic Fluids | Lubricating Oils | 38 mm | Synthetic Rubber | 250 mm | -40 °F | 17.5 MPa | 53 mm | 2.01 lb/ft | 4 Spirals of Steel Wire | USCG HF | -24 | ToughCover | |
| 722TC-32 | Quote Required | 365 In Stock | $92.90/each | Hose Products Division | 2 inch | 71 Series | Synthetic Rubber | 257 °F | Petroleum Hydraulic Fluids | Lubricating Oils | 51 mm | MSHA Approved | 12-1/2 inch | -40 °C | 17.5 MPa | 66 mm | 4.09 kg/m | 4 Spirals of Steel Wire | EN 856, Type R12 | -32 | ToughCover |
