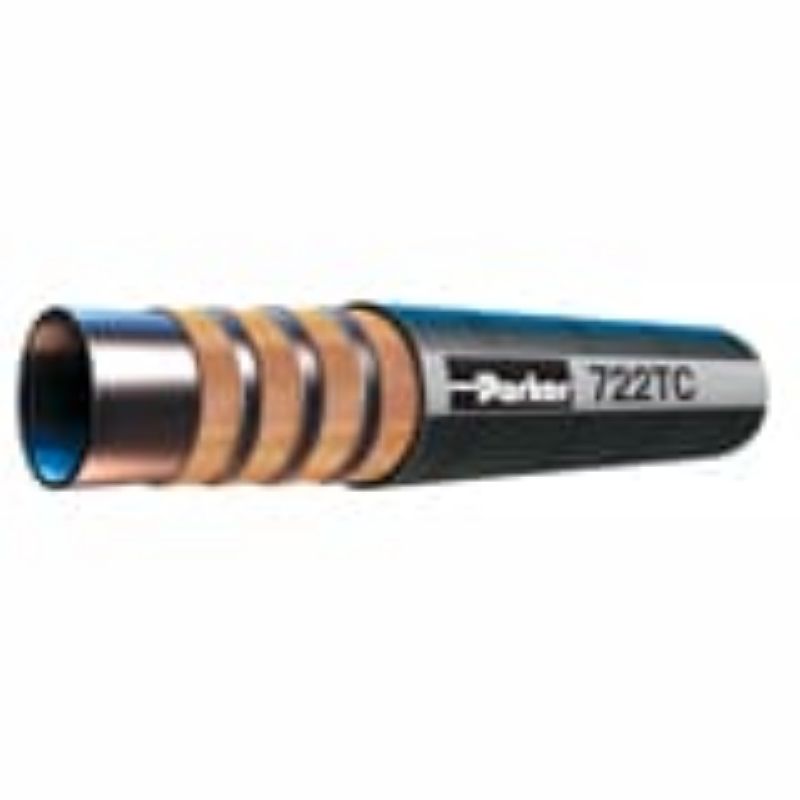

Parker 722TC-32 - Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose

Parker’s 722TC/ST hose is a hydraulic industry standard hose that has a pressure range of 2500-3000 PSI, with a synthetic rubber inner tube providing a wider range of fluid compatibility.

AFP Availability:	Quote Required
Partner Available:	454 In Stock

Brand Parker

Part No. 722TC-32

$92.90/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Inside Diameter	2 inch
Outside Diameter	66 mm	Weight	4.09 kg/m
Maximum Operating Pressure	17.5 MPa	Maximum Operating Temperature	257 °F
Division	Hose Products Division	Compatible Fitting	71 Series
Hose Inner Tube Material	Synthetic Rubber	Media	Petroleum Hydraulic Fluids
Hose Reinforcement Material	4 Spirals of Steel Wire	Minimum Bend Radius	12-1/2 inch
Specifications Met	EN 856, Type R12	Minimum Operating Temperature	-40 °C
Nominal Hose Inside Diameter	51 mm	Application	Lubricating Oils
Cover Material	MSHA Approved	Hose I.D. (size)	-32
Hose Cover Type	ToughCover

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
