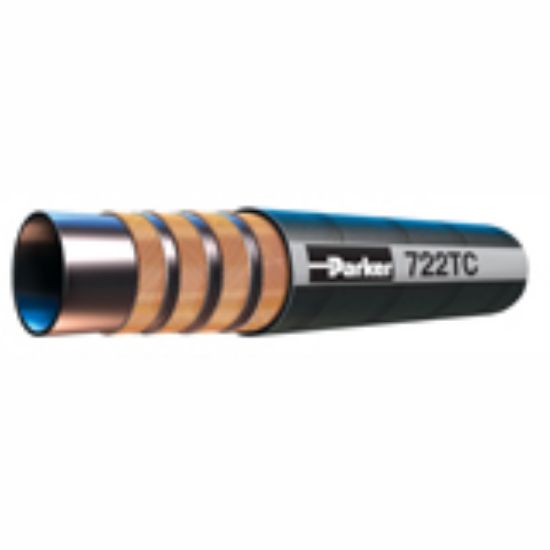

Parker 722TC-20 - Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose

Name: Parker 722TC-20 - Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose
SKU: 722TC-20
Price: 52.11 USD
Availability: InStock

Parker’s 722TC/ST hose is a hydraulic industry standard hose that has a pressure range of 2500-3000 PSI, with a synthetic rubber inner tube providing a wider range of fluid compatibility.

AFP Availability:

869 In Stock

Summerville, SC	293
North Chesterfield, VA	198
Mooresville, NC	86
Richmond, VA	65 (Pickup only)
Ashland, VA	52 (Pickup only)
East Knoxville, TN	50
Johnson City, TN	44 (Pickup only)
Jacksonville, FL	29
West Knoxville, TN	29
Fayetteville, NC	20

Partner Available:

2857 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 722TC-20

$52.11/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Inside Diameter	1-1/4 inch	Compatible Fitting	43 Series
Hose Inner Tube Material	Synthetic Rubber	Maximum Operating Temperature	125 °C
Media	Lubricants	Application	Lubricating Oils
Nominal Hose Inside Diameter	31 mm	Cover Material	MSHA Approved
Minimum Bend Radius	8-1/4 inch	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	3000 psi	Outside Diameter	46 mm
Weight	2.59 kg/m	Hose Reinforcement Material	4 Spirals of Steel Wire
Specifications Met	SAE J1942	Hose I.D. (size)	-20
Hose Cover Type	ToughCover

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
