Hydraulic Hose - 590TJ

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

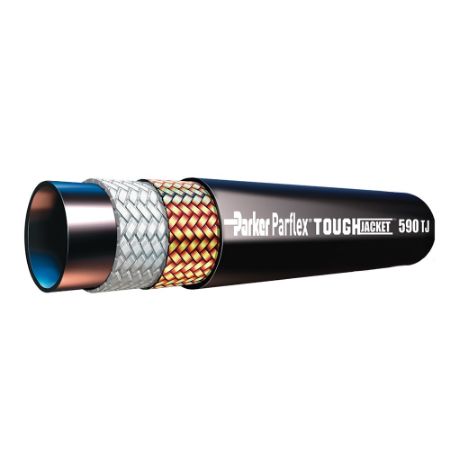

The TOUGHACKET™ 590TJ compact hydraulic hose from Parker Parflex is a flexible thermoplastic hose featuring the abrasion-resistant TOUGHJACKET cover. The 590TJ hose delivers low length change under pressure and consistent long lengths. Designed to withstand the strains of demanding use, the compact 590TJ hydraulic hose is the optimal solution for large-scale, heavy-duty applications, including construction equipment, agriculture equipment, transportation, and more. Parflex 590TJ is also light-weight for easier routing and handles temperatures from -40°F to +250°F.

Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
• Transportation

Features/Benefits:
• TOUGHJACKET Polyurethane cover for best abrasion resistance
• Low length change under pressure
• Consistent long lengths
• Smaller O.D. than rubber 100R16 hose for easier routing
• 23% to 42% lighter weight than rubber 100R2 hose
• Twin and multi-line constructions available

Applications:
• Construction Equipment
• Over-the-Sheave Installations
• Booms and Cable Tracks
• Machine Tools
• Hydrostatic Transmissions
• Refuse Vehicles
• Agriculture Machinery

Certifications/Compliance:
• MSHA compliant cover

Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Minimum Operating Temperature	Division	Size	Design Factor	Media	Inside Diameter	Cover Material	Compatible Fitting	Maximum Operating Temperature	Weight	Outside Diameter	Hose Cover Type	Maximum Operating Pressure	Application	Specifications Met	Hose Inner Tube Material	Hose Reinforcement Material	Product Style	Minimum Bend Radius	Hose I.D. (inch)	Standard Pack Qty (ft)	Hose Style
590TJ-4	Quote Required	881 In Stock	$6.15/foot	FT	-40 °C	Parflex Division	-4	4:1	Water	1/2 inch	Polyurethane	56 Series	121 °C	0.20 kg/m	12.5 mm	ToughJACKET™	35 MPa	Industrial Machinery	MSHA	Copolyester	Braid of High Tensile Steel Wire	Single Line	44.5 mm	1/4	500	Single
590TJ-6	398 In Stock	1870 In Stock	$6.34/foot	FT	-40 °C	Parflex Division	-6	4:1	Petroleum Hydraulic Fluids	10 mm	Polyurethane	56 Series	250 °F	0.29 kg/m	0.640 inch	ToughJACKET™	28 MPa	Agriculture Equipment	MSHA	Copolyester	Braid of High Tensile Steel Wire	Single Line	57.2 mm	3/8	500	Single
590TJ-8	Quote Required	1203 In Stock	$7.77/foot	FT	-40 °C	Parflex Division	-8	4:1	Water	1/2 inch	Polyurethane	56 Series	250 °F	0.24 lb/ft	19.3 mm	ToughJACKET™	3553 psi	Industrial Machinery	MSHA	Copolyester	Braid of High Tensile Steel Wire	Single Line	82.6 mm	1/2	400	Single
590TJ-8-8	Quote Required	273 In Stock	$20.54/foot	FT	-40 °C	Parflex Division	-8	4:1	Water	13 mm	Polyurethane	56 Series	121 °C	0.72 kg/m	1.520 inch	ToughJACKET™	24.5 MPa	Over-the-Sheave	MSHA	Copolyester	Braid of High Tensile Steel Wire	Twin-Line	82.6 mm	1/2	250	Twin-line
