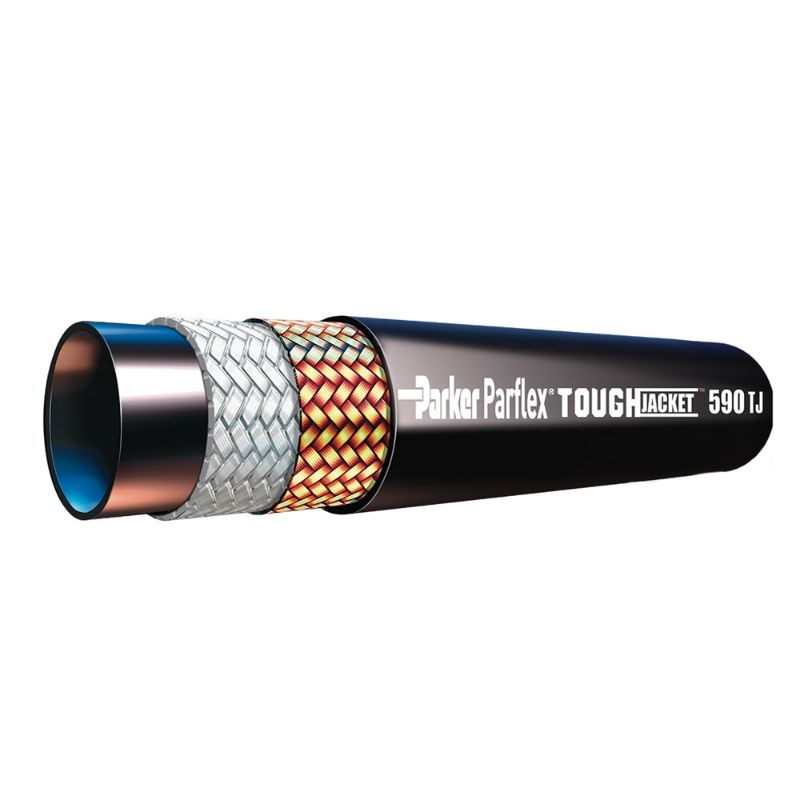

Picture of Parker 590TJ-4 - Hydraulic Hose - 590TJ

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 590TJ-4 - Hydraulic Hose - 590TJ

The TOUGHJACKET™ 590TJ compact hydraulic hose features working pressures from 5000-2000 psi, long continuous lengths (up to 500 feet) and is qualified to use with 56 Series Global Fittings. Exceptional abrasion resistance.
Availability:
Quote Required
Partner Available:577 In Stock
Brand Parker
Part No. 590TJ-4
$5.97
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTMinimum Operating Temperature-40 °C
DivisionParflex DivisionSize-4
Design Factor4:1MediaWater
Inside Diameter1/2 inchCover MaterialPolyurethane
Compatible Fitting56 SeriesMaximum Operating Temperature121 °C
Weight0.20 kg/mOutside Diameter12.5 mm
Hose Cover TypeToughJACKET™Maximum Operating Pressure35 MPa
ApplicationIndustrial MachinerySpecifications MetMSHA
Hose Inner Tube MaterialCopolyesterHose Reinforcement MaterialBraid of High Tensile Steel Wire
Product StyleSingle LineMinimum Bend Radius44.5 mm
Hose I.D. (inch)1/4Standard Pack Qty (ft)500
Hose StyleSingle
California Residents: Prop-65 Warning
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
