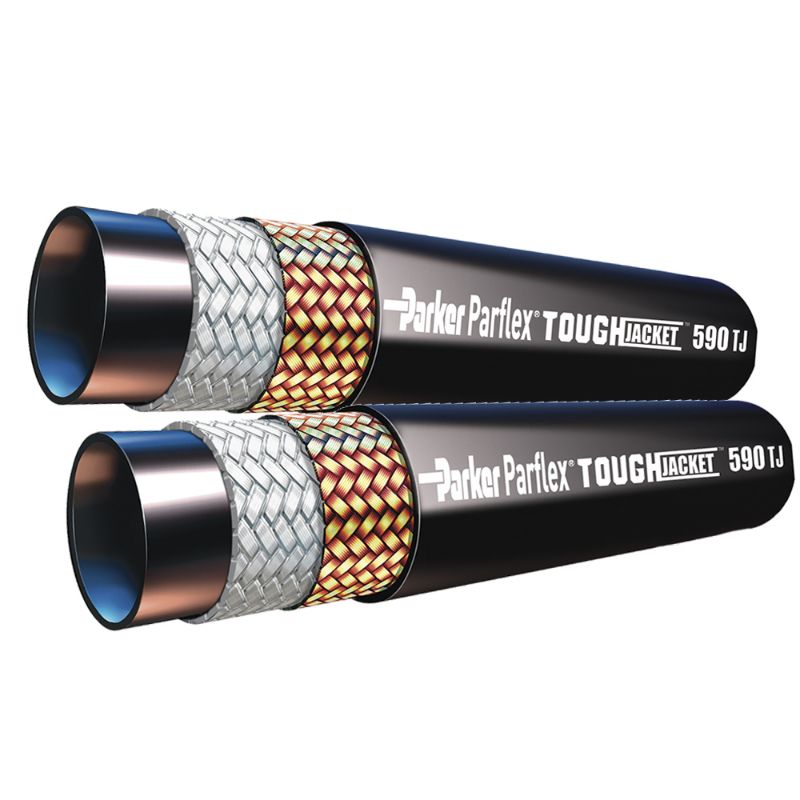

Parker 590TJ-8-8 - Hydraulic Hose - 590TJ

The TOUGHJACKET™ 590TJ compact hydraulic hose features working pressures from 5000-2000 psi, long continuous lengths (up to 500 feet) and is qualified to use with 56 Series Global Fittings. Exceptional abrasion resistance.

AFP Availability:	Quote Required
Partner Available:	80 In Stock

Brand Parker

Part No. 590TJ-8-8

$20.54/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Product Style	Twin-Line
Application	Over-the-Sheave	Minimum Operating Temperature	-40 °C
Cover Material	Polyurethane	Specifications Met	MSHA
Minimum Bend Radius	82.6 mm	Hose Reinforcement Material	Braid of High Tensile Steel Wire
Weight	0.72 kg/m	Maximum Operating Pressure	24.5 MPa
Outside Diameter	1.520 inch	Inside Diameter	13 mm
Maximum Operating Temperature	121 °C	Division	Parflex Division
Media	Water	Hose Cover Type	ToughJACKET™
Size	-8	Compatible Fitting	56 Series
Hose Inner Tube Material	Copolyester	Design Factor	4:1
Hose I.D. (inch)	1/2	Standard Pack Qty (ft)	250
Hose Style	Twin-line
