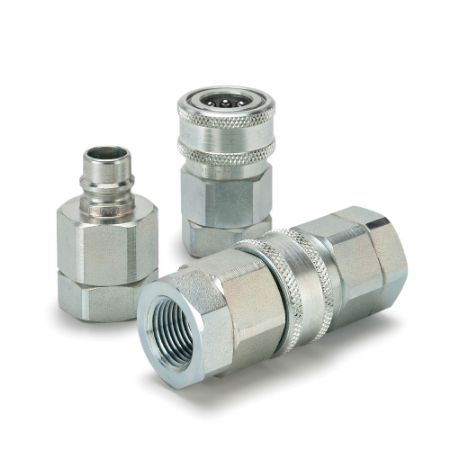

High Pressure, High Flow, Quick Connect Air Couplers - IH Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Snap-tite IH Series Couplers, up to 6,500 psi, connect with unvalved Snap-tite H Series Nipples to provide a single shut off connection.
Parker's Snap-tite IH Couplers have a cylindrical valve designed specifically for pneumatic, air applications. The valve provides 360 degree contact when connected with an unvalved / plain Snap-tite H Series Nipple. Couplers are available in a range of sizes and pressures up to 6,500 psi.
Technical Characteristics:
• Sizes: 1/4” – 3/4”
• Materials: Steel
• Port Ends: Female SAE, Female NPTF, Male SAE 37 degree Flare, Male NPT
• Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
Markets:
• Industrial
• Construction
Features/Benefits:
• High flow valves with minimal pressure drop for efficient performance
• Connects with Snap-tite H Series plain / unvalved nipples
• Optional sleeve-lock adds protection against accidental disconnection
Applications:
• Pneumatic tools with reciprocating, pulsating or rotary motion
• Compressed air lines
• High pressure, large volume air hand tools
Read More...Parker's Snap-tite IH Couplers have a cylindrical valve designed specifically for pneumatic, air applications. The valve provides 360 degree contact when connected with an unvalved / plain Snap-tite H Series Nipple. Couplers are available in a range of sizes and pressures up to 6,500 psi.
Technical Characteristics:
• Sizes: 1/4” – 3/4”
• Materials: Steel
• Port Ends: Female SAE, Female NPTF, Male SAE 37 degree Flare, Male NPT
• Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
Markets:
• Industrial
• Construction
Features/Benefits:
• High flow valves with minimal pressure drop for efficient performance
• Connects with Snap-tite H Series plain / unvalved nipples
• Optional sleeve-lock adds protection against accidental disconnection
Applications:
• Pneumatic tools with reciprocating, pulsating or rotary motion
• Compressed air lines
• High pressure, large volume air hand tools
| Action | Part No. | Availability | Partner Available | Price | UOM | Valve Type | Maximum Operating Pressure | Coupling Half | Minimum Operating Temperature | Application | Division | Lock Type | Seal Material | Maximum Operating Temperature | Body Material | Plating Type | Thread Style | Sleeve Type | Connection Thread Size (inch) | Connection Type | Body Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VIHC4-4FSL | Quote Required | $51.15/each | EA | Tubular | 6500 psi | Coupler | -40 °F | Air | Quick Coupling Division | Locking balls | Nitrile | 250 °F | Steel | Zinc with clear trivalent chromate | Female | Manual with sleeve lock | 1/4 - 18 | NPTF | 1/4 | ||
| VIHC8-8F | Quote Required | $52.82/each | EA | Tubular | 4000 psi | Coupler | -40 °F | Air | Quick Coupling Division | Locking balls | Nitrile | 250 °F | Steel | Zinc with clear trivalent chromate | Female | Manual | 1/2 - 14 | NPTF | 1/2 |
