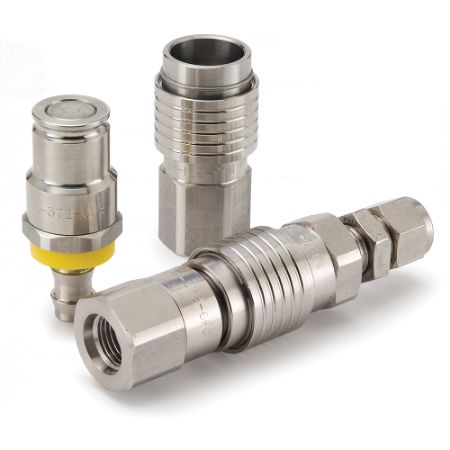

High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
NSS couplings deliver high flow rates with excellent flow vs pressure drop characteristics to maintain optimum system performance and efficiency. Ideal for high-tech industry cooling applications, couplers and nipples are 316 stainless steel with ethylene propylene seals. Their compact body size and guided alignment save time and frustration when connecting fluid lines in confined spaces.
Technical Characteristics:
• Sizes: 3/8” & 1/2”
• Materials: Stainless Steel
• Port Ends: Female straight thread ORB, Push-Lok® Hose barb, A-Lok, Bulkhead and Panel Mount
• Seal Options: EPDM
Markets:
• Liquid Cooling
• Thermal Management
• Data Centers
• Supercomputers
• Electronics
• Servers
• Rackable Server Systems
Features/Benefits:
• Non-spill valving ensures minimal fluid loss and low air inclusion
• Corrosion resistant stainless steel construction
• Easy push to connect operation with guided alignment
• High flow and compact size
Applications:
• Cooling Lines
• Chemical Transfer Lines
• High Purity Systems
•Lab equipment
Read More...Technical Characteristics:
• Sizes: 3/8” & 1/2”
• Materials: Stainless Steel
• Port Ends: Female straight thread ORB, Push-Lok® Hose barb, A-Lok, Bulkhead and Panel Mount
• Seal Options: EPDM
Markets:
• Liquid Cooling
• Thermal Management
• Data Centers
• Supercomputers
• Electronics
• Servers
• Rackable Server Systems
Features/Benefits:
• Non-spill valving ensures minimal fluid loss and low air inclusion
• Corrosion resistant stainless steel construction
• Easy push to connect operation with guided alignment
• High flow and compact size
Applications:
• Cooling Lines
• Chemical Transfer Lines
• High Purity Systems
•Lab equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Flow Rate | Division | Body Material | Seal Material | Maximum Operating Temperature | Product Type | Maximum Operating Pressure | Minimum Operating Temperature | Valve Type | Hex Size | Application | Connection Type | Body Size (inch) | Coupling Half | Hose I.D. | Connection Thread Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NSS-371-6BMA | Quote Required | 2 Limited Stock | TBD | EA | 10 | Quick Coupling Division | Stainless Steel | EPDM | 250 | Push-to-Connect | 2000 | -70 | Flat Face | 0.94 | Thermal Management | Female Thread - Bulkhead Mount | 3/8 | Female Coupler | NA | 3/8 A-Lok | |
| NSS-371-6FO | Quote Required | $33.37 | EA | 10 Gal/min | Quick Coupling Division | Stainless Steel | EPDM | 250 °F | Push-to-Connect | 2000 psi | -70 °F | Flat Face | 0.94 inch | Thermal Management | Female Thread | 3/8 | Female Coupler | NA | 9/16 - 18 UNF | ||
| NSS-371-6HB | Quote Required | TBD | 10 Gal/min | Quick Coupling Division | Stainless Steel | EPDM | 250 °F | Push-to-Connect | 2000 psi | -70 °F | Flat Face | 0.94 inch | Thermal Management | Hose Barb | 3/8 | Female Coupler | 3/8 | na | |||
| NSS-371-6HMA | Quote Required | TBD | 10 Gal/min | Quick Coupling Division | Stainless Steel | EPDM | 250 °F | Push-to-Connect | 2000 psi | -70 °F | Flat Face | 0.94 inch | Liquid Cooling | Female Thread - Panel Mount | 3/8 | Female Coupler | NA | 3/8 A-Lok | |||
| NSS-371-6MA | Quote Required | TBD | 10 Gal/min | Quick Coupling Division | Stainless Steel | EPDM | 250 °F | Push-to-Connect | 2000 psi | -70 °F | Flat Face | 0.69 inch | Data Centers | Female Thread | 3/8 | Female Coupler | NA | 3/8 A-Lok | |||
| NSS-371-8FO | Quote Required | TBD | 10 Gal/min | Quick Coupling Division | Stainless Steel | EPDM | 250 °F | Push-to-Connect | 2000 psi | -70 °F | Flat Face | 0.94 inch | Liquid Cooling | Female Thread | 3/8 | Female Coupler | NA | 3/4 - 16 UNF | |||
| NSS-371-8HB | Quote Required | TBD | 10 | Quick Coupling Division | Stainless Steel | EPDM | 250 | Push-to-Connect | 2000 | -70 | Flat Face | 0.94 | Thermal Management | Hose Barb | 3/8 | Female Coupler | 3/8 | na | |||
| NSS-371-8MA | Quote Required | TBD | 10 | Quick Coupling Division | Stainless Steel | EPDM | 250 | Push-to-Connect | 2000 | -70 | Flat Face | 0.88 | Thermal Management | Female Thread | 3/8 | Female Coupler | NA | 1/2 A-Lok | |||
| NSS-372-6BMA | Quote Required | TBD | EA | 10 Gal/min | Quick Coupling Division | Stainless Steel | EPDM | 250 °F | Push-to-Connect | 2000 psi | -70 °F | Flat Face | 0.94 inch | Liquid Cooling | Female Thread - Bulkhead Mount | 3/8 | Male Nipple | NA | 3/8 A-Lok | ||
| NSS-372-6FO | Quote Required | 60 In Stock | $18.86 | EA | 10 Gal/min | Quick Coupling Division | Stainless Steel | EPDM | 250 °F | Push-to-Connect | 2000 psi | -70 °F | Flat Face | 0.94 inch | Liquid Cooling | Female Thread | 3/8 | Male Nipple | NA | 9/16 18 UNF | |
| NSS-372-6HMA | Quote Required | $156.62 | EA | 10 | Quick Coupling Division | Stainless Steel | EPDM | 250 | Push-to-Connect | 2000 | -70 | Flat Face | 0.94 | Thermal Management | Female Thread - Panel Mount | 3/8 | Male Nipple | NA | 3/8 A-Lok | ||
| NSS-372-6MA | Quote Required | TBD | 10 Gal/min | Quick Coupling Division | Stainless Steel | EPDM | 250 °F | Push-to-Connect | 2000 psi | -70 °F | Flat Face | 0.94 inch | Liquid Cooling | Female Thread | 3/8 | Male Nipple | NA | 3/8 A-Lok | |||
| NSS-372-8BMA | Quote Required | TBD | 10 | Quick Coupling Division | Stainless Steel | EPDM | 250 | Push-to-Connect | 2000 | -70 | Flat Face | 1.25 | Thermal Management | Female Thread - Bulkhead Mount | 3/8 | Male Nipple | NA | 1/2 A-Lok | |||
| NSS-372-8FO | Quote Required | TBD | 10 Gal/min | Quick Coupling Division | Stainless Steel | EPDM | 250 °F | Push-to-Connect | 2000 psi | -70 °F | Flat Face | 1.02 inch | Semiconductor | Female Thread | 3/8 | Male Nipple | NA | 3/4 - 16 UNF | |||
| NSS-372-8MA | Quote Required | TBD | 10 | Quick Coupling Division | Stainless Steel | EPDM | 250 | Push-to-Connect | 2000 | -70 | Flat Face | 0.94 | Thermal Management | Female Thread | 3/8 | Male Nipple | NA | 1/2 A-Lok | |||
| NSS-501-10FO | Quote Required | TBD | 12 | Quick Coupling Division | Stainless Steel | EPDM | 250.0 | Push-to-Connect | 300 | -70.0 | Flat Face | 1.25 | Thermal Management | Female Thread | 1/2 | Female Coupler | NA | 7/8 - 14 UNF | |||
| NSS-501-12BMA | Quote Required | TBD | 12 | Quick Coupling Division | Stainless Steel | EPDM | 250.0 | Push-to-Connect | 300 | -70.0 | Flat Face | 1.25 | Thermal Management | Female Thread - Bulkhead Mount | 1/2 | Female Coupler | NA | 3/4 A-Lok | |||
| NSS-501-12FO | Quote Required | TBD | 12 | Quick Coupling Division | Stainless Steel | EPDM | 250.0 | Push-to-Connect | 300 | -70.0 | Flat Face | 1.25 | Thermal Management | Female Thread | 1/2 | Female Coupler | NA | 1 1/16 - 12 UNF | |||
| NSS-501-12HB | Quote Required | TBD | 12 Gal/min | Quick Coupling Division | Stainless Steel | EPDM | 250.0 °F | Push-to-Connect | 300 psi | -70.0 °F | Flat Face | 1.25 inch | Liquid Cooling | Hose Barb | 1/2 | Female Coupler | 3/4 | na | |||
| NSS-501-12HMA | Quote Required | TBD | 12 | Quick Coupling Division | Stainless Steel | EPDM | 250.0 | Push-to-Connect | 300 | -70.0 | Flat Face | 1.25 | Thermal Management | Female Thread - Panel Mount | 1/2 | Female Coupler | NA | 3/4 A-Lok |
