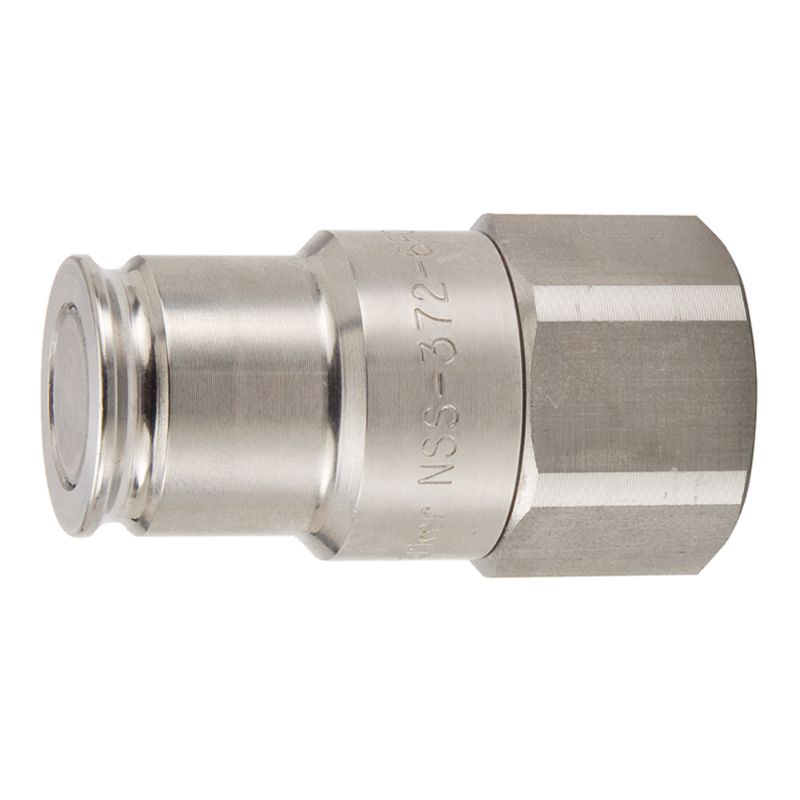

Parker NSS-372-6FO - High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.

Availability:	Quote Required
Partner Available:	60 In Stock

Brand Parker

Part No. NSS-372-6FO

$18.86

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	10 Gal/min
Connection Type	Female Thread	Product Type	Push-to-Connect
Maximum Operating Pressure	2000 psi	Maximum Operating Temperature	250 °F
Body Material	Stainless Steel	Application	Liquid Cooling
Hex Size	0.94 inch	Valve Type	Flat Face
Seal Material	EPDM	Minimum Operating Temperature	-70 °F
Division	Quick Coupling Division	Body Size (inch)	3/8
Hose I.D.	NA	Coupling Half	Male Nipple
Connection Thread Size (inch)	9/16 18 UNF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
