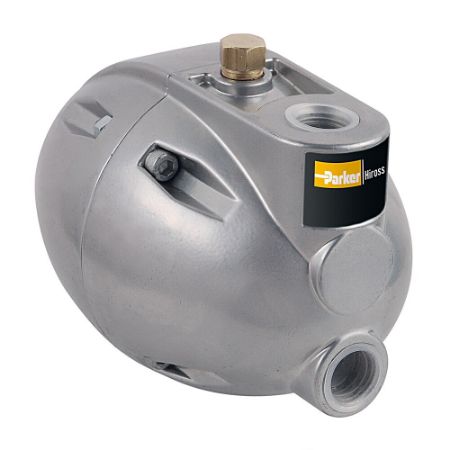

HDF Series Zero Loss Mechanical Float Condensate Drain
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
HDF series drains are compact and highly reliable automatic float controlled condensate drains for industrial compressed air and biogas treatment applications. Because the drain never runs completely dry, no air/gas is lost during the discharge process. HDF series condensate drains therefore reduce the waste of compressed air/gas which has a positive effect on the efficiency of the whole system.
Benefits:
• Zero air/gas loss
• Improved reliability due to large cross section outlet valve opening which minimizes the chance of blockage
• A low velocity condensate outlet ensures that no emulsion is created and supports installation of a static oil/water separator
• No need for electrical wiring, as no power supply is required
• Manual drain valve for discharge and operational check fitted as standard
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
Read More...Benefits:
• Zero air/gas loss
• Improved reliability due to large cross section outlet valve opening which minimizes the chance of blockage
• A low velocity condensate outlet ensures that no emulsion is created and supports installation of a static oil/water separator
• No need for electrical wiring, as no power supply is required
• Manual drain valve for discharge and operational check fitted as standard
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
| Action | Part No. | Availability | Partner Available | Price | UOM | Product Series | Materials of Construction | Division | Width | Technology | Product Type | Operating Temperature | Depth | Weight | Brand | Industry | Electrical Requirements | Height | Division | Product Style | Application | Operating Pressure | Port Size | Options | Flow Rate | Connection Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDF120NPTA | Quote Required | $267.30/each | EA | HDF | Body: Aluminium<br/>Float: Plastic<br/>Lever: Plastic | Gas Separation and Filtration Division EMEA | 6.1 inch | Filtration | Condensate Drain | 2 to 60 °C | 4.3 inch | 2 lb | Parker | Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals<br/>Biogas | Not Applicable | 4.4 inch | Gas Separation and Filtration Division EMEA | External Float Drain | Compressed Air and Biogas Applications | 1-16 barg (15-232 psig) | Inlet: ½" / Outlet: ½" | Air Vent | 5400 m³/h (3175 cfm) | NPT |
