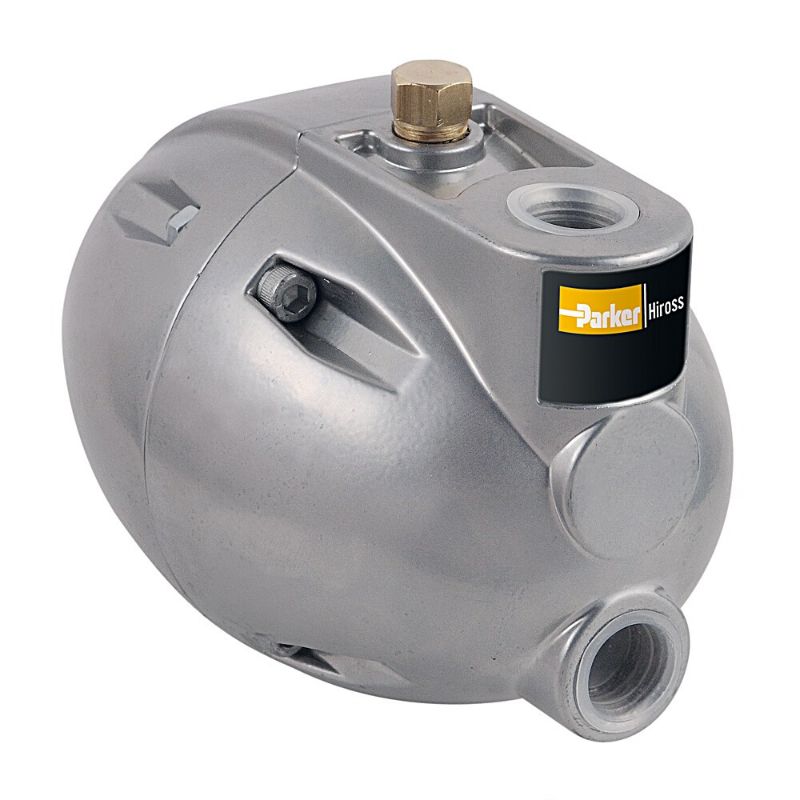

Parker HDF120NPTA - HDF Series Zero Loss Mechanical Float Condensate Drain

Zero loss mechanical float condensate drains for industrial compressed air and biogas treatment applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HDF120NPTA

$267.30/each

Products specifications

Attribute name	Attribute value
UOM	EA	Height	4.4 inch
Operating Temperature	2 to 60 °C	Division	Gas Separation and Filtration Division EMEA
Technology	Filtration	Depth	4.3 inch
Weight	2 lb	Brand	Parker
Width	6.1 inch	Materials of Construction	Body: Aluminium<br/>Float: Plastic<br/>Lever: Plastic
Product Series	HDF	Industry	Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals<br/>Biogas
Product Type	Condensate Drain	Product Style	External Float Drain
Division	Gas Separation and Filtration Division EMEA	Application	Compressed Air and Biogas Applications
Electrical Requirements	Not Applicable	Operating Pressure	1-16 barg (15-232 psig)
Port Size	Inlet: ½" / Outlet: ½"	Options	Air Vent
Flow Rate	5400 m³/h (3175 cfm)	Connection Type	NPT
