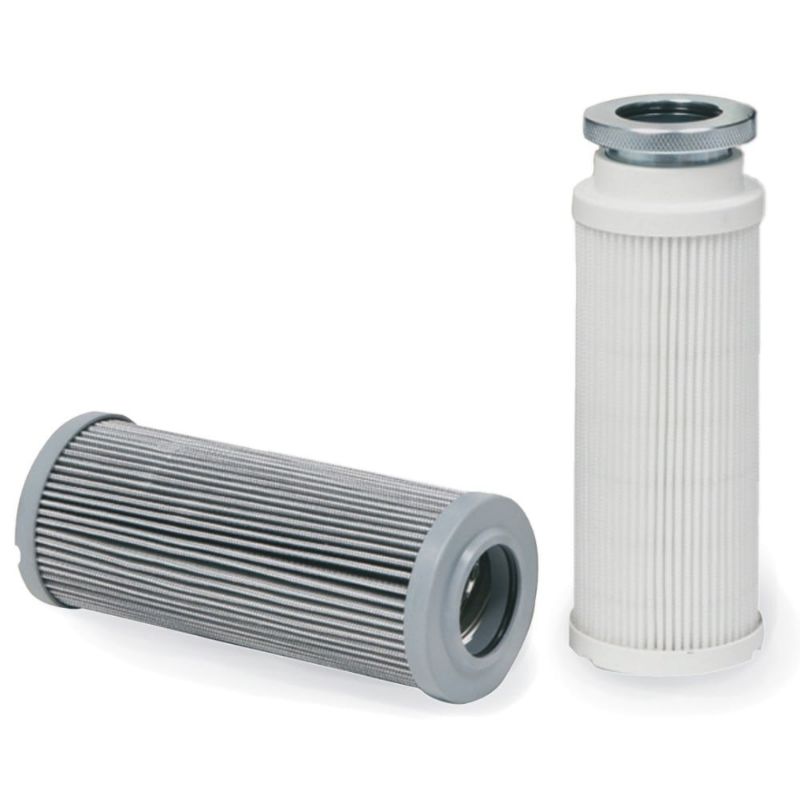

Parker 938966Q - Replacement Elements - 45M Series

The 45M-Series elements are available as Ecoglass version without inner core and as conventional Microglass version.
These elements have a Multi-layered design with the latest in filter media technology for high capacity and efficiency.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 938966Q

$253.54

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Brand	Parker	Division	Hydraulic & Industrial Process Filtration Division EMEA
Filter Material	Microglass III<br/>Ecoglass III	Operating Temperature	-40 to 100 °C
Technology	Filtration	For Fluid Type	Mineral and vegetable oils and some synthetic oils
Product Type	Filter Element	Industry	Industrial Manufacturing Equipment<br/>Off-Road Machinery
Maximum Flow Rate	260 L/min	Operating Pressure	up to 40 bar
Application	Hydraulic Filtration	Maximum Pressure Differential	20 bar (ISO 2941)
Product Series	45M	Diameter	80 mm
Vessel Size	Length 2	Length	208 mm
Seal Material	Nitrile	Options	Standard
Micron Rating	10 µm	Filter Element	10Q Microglass *

Product resources

Literature and Reference Materials

BROCHURE-45M Series (PDF)
