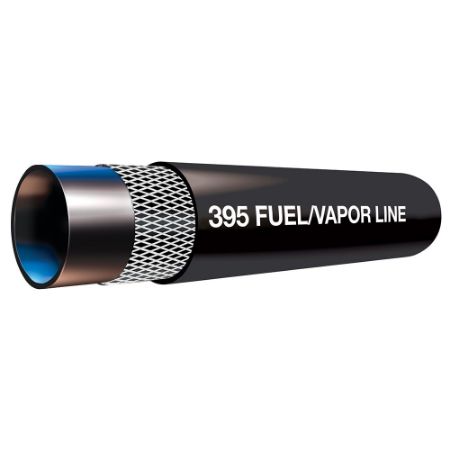

Fuel Line/Vapor Emission Hose, Series 395
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 395 Fuel Line/Vapor Emission Hose provides excellent service across a wide variety of fuels and multiple engine applications. The all-rubber construction is flexible for easy routing and installation, and the hose is qualified with permanent crimp couplings for a safe and secure connection. The cover resists oil and high temperatures common to engine compartments, providing maximum performance in challenging applications.
Markets:
• Agriculture
• Construction
• General Industrial
• Transportation
Features/Benefits:
• Tube: Black nitrile for fuel resistance to 257°F.
• Reinforcement: Multiple textile plies for strength and kink resistance.
• Cover: Black chloroprene abrasion, heat and oil resistance.
• Couplings: Qualified with crimp couplings for a durable, safe and secure connection.
Applications:
- media
• Biodiesel (to B20 in dedicated and non-dedicated service)
• Diesel
• Ethanol
• Gasoline
• Oil
- settings
• Agricultural equipment
• Buses
• Construction equipment
• Off-road equipment
Industry Standards:
• SAE 30R7
• Do not use in marine fuel applications.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Minimum Operating Temperature | Weight | Package Type | Maximum Operating Pressure | Outside Diameter | Cover Color | Minimum Bend Radius | Cover Structure | Inside Diameter | Hose Reinforcement Material | Vacuum Pressure Rating | Maximum Operating Temperature | Media | Application | Cover Material | Length per Package | Specifications Met | Hose Inner Tube Material | Hose I.D. (inch) | Maximum Working Pressure (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 39550 | 109 In Stock | 5751 In Stock | $1.84 | FT | Hose Products Division | -40 °F | 0.05 kg | Coil | 3.4 bar | 12.7 mm | Black | 50.8 mm | Smooth | 6.4 mm | 2 Plies of Textile | 24 Inch-Hg | 257 °F | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | Specialty | Chloroprene Rubber (CR) | 250 ft | SAE 30R7 | Nitrile | 1/4 | 50 | |
| 39551 | Quote Required | 2958 In Stock | $1.93 | FT | Hose Products Division | -40 °F | 0.05 kg | Coil | 50 psi | 14.3 mm | Black | 3 inch | Smooth | 5/16 inch | 2 Plies of Textile | 24 Inch-Hg | 125 °C | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | Specialty | Chloroprene Rubber (CR) | 250 ft | SAE 30R7 | Nitrile | 5/16 | 50 | |
| 39552 | 48 In Stock | 2330 In Stock | $2.02 | FT | Hose Products Division | -40 °C | 0.06 kg | Coil | 50 psi | 0.625 inch | Black | 3.5 inch | Smooth | 3/8 inch | 2 Plies of Textile | 24 Inch-Hg | 125 °C | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | Specialty | Chloroprene Rubber (CR) | 250 ft | SAE 30R7 | Nitrile | 3/8 | 50 | |
| 39553 | Quote Required | 1484 In Stock | $3.24 | EA | Hose Products Division | -40 °F | 0.03 kg | Coil | 75 psi | 10.3 mm | Black | 2 inch | Smooth | 3/16 inch | 2 Plies of Textile | 24 Inch-Hg | 257 °F | Natural Gas | Specialty | Chloroprene Rubber (CR) | 250 ft | SAE 30R7 | Nitrile | 3/16 | 75 | |
| 39554 | Quote Required | TBD | Hose Products Division | -40 °C | 0.17 lb | Coil | 35 psi | 19.8 mm | Black | 4 inch | Smooth | 1/2 inch | 2 Plies of Textile | 10 Inch-Hg | 257 °F | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | Specialty | Chloroprene Rubber (CR) | 250 ft | SAE 30R7 | Nitrile | 1/2 | 35 |
