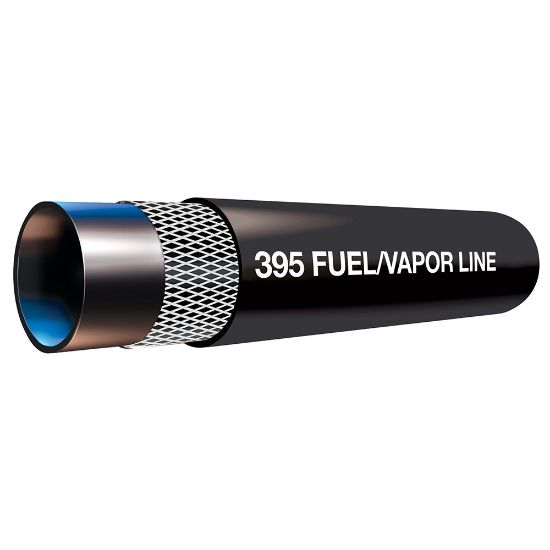

Picture of Parker 39550 - Fuel Line/Vapor Emission Hose, Series 395

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 39550 - Fuel Line/Vapor Emission Hose, Series 395

Fuel Line/Vapor Emission Hose is designed for engine fuel supply and vapor emission containment in applications to 257°F and 75 psi, Series 395
AFP Availability:
107 In Stock
Fayetteville, NC107
Partner Available:4597 In Stock
Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
Brand Parker
Part No. 39550
$1.93/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTOutside Diameter12.7 mm
Vacuum Pressure Rating24 Inch-HgInside Diameter6.4 mm
Cover ColorBlackDivisionHose Products Division
Minimum Bend Radius50.8 mmLength per Package250 ft
Hose Reinforcement Material2 Plies of TextileSpecifications MetSAE 30R7
Cover StructureSmoothWeight0.05 kg
Maximum Operating Pressure3.4 barMinimum Operating Temperature-40 °F
ApplicationSpecialtyCover MaterialChloroprene Rubber (CR)
Maximum Operating Temperature257 °FMediaChemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.
Hose Inner Tube MaterialNitrilePackage TypeCoil
Hose I.D. (inch)1/4Maximum Working Pressure (psi)50
