Flo-Pac® FP Pleated Cellulose Liquid Filter Cartridge

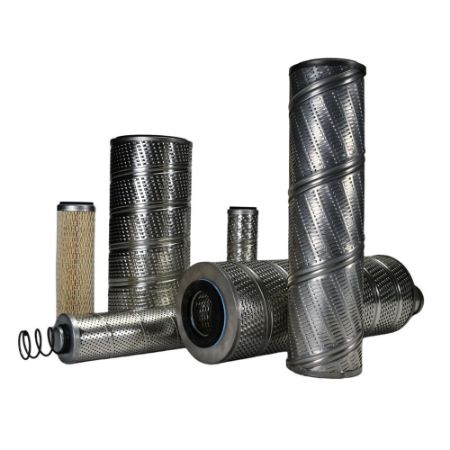

Picture for category Flo-Pac® FP Pleated Cellulose Liquid Filter Cartridge

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flo-Pac® pleated cellulose filter cartridges are an ideal solution for process fluid filtration needs in oils, fuels, coolants and water. They feature premium phenolic-impregnated cellulosic filter media and available in common industry sizes.

Features/Benefits
• Pleated cellulosic media provides high flow capacity at low pressure drop
• Media is phenolic resin impregnated and heat cured to provide strength
• High strength spiral core withstands pressure surges to 100psid
• Suitable for operating temperatures to 250°F (121°C)
• Outer sleeve or metal canbody protects the media from damage
• ETP (Electro-tin-plated) steel metal components for both aqueous and oil-based applications
• Buna-N gaskets are standard, other materials are available
• Available in a variety of sizes and configurations to fit most vessels


Applications
• Water Soluble Filtration
• Coolant Filtration
• Quench Oil Filtration
• Fuel Filtration
• Lubricating Oil Filtration
• Hydraulic Oil Filtration
• EDM Dielectric Filtration
• Rolling Mill Oil Filtration
• Processing Liquid Filtration
• Gasoline Filtration
Read More...
View as Grid List
Sort by
Display per page
ActionPart No.AvailabilityPartner AvailablePriceApplicationMaximum Operating TemperatureBrandDivisionIndustrypH RangeTechnologyProduct TypeCore MaterialFlow DirectionProduct SeriesFilter MaterialEnd Cap MaterialQuantity per BoxDivisionFilter ConstructionMaximum Pressure DifferentialChangeout Pressure DifferentialModel NumberBody MaterialMicron RatingSeal MaterialCartridge LengthEnd Cap ConfigurationNominal Inside DiameterNominal Outside Diameter
103075
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-0.5Polypropylene Net0.5Buna-N9.625DOE12.5
103076
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-0.5MTin-Plated Steel0.5Buna-N9.625DOE12.5
103079
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-0.5VPolypropylene Net0.5Viton9.625DOE12.5
103080
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-0.5VMTin-Plated Steel0.5Viton9.625DOE12.5
103081
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-1Polypropylene Net1Buna-N9.625DOE12.5
103082
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-10Polypropylene Net10Buna-N9.625DOE12.5
103085
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-10MTin-Plated Steel10Buna-N9.625DOE12.5
103088
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-10VPolypropylene Net10Viton9.625DOE12.5
103089
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-10VMTin-Plated Steel10Viton9.625DOE12.5
103091
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-1MTin-Plated Steel1Buna-N9.625DOE12.5
103093
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-1VPolypropylene Net1Viton9.625DOE12.5
103094
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-1VMTin-Plated Steel1Viton9.625DOE12.5
103096
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-20Polypropylene Net20Buna-N9.625DOE12.5
103099
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-20MTin-Plated Steel20Buna-N9.625DOE12.5
103101
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-20VPolypropylene Net20Viton9.625DOE12.5
103102
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-30Polypropylene Net30Buna-N9.625DOE12.5
103105
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-30MTin-Plated Steel30Buna-N9.625DOE12.5
103108
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-30VMTin-Plated Steel30Viton9.625DOE12.5
103109
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-5Polypropylene Net5Buna-N9.625DOE12.5
103112
Quote Required
Quote Required
TBD
Liquid Particulate Filtration250 FParkerIdustrial Process Filtration DivisionOil and Gas5-9FiltrationFilter CartridgeTin-Plated SteelOutside-to-insideFPPhenolic Impregnated CelluloseTin-Plated Steel24Industrial Process Filtration DivisionPleated75 PSID35 psidELMT FP310-5MTin-Plated Steel5Buna-N9.625DOE12.5
