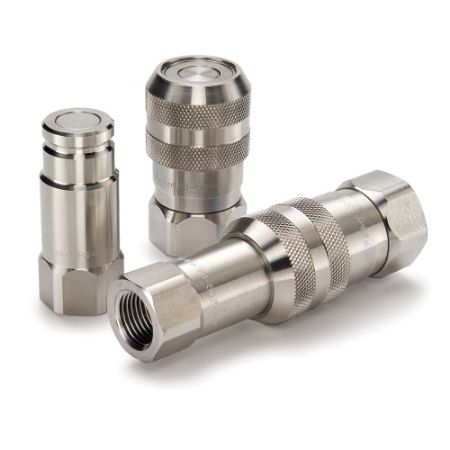

Flat Face, Chemical Compatible Quick Couplings - FS Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
FS Series Hydraulic Couplers (2000 psi), connect with FS Series Nipples.
Parker's FS Series are stainless steel non-spill, flat face hydraulic couplings are designed to minimize spillage and air inclusion when connecting or disconnecting to result in minimal environmental contamination. These quick couplings are ideal for closed system transfer and dispensing of chemicals and other fluids. FS quick connect fittings are available in a range of sizes.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Materials: 316 Stainless Steel
• Port Ends: Male NPT, Female NPTF, Female UNF
• Seal Options: Fluorocarbon, Ethylene Propylene, Neoprene
Markets:
• Chemical processing and handling
• Food processing
• Corrosive fluid handling
• Agriculture
Features/Benefits:
• Push-to-connect operation makes connection easy with one hand
• Corrosion resistant 316 stainless steel material
• Fluorocarbon seals are compatible with many chemicals
• Non-spill, Flat Face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
• Flat Face valves minimize the amount of air that can enter the system when connecting fluid lines
Applications:
• Chemical dispensing systems
• Chemical processing
• Food processing
• Corrosive media transfer
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Temperature | Division | Valve Type | Hex Size | Product Type | Flow Rate | Seal Material | Application | Minimum Operating Temperature | Maximum Operating Pressure | Body Material | Connection Type | Coupling Half | Body Size (inch) | Connection Thread Size (inch) | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FS-1001-16FB | Quote Required | TBD | 400 | Quick Coupling Division | Non-spill | 1.87 | Push to Connect | 50 | Fluorocarbon | Fluid and chemical transfer | -15 | 2000 | 316 Stainless Steel | Female BSPP | Female Coupler | 1 | 1 - 11 1/2 | ||||
| FS-1001-16FO | Quote Required | TBD | 400 °F | Quick Coupling Division | Non-spill | 1.87 inch | Push to Connect | 50 Gal/min | Fluorocarbon | Fluid and chemical transfer | -15 °F | 2000 psi | 316 Stainless Steel | Female UNF | Female Coupler | 1 | 1 5/16 - 12 | ||||
| FS-1001-16FP | Quote Required | 7 In Stock | $1,188.59 | EA | 400 °F | Quick Coupling Division | Non-spill | 1.87 inch | Push to Connect | 50 Gal/min | Fluorocarbon | Fluid Transfer | -15 °F | 2000 psi | Stainless Steel 316 | Female NPT | Female Coupler | 1 | 1 - 11 1/2 | ||
| FS-1001-16FP-E5 | Quote Required | $1,410.30 | EA | Quick Coupling Division | Stainless Steel | Female NPT | Female Coupler | 1 | 1 - 11 1/2 | ||||||||||||
| FS-1002-16FB | Quote Required | TBD | 400 °F | Quick Coupling Division | Non-spill | 1.87 inch | Push to Connect | 50 Gal/min | Fluorocarbon | Fluid and chemical transfer | -15 °F | 2000 psi | 316 Stainless Steel | Female BSPP | Male Nipple | 1 | 1 - 11 1/2 | ||||
| FS-1002-16FO | Quote Required | TBD | 400 °F | Quick Coupling Division | Non-spill | 1.87 inch | Push to Connect | 50 Gal/min | Fluorocarbon | Fluid and chemical transfer | -15 °F | 2000 psi | 316 Stainless Steel | Female UNF | Male Nipple | 1 | 1 5/16 - 12 | ||||
| FS-1002-16FP | Quote Required | 4 In Stock | $419.06 | EA | 400 °F | Quick Coupling Division | Non-spill | 1.87 inch | Push to Connect | 50 Gal/min | Fluorocarbon | Fluid and chemical transfer | -15 °F | 2000 psi | 316 Stainless Steel | Female NPT | Male Nipple | 1 | 1 - 11 1/2 | ||
| FS-1002-16FP-E5 | Quote Required | TBD | 300 °F | Quick Coupling Division | Non-spill | 1.87 inch | Push to Connect | 50 Gal/min | Ethylene Propylene | Fluid Transfer | -65 °F | 2000 psi | Stainless Steel 316 | Female NPT | Male Nipple | 1 | 1 - 11 1/2 | ||||
| FS-251-4FB | Quote Required | TBD | 400 °F | Quick Coupling Division | Non-spill | 1 inch | Push to Connect | 3 Gal/min | Fluorocarbon | Fluid Transfer | -15 °F | 2000 psi | Stainless Steel 316 | Female BSPP | Female Coupler | 1/4 | 1/4 - 18 | ||||
| FS-251-4FP | Quote Required | 3 In Stock | $859.19 | EA | 400 °F | Quick Coupling Division | Non-spill | 1 inch | Push to Connect | 3 Gal/min | Fluorocarbon | Chemical Transfer | -15 °F | 2000 psi | Stainless Steel 316 | Female NPT | Female Coupler | 1/4 | 1/4 - 18 | 0.05341726618705036 lb | |
| FS-251-4MP | Quote Required | 62 In Stock | $370.49 | EA | 400 °F | Quick Coupling Division | Non-spill | 1 inch | Push to Connect | 3 Gal/min | Ethylene Propylene | Fluid Transfer | -65 °F | 2000 psi | Stainless Steel 316 | Male NPTF | Female Coupler | 1/4 | 1/4 - 18 | ||
| FS-251-4MP-E5 | Quote Required | TBD | Quick Coupling Division | Stainless Steel | Male NPTF | Female Coupler | 1/4 | 1/4 - 18 | |||||||||||||
| FS-251-4MZ | Quote Required | TBD | 400 °F | Quick Coupling Division | Non-spill | Push to Connect | 3 Gal/min | Fluorocarbon | Fluid and chemical transfer | -15 °F | 2000 psi | 316 Stainless Steel | Female CPI Flareless Tube Fitting | Female Coupler | 1/4 | -4 | |||||
| FS-251-6FO | Quote Required | TBD | 400 °F | Quick Coupling Division | Non-spill | 1 inch | Push to Connect | 3 Gal/min | Fluorocarbon | Chemical Transfer | -15 °F | 2000 psi | Stainless Steel 316 | Female UNF | Female Coupler | 1/4 | 9/16 - 18 | 0.05341726618705036 lb | |||
| FS-252-4FB | Quote Required | TBD | 400 °F | Quick Coupling Division | Non-spill | 1 inch | Push to Connect | 3 Gal/min | Fluorocarbon | Fluid Transfer | -15 °F | 2000 psi | Stainless Steel 316 | Female BSPP | Male Nipple | 1/4 | 1/4 - 18 | ||||
| FS-252-4FP | 2 Limited Stock | 7 In Stock | $154.74 | EA | 300 °F | Quick Coupling Division | Non-spill | 1 inch | Push to Connect | 3 Gal/min | Ethylene Propylene | Chemical Transfer | -15 °F | 2000 psi | Stainless Steel 316 | Female NPT | Male Nipple | 1/4 | 1/4 - 18 | 0.02670863309352518 lb | |
| FS-252-4FP-E5 | Quote Required | $228.66 | EA | Quick Coupling Division | Stainless Steel | Female NPT | Male Nipple | 1/4 | 1/4 - 18 | ||||||||||||
| FS-252-4MP | Quote Required | TBD | 400 °F | Quick Coupling Division | Non-spill | 1 inch | Push to Connect | 3 Gal/min | Fluorocarbon | Fluid Transfer | -15 °F | 2000 psi | Stainless Steel 316 | Male NPTF | Male Nipple | 1/4 | 1/4 - 18 | ||||
| FS-252-4MZ | Quote Required | TBD | 400 °F | Quick Coupling Division | Non-spill | Push to Connect | 3 Gal/min | Fluorocarbon | Fluid Transfer | -15 °F | 2000 psi | Stainless Steel 316 | Female CPI Flareless Tube Fitting | Male Nipple | 1/4 | -4 | |||||
| FS-252-6FO | Quote Required | TBD | 300 °F | Quick Coupling Division | Non-spill | 1 inch | Push to Connect | 3 Gal/min | Fluorocarbon | Chemical Transfer | -65 °F | 2000 psi | Stainless Steel 316 | Female UNF | Male Nipple | 1/4 | 9/16 - 18 | 0.02670863309352518 lb |
