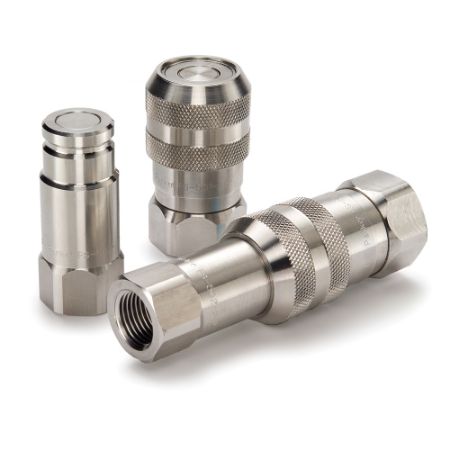

Flat Face, Chemical Compatible Quick Couplings - FS Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
FS Series Hydraulic Couplers (2000 psi), connect with FS Series Nipples.
Parker's FS Series are stainless steel non-spill, flat face hydraulic couplings are designed to minimize spillage and air inclusion when connecting or disconnecting to result in minimal environmental contamination. These quick couplings are ideal for closed system transfer and dispensing of chemicals and other fluids. FS quick connect fittings are available in a range of sizes.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Materials: 316 Stainless Steel
• Port Ends: Male NPT, Female NPTF, Female UNF
• Seal Options: Fluorocarbon, Ethylene Propylene, Neoprene
Markets:
• Chemical processing and handling
• Food processing
• Corrosive fluid handling
• Agriculture
Features/Benefits:
• Push-to-connect operation makes connection easy with one hand
• Corrosion resistant 316 stainless steel material
• Fluorocarbon seals are compatible with many chemicals
• Non-spill, Flat Face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
• Flat Face valves minimize the amount of air that can enter the system when connecting fluid lines
Applications:
• Chemical dispensing systems
• Chemical processing
• Food processing
• Corrosive media transfer
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Temperature | Division | Minimum Operating Temperature | Seal Material | Application | Body Material | Maximum Operating Pressure | Valve Type | Hex Size | Product Type | Flow Rate | Connection Thread Size (inch) | Body Size (inch) | Coupling Half | Connection Type | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FS-1001-16FP | Quote Required | 6 In Stock | $1,224.25/each | EA | 400 °F | Quick Coupling Division | -15 °F | Fluorocarbon | Fluid Transfer | Stainless Steel 316 | 2000 psi | Non-spill | 1.87 inch | Push to Connect | 50 Gal/min | 1 - 11 1/2 | 1 | Female Coupler | Female NPT | ||
| FS-1001-16FP-E5 | Quote Required | $1,452.61/each | EA | Quick Coupling Division | Stainless Steel | 1 - 11 1/2 | 1 | Female Coupler | Female NPT | ||||||||||||
| FS-1002-16FP | Quote Required | 1 Limited Stock | $431.64/each | EA | 400 °F | Quick Coupling Division | -15 °F | Fluorocarbon | Fluid and chemical transfer | 316 Stainless Steel | 2000 psi | Non-spill | 1.87 inch | Push to Connect | 50 Gal/min | 1 - 11 1/2 | 1 | Male Nipple | Female NPT | ||
| FS-251-4FP | Quote Required | $884.97/each | EA | 400 °F | Quick Coupling Division | -15 °F | Fluorocarbon | Chemical Transfer | Stainless Steel 316 | 2000 psi | Non-spill | 1 inch | Push to Connect | 3 Gal/min | 1/4 - 18 | 1/4 | Female Coupler | Female NPT | 0.05341726618705036 lb | ||
| FS-251-4MP | Quote Required | 40 In Stock | $381.60/each | EA | 400 °F | Quick Coupling Division | -65 °F | Ethylene Propylene | Fluid Transfer | Stainless Steel 316 | 2000 psi | Non-spill | 1 inch | Push to Connect | 3 Gal/min | 1/4 - 18 | 1/4 | Female Coupler | Male NPTF | ||
| FS-252-4FP | 2 Limited Stock | 44 In Stock | $159.38/each | EA | 300 °F | Quick Coupling Division | -15 °F | Ethylene Propylene | Chemical Transfer | Stainless Steel 316 | 2000 psi | Non-spill | 1 inch | Push to Connect | 3 Gal/min | 1/4 - 18 | 1/4 | Male Nipple | Female NPT | 0.02670863309352518 lb | |
| FS-252-4FP-E5 | Quote Required | $235.52/each | EA | Quick Coupling Division | Stainless Steel | 1/4 - 18 | 1/4 | Male Nipple | Female NPT | ||||||||||||
| FS-371-6FP | 1 Limited Stock | 65 In Stock | $378.37/each | EA | 300 °F | Quick Coupling Division | -15 °F | Fluorocarbon | Fluid Transfer | Stainless Steel 316 | 2000 psi | Non-spill | 1.06 inch | Push to Connect | 6 Gal/min | 3/8 - 18 | 3/8 | Female Coupler | Female NPT | 0.05341726618705036 lb | |
| FS-371-6FP-E5 | Quote Required | $470.70/each | EA | Quick Coupling Division | Stainless Steel | 3/8 - 18 | 3/8 | Female Coupler | Female NPT | ||||||||||||
| FS-372-6FP | 1 Limited Stock | 11 In Stock | $161.86/each | EA | 400 °F | Quick Coupling Division | -15 °F | Fluorocarbon | Chemical Transfer | Stainless Steel 316 | 2000 psi | Non-spill | 0.94 inch | Push to Connect | 6 Gal/min | 3/8 - 18 | 3/8 | Male Nipple | Female NPT | 0.05341726618705036 lb | |
| FS-372-6FP-E5 | Quote Required | $213.64/each | EA | Quick Coupling Division | Stainless Steel | 3/8 - 18 | 3/8 | Male Nipple | Female NPT | ||||||||||||
| FS-501-10FO | Quote Required | 5 In Stock | $693.56/each | EA | 400 °F | Quick Coupling Division | -15 °F | Fluorocarbon | Fluid and chemical transfer | 316 Stainless Steel | 2000 psi | Non-spill | 1.38 inch | Push to Connect | 12 Gal/min | 7/8 - 14 | 1/2 | Female Coupler | Female UNF | ||
| FS-501-8FP | Quote Required | 16 In Stock | $506.28/each | EA | 400 °F | Quick Coupling Division | -15 °F | Fluorocarbon | Fluid Transfer | Stainless Steel 316 | 2000 psi | Non-spill | 1.38 inch | Push to Connect | 12 Gal/min | 1/2 - 14 | 1/2 | Female Coupler | Female NPT | 0.12464028776978417 lb | |
| FS-501-8FP-E5 | Quote Required | $632.91/each | EA | 300 °F | Quick Coupling Division | -65 °F | Ethylene Propylene | Chemical Transfer | Stainless Steel 316 | 2000 psi | Non-spill | 1.38 inch | Push to Connect | 12 Gal/min | 1/2 - 14 | 1/2 | Female Coupler | Female NPT | |||
| FS-501-8FP-SL-E5 | Quote Required | $588.44/each | EA | 300 °F | Quick Coupling Division | -65 °F | Ethylene Propylene | Chemical Transfer | Stainless Steel 316 | 2000 psi | Non-spill | 1.38 inch | Push to Connect | 12 Gal/min | 1/2 - 14 | 1/2 | Female Coupler | Female NPT | |||
| FS-502-10FO | Quote Required | 5 In Stock | $378.35/each | EA | 400 °F | Quick Coupling Division | -15 °F | Fluorocarbon | Fluid and chemical transfer | 316 Stainless Steel | 2000 psi | Non-spill | 1.12 inch | Push to Connect | 12 Gal/min | 7/8 - 14 | 1/2 | Male Nipple | Female UNF | ||
| FS-502-8FP | Quote Required | 25 In Stock | $185.56/each | EA | 400 °F | Quick Coupling Division | -15 °F | Fluorocarbon | Fluid Transfer | Stainless Steel 316 | 2000 psi | Non-spill | 1.12 inch | Push to Connect | 12 Gal/min | 1/2 - 14 | 1/2 | Male Nipple | Female NPT | 0.05341726618705036 lb | |
| FS-502-8FP-E5 | Quote Required | 1 Limited Stock | $232.28/each | EA | 300 °F | Quick Coupling Division | -65 °F | Ethylene Propylene | Fluid Transfer | Stainless Steel 316 | 2000 psi | Non-spill | 1.12 inch | Push to Connect | 12 Gal/min | 1/2 - 14 | 1/2 | Male Nipple | Female NPT | ||
| FS-751-12FP | Quote Required | 3 In Stock | $891.16/each | EA | 400 °F | Quick Coupling Division | -15 °F | Fluorocarbon | Fluid and chemical transfer | 316 Stainless Steel | 2000 psi | Non-spill | 1.75 inch | Push to Connect | 28 Gal/min | 3/4 - 14 | 3/4 | Female Coupler | Female NPT | ||
| FS-752-12FP | Quote Required | 4 In Stock | $354.92/each | EA | 400 °F | Quick Coupling Division | -15 °F | Fluorocarbon | Fluid and chemical transfer | 316 Stainless Steel | 2000 psi | Non-spill | 1.50 inch | Push to Connect | 28 Gal/min | 3/4 - 14 | 3/4 | Male Nipple | Female NPT |
