E-Z Form GS Suction Hose, General Service, Series 7395
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

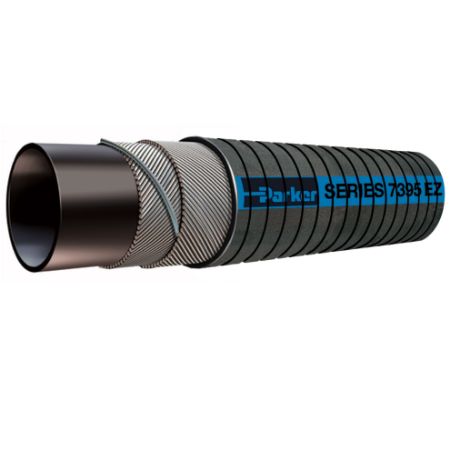

Parker's Series 7395 E-Z Form GS Greek Corrugated General Service Flexible Suction Hose provides excellent service across a wide variety of low pressure engine coolant transfer applications that require extreme hose flexibility where tight routing is a challenge. This molded coolant hose is lightweight, has a Greek corrugated construction, and provides an economical alternative to expensive made-to-order formed hose. Series 7395 is crush resistant and kink resistant for unimpeded flow, chemical resistant, offers superior flexibility for easy handling and installer/operator convenience, and is resistant to abrasion and weathering for maximum performance.
Markets:
• General Industrial
• Transportation
Features/Benefits:
• Tube: Peroxide cured EPDM for sizes up through 1", sulfer cured for sizes above 1".
• Reinforcement: Multiple textile braids or plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black EPDM for abrasion and heat resistance and durability.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.
• Lengths: Available in optional 25-foot coils, 130-foot coils or 300-foot reels for application/inventory efficiency and versatility.
Applications:
- media
• Air
• Coolant
• Mild chemicals
• Water
- usage
• Coolant lines
• Drain lines
• Industrial vacuum equipment/systems
• Buses
• Cranes
• Heavy duty trucks
• Mobile off-road equipment
Industry Standards:
• SAE J20R2-D1 performance:
• UL94 Flame Resistance Rating HB
Safety/Technical:
• Design Factor: 4:1
• Do not drag across sharp edges or highly abrasive surfaces.
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Maximum Operating Temperature | Design Factor | Cover Material | Package Type | Maximum Operating Pressure | Cover Color | Inside Diameter | Hose Inner Tube Material | Media | Application | Weight | Compatible Fitting | Cover Structure | Outside Diameter | Hose Reinforcement Material | Minimum Bend Radius | Vacuum Pressure Rating | Specifications Met | Minimum Operating Temperature | Hose I.D. (inch) | Standard Pack Qty (ft) | Maximum Working Pressure (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7395-0500025 | 31 In Stock | 254 In Stock | $15.32/foot | FT | Hose Products Division | 125 °C | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 5 bar | Black | 12.7 mm | Black | Mild Chemicals - Check your fluid compatibility with our catalogue chart. | Engine | 0.40 kg/m | HY Series | Greek-Corrugated | 23 mm | 2 Plies of Textile with Wire Helix | 0.9 inch | 29 Inch-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -45.6 °C | 1/2 | 25 | 75 | |
| 7395-0625025 | 17 In Stock | 95 In Stock | $16.47/foot | FT | Hose Products Division | 125 °C | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 75 psi | Black | 5/8 inch | Ethylene Propylene Diene Monomer (EPDM) | Coolants | Engine | 0.27 lb/ft | HY Series | Greek-Corrugated | 1.024 inch | 2 Plies of Textile with Wire Helix | 32.7 mm | 737 mm-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -45.6 °C | 5/8 | 25 | 75 | |
| 7395-0750025 | 26 In Stock | 455 In Stock | $17.15/foot | FT | Hose Products Division | 257 °F | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 75 psi | Black | 19.1 mm | Ethylene Propylene Diene Monomer (EPDM) Peroxide cured | Water | Engine | 0.35 lb/ft | HY Series | Greek-Corrugated | 1.142 inch | 2 Plies of Textile with Wire Helix | 36.3 mm | 29 Inch-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -45.6 °C | 3/4 | 25 | 75 | |
| 7395-1000025 | 59 In Stock | 1694 In Stock | $20.35/foot | FT | Hose Products Division | 257 °F | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 5 bar | Black | 1 inch | Ethylene Propylene Diene Monomer (EPDM) Peroxide cured | Coolants | Engine | 0.38 lb/ft | HY Series | Greek-Corrugated | 1.378 inch | 2 Plies of Textile with Wire Helix | 36.3 mm | 29 Inch-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -50 °F | 1 | 25 | 75 | |
| 7395-1000300 | Quote Required | 4213 In Stock | $16.44/foot | FT | Hose Products Division | 257 | 4:1 | EPDM Greek corrugated finish | Carton 50 ft | 150 | Black | 1 | Ethylene Propylene Diene Monomer (EPDM) Peroxide cured | Coolants | Engine | 0.41 | HY | Greek-Corrugated | 1.4 | Multiple Braids or Plies of Textile with Wire Helix | 1.4 | 737 | SAE J20R2-D1 | -50 | 1 | 300 | 75 | |
| 7395-1250025 | 35 In Stock | 167 In Stock | $27.53/foot | FT | Hose Products Division | 257 °F | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 75 psi | Black | 31.8 mm | Black | Water | Engine | 0.5 lb/ft | HY Series | Greek-Corrugated | 43 mm | 2 Plies of Textile with Wire Helix | 2.2 inch | 737 mm-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -50 °F | 1-1/4 | 25 | 75 | |
| 7395-1375025 | Quote Required | 21 In Stock | $23.00/foot | FT | Hose Products Division | 125 °C | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 5 bar | Black | 34.9 mm | Black | Mild Chemicals - Check your fluid compatibility with our catalogue chart. | Engine | 0.80 kg/m | n/a | Greek-Corrugated | 46 mm | 2 Plies of Textile with Wire Helix | 70.5 mm | 737 mm-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -50 °F | 1-3/8 | 25 | 75 | |
| 7395-1500025 | 34 In Stock | 543 In Stock | $32.78/foot | FT | Hose Products Division | 125 °C | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 5 bar | Black | 1-1/2 inch | Ethylene Propylene Diene Monomer (EPDM) | Mild Chemicals - Check your fluid compatibility with our catalogue chart. | Engine | 0.58 lb/ft | 43 Series | Greek-Corrugated | 1.929 inch | 2 Plies of Textile with Wire Helix | 74.1 mm | 737 mm-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -50 °F | 1-1/2 | 25 | 75 | |
| 7395-1750025 | 10 In Stock | 6 In Stock | $28.19/foot | FT | Hose Products Division | 257 °F | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 5 bar | Black | 1-3/4 inch | Black | Mild Chemicals - Check your fluid compatibility with our catalogue chart. | Engine | 0.68 lb/ft | n/a | Greek-Corrugated | 56 mm | 2 Plies of Textile with Wire Helix | 4 inch | 29 Inch-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -45.6 °C | 1-3/4 | 25 | 75 | |
| 7395-2000025 | 15 In Stock | 388 In Stock | $40.21/foot | FT | Hose Products Division | 257 °F | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 75 psi | Black | 50.8 mm | Ethylene Propylene Diene Monomer (EPDM) | Mild Chemicals - Check your fluid compatibility with our catalogue chart. | Engine | 1.43 kg/m | 43 Series | Greek-Corrugated | 2.480 inch | 2 Plies of Textile with Wire Helix | 4.6 inch | 737 mm-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -45.6 °C | 2 | 25 | 75 | |
| 7395-2000130 | Quote Required | 62 In Stock | $32.48/foot | FT | Hose Products Division | 125 °C | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 5 bar | Black | 2 inch | Black | Air | Engine | 0.96 lb/ft | 43 Series | Greek-Corrugated | 2.480 inch | 2 Plies of Textile with Wire Helix | 117.4 mm | 737 mm-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -50 °F | 2 | 130 | 75 | |
| 7395-2250025 | Quote Required | 21 In Stock | $36.64/foot | FT | Hose Products Division | 257 °F | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 75 psi | Black | 57.1 mm | Black | Water | Engine | 1.61 kg/m | n/a | Greek-Corrugated | 2.756 inch | 2 Plies of Textile with Wire Helix | 165.2 mm | 29 Inch-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -45.6 °C | 2-1/4 | 25 | 75 | |
| 7395-2375025 | Quote Required | 35 In Stock | $37.22/foot | FT | Hose Products Division | 257 °F | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | 5.2 bar | Black | 60.3 mm | Ethylene Propylene Diene Monomer (EPDM) | Air | Engine | 1.11 lb/ft | 73 mm | Multiple Braids or Plies of Textile with Wire Helix | 174.3 mm | 737 mm-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -45 °C | 2-3/8 | 25 | 75 | ||||
| 7395-2500025 | Quote Required | 82 In Stock | $38.22/foot | FT | Hose Products Division | 257 °F | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 5 bar | Black | 2-1/2 inch | Ethylene Propylene Diene Monomer (EPDM) | Air | Engine | 1.17 lb/ft | n/a | Greek-Corrugated | 3.012 inch | 2 Plies of Textile with Wire Helix | 7.2 inch | 737 mm-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -45.6 °C | 2-1/2 | 25 | 75 | |
| 7395-2750025 | Quote Required | 39 In Stock | $42.57/foot | FT | Hose Products Division | 125 °C | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | 5.2 bar | Black | 69.9 mm | Black | Mild Chemicals - Check your fluid compatibility with our catalogue chart. | Engine | 1.40 lb/ft | 84 mm | Multiple Braids or Plies of Textile with Wire Helix | 206.9 mm | 29 Inch-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -50 °F | 2-3/4 | 25 | 75 | ||||
| 7395-3000025 | Quote Required | 79 In Stock | $55.05/foot | FT | Hose Products Division | 257 °F | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 75 psi | Black | 3 inch | Black | Mild Chemicals - Check your fluid compatibility with our catalogue chart. | Engine | 2.25 kg/m | n/a | Greek-Corrugated | 90.0 mm | 2 Plies of Textile with Wire Helix | 224.2 mm | 29 Inch-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -45.6 °C | 3 | 25 | 75 | |
| 7395-3000130 | Quote Required | 1 Limited Stock | $44.48/foot | FT | Hose Products Division | 125 °C | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 5 bar | Black | 3 inch | Ethylene Propylene Diene Monomer (EPDM) | Air | Engine | 1.51 lb/ft | n/a | Greek-Corrugated | 90.0 mm | 2 Plies of Textile with Wire Helix | 8.8 inch | 737 mm-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -50 °F | 3 | 130 | 75 | |
| 7395-3500025 | Quote Required | $68.75/foot | FT | Hose Products Division | 125 °C | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 5 bar | Black | 88.9 mm | Black | Air | Engine | 1.92 lb/ft | n/a | Greek-Corrugated | 4.094 inch | 2 Plies of Textile with Wire Helix | 11.7 inch | 29 Inch-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -50 °F | 3-1/2 | 25 | 75 | ||
| 7395-4000025 | Quote Required | 3 In Stock | $60.12/foot | FT | Hose Products Division | 257 °F | 4:1 | Ethylene Propylene Diene Monomer (EPDM) | Coil | 75 psi | Black | 101.6 mm | Ethylene Propylene Diene Monomer (EPDM) | Coolants | Engine | 2.2 lb/ft | n/a | Greek-Corrugated | 4.567 inch | 2 Plies of Textile with Wire Helix | 340.3 mm | 737 mm-Hg | SAE J20R2, Class D1, UL94 Flame Resistance Rating HB | -45.6 °C | 4 | 25 | 75 |
