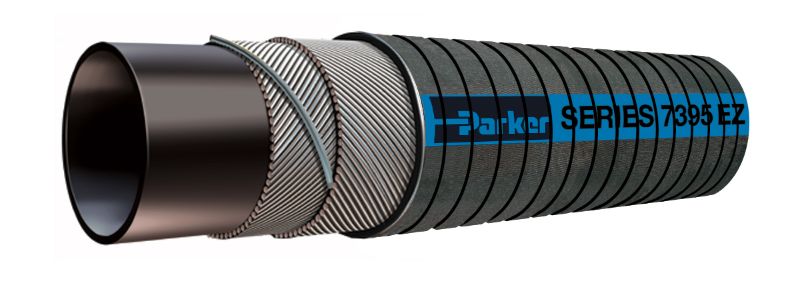

Parker 7395-0750025 - E-Z Form GS Suction Hose, General Service, Series 7395

Name: Parker 7395-0750025 - E-Z Form GS Suction Hose, General Service, Series 7395
SKU: 7395-0750025
Price: 17.15 USD
Availability: InStock

E-Z Form GS Greek Corrugated General Service Suction Hose is flexible hose designed for transfer of air, coolant, mild chemicals and water in industrial and mobile applications to 257°F and 75 psi, Series 7395

AFP Availability:

20 In Stock

Sumter, SC	15
Fayetteville, NC	5

Partner Available:

448 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 7395-0750025

$17.15/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Outside Diameter	1.142 inch
Cover Structure	Greek-Corrugated	Inside Diameter	19.1 mm
Weight	0.35 lb/ft	Maximum Operating Pressure	75 psi
Maximum Operating Temperature	257 °F	Division	Hose Products Division
Cover Color	Black	Vacuum Pressure Rating	29 Inch-Hg
Package Type	Coil	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM) peroxide cured
Design Factor	4:1	Media	Water
Compatible Fitting	HY Series	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Specifications Met	SAE J20R2, Class D1, UL94 Flame Resistance Rating HB	Minimum Bend Radius	36.3 mm
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Minimum Operating Temperature	-45.6 °C
Application	Engine	Standard Pack Qty (ft)	25
Hose I.D. (inch)	3/4	Maximum Working Pressure (psi)	75
