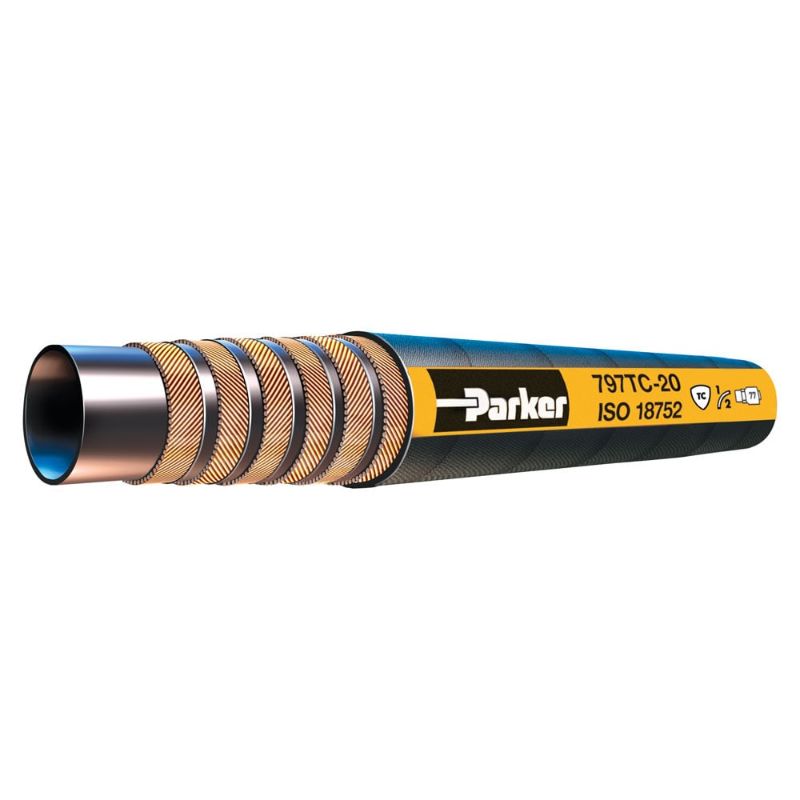

Parker 797TC-20 - Hydraulic Constant Working Pressure Hose 6000 PSI - GlobalCore 797 Hose

Name: Parker 797TC-20 - Hydraulic Constant Working Pressure Hose 6000 PSI - GlobalCore 797 Hose
SKU: 797TC-20
Price: 102.06 USD
Availability: InStock

Part of the GlobalCore line of robust yet lightweight hydraulic hose, Parker’s 797 hose is an easy-to-bend, easier-to-install 6000 PSI constant working pressure hose.

AFP Availability:

1159 In Stock

Richmond, VA	230
Summerville, SC	157
Grovetown, GA	125
Sumter, SC	115
Fayetteville, NC	93
Mooresville, NC	78
Jacksonville, FL	75
Norfolk, VA	65
Ashland, VA	61 (Pickup only)
Johnson City, TN	60 (Pickup only)
Richmond, VA	48 (Pickup only)
Knoxville, TN	24
Knoxville, TN	21

Partner Available:

6002 In Stock

Brand Parker

Part No. 797TC-20

$102.06/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	125 °C
Inside Diameter	1-1/4 inch	Size	-20
Nominal Hose Inside Diameter	31 mm	Cover Material	Synthetic Rubber Abrasion Resistant
Application	Lubricating Oils	Media	Lubricants
Compatible Fitting	77 Series	Weight	1.95 lb/ft
Hose Reinforcement Material	4 or 6 Spirals of Steel Wire	Outside Diameter	44.9 mm
Specifications Met	ISO 18752, Type DC	Hose Inner Tube Material	Proprietary Synthetic Rubber Compound
Minimum Bend Radius	8-3/4 inch	Maximum Operating Pressure	420 bar
Hose I.D. (size)	-20	Hose Cover Type	ToughCover
