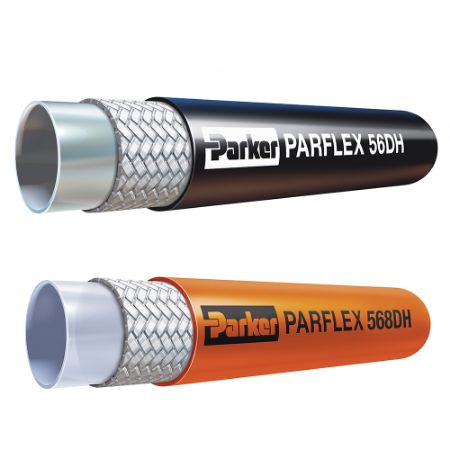

Diagnostic Hose - 56DH

Parflex 56DH diagnostic hose offers the best in class performance by reducing the volume of fluid in the system over -4 rubber hose. This diagnostic hose has a compact O.D., making it the optimal solution for applications where a small diameter hose is desired. It is also a very lightweight hose and, coupled with its good flexibility characteristics, allows for simplified routing and installation in small bore fluid transfer applications. It is often used as a replacement for steel tubing, which is much heavier and stiffer. In addition, it operates in temperatures up to 200°F and at 6,000 psi, withstands a minimum of 200,000 impulse cycles without leakage or malfunction.

Markets:
• Industrial
• Material Handling
• Mining
• Mobile Equipment

Features/Benefits:
• Lightweight and flexible for easy routing
• Twin or multi-line configurations available to accommodate various application requirements
• Compact O.D. for easier installation in diagnostic equipment and hydraulic and pneumatic systems

Applications:
• Hydraulic and pneumatic systems where a small diameter hose is desired
• Diagnostic hydraulic lines
• All Mobile and industrial equipment where remote mounting of system pressure is desired
• Construction equipment
• Ag/Turf equipment

Certifications/Compliance:
• MSHA Compliant Cover

Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
