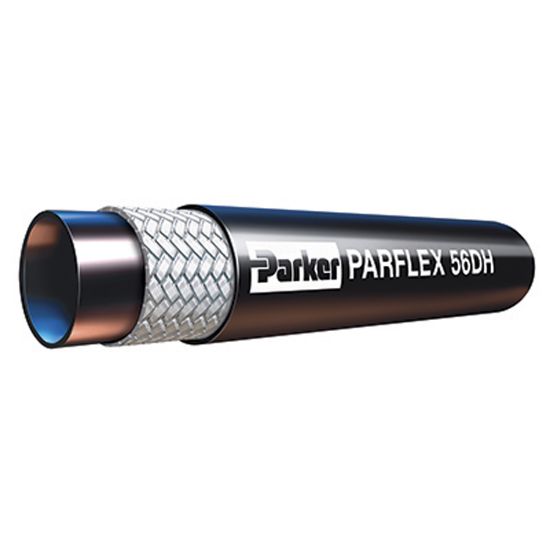

Parker 56DH-1.5 - Diagnostic Hose - 56DH

Name: Parker 56DH-1.5 - Diagnostic Hose - 56DH
SKU: 56DH-1.5
Price: 5.28 USD
Availability: InStock

Parker 56DH diagnostic hose is a 6,000 psi hose offering the best in class performance. Parflex diagnostic hose reduces the volume of fluid in the system over -4 rubber hose.

AFP Availability:

170 In Stock

Norfolk, VA

170

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 56DH-1.5

$5.28/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Temperature	93 °C
Division	Parflex Division	Media	Petroleum Hydraulic Fluids
Compatible Fitting	SF Series	Size	-1.5
Hose Inner Tube Material	Polyamide (PA)	Design Factor	4:1
Application	Pneumatics	Minimum Operating Temperature	-40 °F
Minimum Bend Radius	1/4 inch	Cover Material	Polyurethane
Specifications Met	MSHA	Weight	0.02 kg/m
Hose Reinforcement Material	Aramid Fiber	Maximum Operating Pressure	414 bar
Outside Diameter	0.210 inch	Inside Diameter	2 mm
Hose I.D. (inch)	.090
