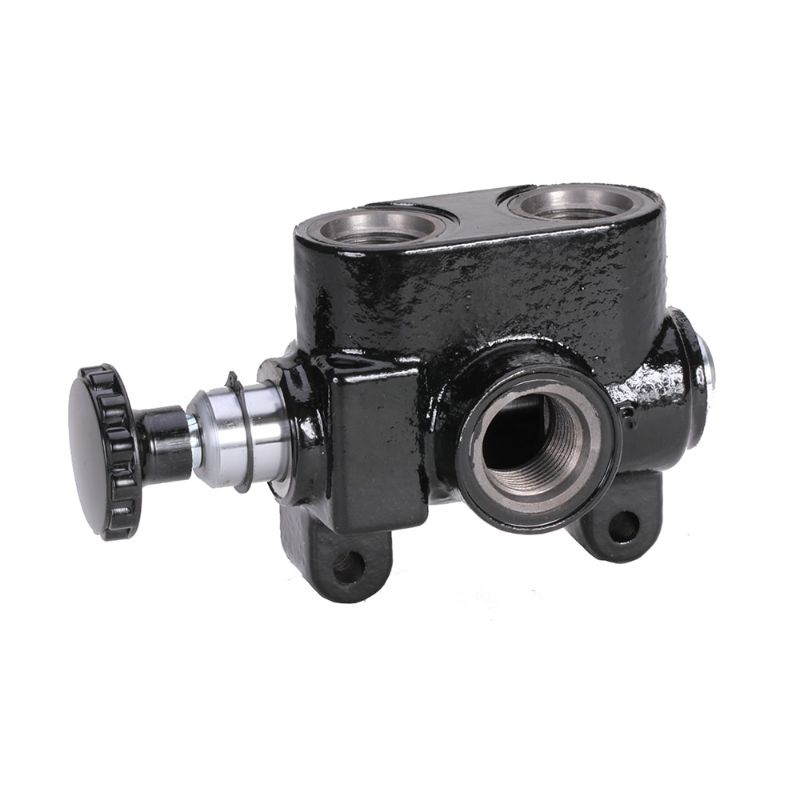

Picture of Parker H-75 - Selector Valve - S & H Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker H-75 - Selector Valve - S & H Series

Parker’s S, H, SM, & HM are two position Selector Valves. The S & SM Models are designed for directing an input flow to two different selectable circuits. The H & HM Models are designed for adding float (or freewheeling) functionality to a circuit.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. H-75
$256.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialHigh Strength Cast Iron
Adjustment MechanismKnobWeight5.4 lb
Maximum Flow Rate30Minimum Operating Temperature-40 °F
Maximum Operating Temperature+200 °FActuation TypeManual
FunctionSelector ValveSeal MaterialNitrile
Connection Size3/4"Connection TypeNPT
DivisionHydraulic Valve Systems DivisionMaximum Operating Pressure2000 psi
For Fluid TypeHydraulic OilMountingIn-Line
Port Size3/4" NPTStyleFloat Selector
