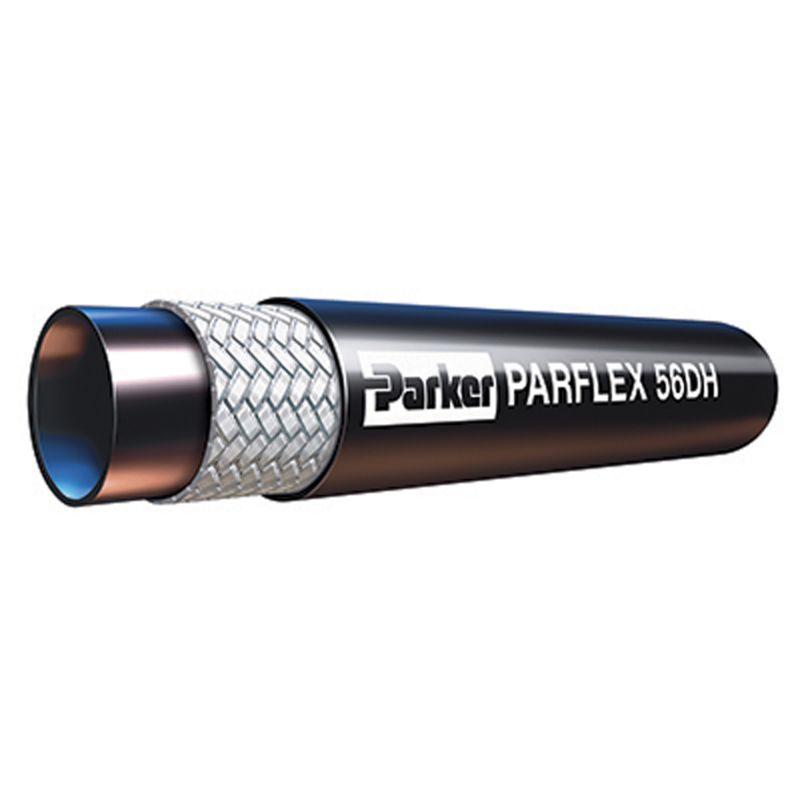

Parker 56DH-2 - Diagnostic Hose - 56DH

Name: Parker 56DH-2 - Diagnostic Hose - 56DH
SKU: 56DH-2
Price: 6.74 USD
Availability: InStock

Parker 56DH diagnostic hose is a 6,000 psi hose offering the best in class performance. Parflex diagnostic hose reduces the volume of fluid in the system over -4 rubber hose.

AFP Availability:

7 In Stock

North Chesterfield, VA	4
Sumter, SC	3

Partner Available:

10390 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 56DH-2

$6.74/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Operating Temperature	-40 °C
Cover Material	Polyurethane	Application	Diagnostics
Hose Reinforcement Material	Aramid Fiber	Specifications Met	MSHA
Minimum Bend Radius	1/2 inch	Weight	0.05 kg/m
Maximum Operating Pressure	6000 psi	Inside Diameter	0.140 inch
Outside Diameter	0.320 inch	Division	Parflex Division
Maximum Operating Temperature	200 °F	Compatible Fitting	CY Series
Size	-2	Hose Inner Tube Material	Polyamide (PA)
Media	Water	Design Factor	4:1
Hose I.D. (inch)	.140
