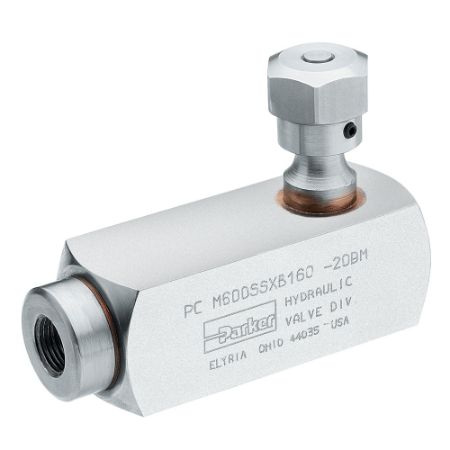

Colorflow In-Line Pressure Compensated Valve - PC*M Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s PC*M Pressure Compensated Flow Control metering valve comes with an adjustable needle providing hydraulic pressure control. The adjustable setting on the flow regulator valve can be secured with a standard set screw or a thumbscrew option that does not require additional tools. Available as steel and stainless-steel flow control valves.
Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• Port options include NPT and SAE
• Available with reverse flow check
• Port sizes available in 6 sizes from ¼” to 1 ¼”
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
• Set screw locks the valve on a desired setting
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Mounting Type | Minimum Operating Temperature | Maximum Operating Pressure | Seal Material | Body Material | Division | Maximum Flow Rate | Connection Size | Brand | Connection Type | Media | Actuation Type | Maximum Pressure Setting | Function | Configuration | Reverse Check | Maximum Operating Temperature | Knob Style | Connection Type | Mounting Type | Connection Size | Maximum Flow Rate | Maximum Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9PCCM400S | Quote Required | $372.75/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 3 Gal/min | 1/4 inch | Colorflow | Female to Female | Oil | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Check | -250 °F | Standard Knob | BSPP | In-line | 1/4" | 3 | 3000 PSI | ||
| 9PCM400S | Quote Required | $314.25/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 3 Gal/min | 1/4 inch | Colorflow | Female to Female | Oil | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | -250 °F | Standard Knob | BSPP | In-line | 1/4" | 3 | 3000 PSI | ||
| PCCM1020S | Quote Required | $469.50/each | EA | In-Line | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 15 Gal/min | 10 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Check | +250 °F | Standard Knob | SAE | In-line | 10 SAE | 15 | 3000 PSI | ||
| PCCM1200S | Quote Required | 7 In Stock | $621.00/each | EA | In-Line | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 25 Gal/min | 3/4 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Check | +250 °F | Standard Knob | NPT | In-line | 3/4" | 25 | 3000 PSI | |
| PCCM1600S | Quote Required | 3 In Stock | $1,116.00/each | EA | In-Line | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 50 Gal/min | 1 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Check | +250 °F | Standard Knob | NPT | In-line | 1" | 50 | 3000 PSI | |
| PCCM1600S-V | Quote Required | $1,129.50/each | EA | Inline | -15 °F | 3000 psi | Fluorocarbon | Steel | Hydraulic Valve Systems Division | 50 Gal/min | 1 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Check | +400 °F | Standard Knob | NPT | In-line | 1" | 50 | 3000 PSI | ||
| PCCM400S | Quote Required | 3 In Stock | $313.50/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 3 Gal/min | 1/4 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Check | +250 °F | Standard Knob | NPT | In-line | 1/4" | 3 | 3000 PSI | |
| PCCM600S | Quote Required | 34 In Stock | $372.00/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 6 Gal/min | 3/8 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Check | +250 °F | Standard Knob | NPT | In-line | 3/8" | 6 | 3000 PSI | |
| PCCM620S | Quote Required | 7 In Stock | $324.75/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 3 Gal/min | 6 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Check | +250 °F | Standard Knob | SAE | In-line | 6 SAE | 3 | 3000 PSI | |
| PCCM800S | Quote Required | 19 In Stock | $450.75/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 15 Gal/min | 1/2 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Check | +250 °F | Standard Knob | NPT | In-line | 1/2" | 15 | 3000 PSI | |
| PCCM820S | Quote Required | 2 Limited Stock | $374.25/each | EA | In-Line | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 6 Gal/min | 8 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Check | +250 °F | Standard Knob | SAE | In-line | 8 SAE | 6 | 3000 PSI | |
| PCM1200S | 1 Limited Stock | Quote Required | $523.50/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 25 Gal/min | 3/4 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Without Check | +250 °F | Standard Knob | NPT | In-line | 3/4" | 25 | 3000 PSI | |
| PCM1220S | Quote Required | 7 In Stock | $523.50/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 25 Gal/min | 12 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Without Check | +250 °F | Standard Knob | SAE | In-line | 12 SAE | 25 | 3000 PSI | |
| PCM1600S | Quote Required | $1,010.25/each | EA | In-Line | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 50 Gal/min | 1 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Without Check | -250 °F | Standard Knob | NPT | In-line | 1" | 50 | 3000 PSI | ||
| PCM400S | Quote Required | 10 In Stock | $258.75/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 3 Gal/min | 1/4 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Without Check | +250 °F | Standard Knob | NPT | In-line | 1/4" | 3 | 3000 PSI | |
| PCM600S | 9 In Stock | 30 In Stock | $318.75/each | EA | In-Line | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 6 Gal/min | 3/8 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Without Check | -250 °F | Standard Knob | NPT | In-line | 3/8" | 6 | 3000 PSI | |
| PCM600SS | Quote Required | $658.50/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Stainless Steel | Hydraulic Valve Systems Division | 6 Gal/min | 3/8 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Without Check | -250 °F | Standard Knob | NPT | In-line | 3/8" | 6 | 3000 PSI | ||
| PCM620S | Quote Required | 3 In Stock | $265.50/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 3 Gal/min | 6 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Without Check | +250 °F | Standard Knob | SAE | In-line | 6 SAE | 3 | 3000 PSI | |
| PCM800S | 7 In Stock | 41 In Stock | $400.50/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Steel | Hydraulic Valve Systems Division | 15 Gal/min | 1/2 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Without Check | -250 °F | Standard Knob | NPT | In-line | 1/2" | 15 | 3000 PSI | |
| PCM800SS | Quote Required | $678.00/each | EA | Inline | -40 °F | 3000 psi | Nitrile | Stainless Steel | Hydraulic Valve Systems Division | 15 Gal/min | 1/2 | Colorflow | Female - Female | Oil | Hydraulic | n/a | Pressure Compensated Flow Control | Female - Female | Without Check | -250 °F | Standard Knob | NPT | In-line | 1/2" | 15 | 3000 PSI |
