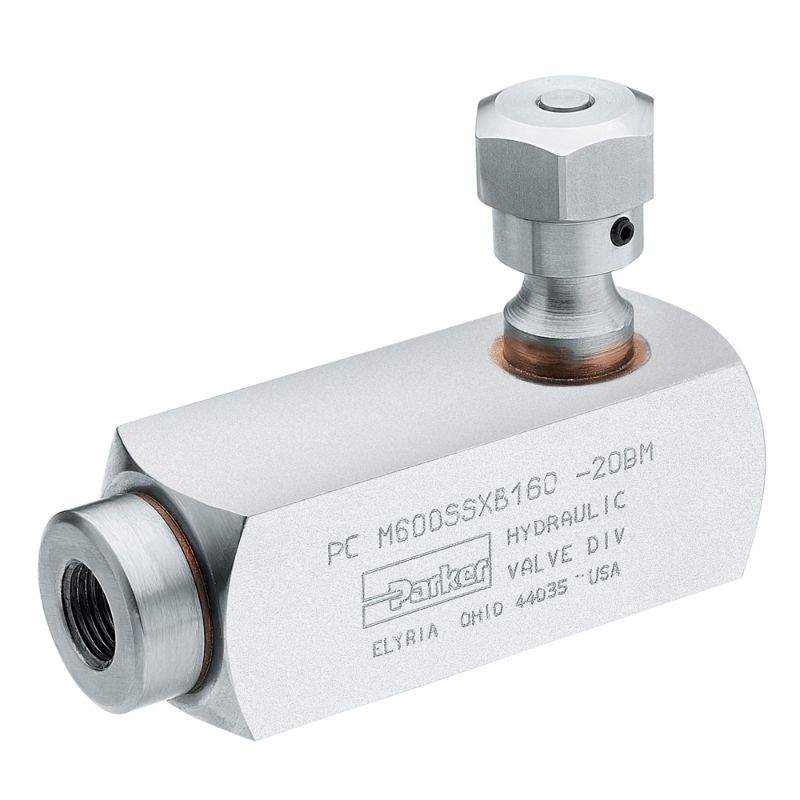

Parker PCCM1200S - Colorflow In-Line Pressure Compensated Valve - PC*M Series

Parker’s Colorflow PC*M series in-line pressure compensated valves regulate flow at a selected rate within 5% regardless of fluctuations in inlet and outlet flow. This hydraulic flow control valve can be used within a variety of applications.

AFP Availability:	Quote Required
Partner Available:	5 In Stock

Brand Parker

Part No. PCCM1200S

$621.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Function	Pressure Compensated Flow Control
Configuration	Female - Female	Division	Hydraulic Valve Systems Division
Connection Type	Female - Female	Maximum Operating Temperature	+250 °F
Maximum Operating Pressure	3000 psi	Seal Material	Nitrile
Actuation Type	Hydraulic	Connection Size	3/4
Brand	Colorflow	Maximum Pressure Setting	N/A
Minimum Operating Temperature	-40 °F	Reverse Check	Check
Knob Style	Standard Knob	Media	Oil
Mounting Type	In-line	Maximum Flow Rate	25 Gal/min
Body Material	Steel	Mounting Type	In-line
Maximum Flow Rate	25	Connection Type	NPT
Connection Size	3/4"	Maximum Operating Pressure	3000 PSI
