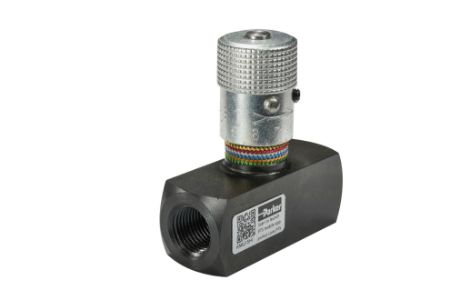

Colorflow In-Line General Purpose Needle Valve – N Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s N series valve is a two-step needle that allows fine adjustment at low flow by using the first three turns of the adjusting knob. The next three turns open the valve to full flow and provides standard throttling adjustments.
Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• Tamperproof option available
• Set screw locks the valve on a desired setting
• Port sizes available in 8 sizes from 1/8” to 1 1/4”
• Material offerings are brass, steel and stainless steel
• Port options include ISO 6149, NPT, BSPP, BSPT and SAE
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• Tamperproof option available
• Set screw locks the valve on a desired setting
• Port sizes available in 8 sizes from 1/8” to 1 1/4”
• Material offerings are brass, steel and stainless steel
• Port options include ISO 6149, NPT, BSPP, BSPT and SAE
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Seal Material | Body Material | Actuation Type | Mounting Type | Maximum Operating Temperature | Maximum Flow Rate | Brand | Maximum Operating Pressure | Product Style | Division | Minimum Operating Temperature | Connection Type | Media | Minimum Operating Temperature | Maximum Operating Pressure | Connection Size | Actuation Type | Needle option | Seal Material | Maximum Flow Rate | Knob Option | Maximum Operating Temperature | Body Material | Connection Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8N600S | Quote Required | TBD | Nitrile | Steel | Manual | Inline | 250 | 30 | Colorflow | 5000 | Needle Valve | Hydraulic Valve Systems Division | -40 | BSPT | Oil | -40.0 | 5000 | 3/8 | Manual | Standard | Nitrile | 8 | Standard Knob | +205°F | Steel | BSPT | |||
| 8N800B | Quote Required | TBD | Nitrile | Brass | Manual | Inline | 250 | 57 | Colorflow | 2000 | Needle Valve | Hydraulic Valve Systems Division | -40 | BSPT | Air | -40.0 | 2000 | 1/2 | Manual | Standard | Nitrile | 15 | Standard Knob | +205°F | BRASS | BSPT | |||
| 8N800S | Quote Required | TBD | Nitrile | Steel | Manual | Inline | 250 | 57 | Colorflow | 5000 | Needle Valve | Hydraulic Valve Systems Division | -40 | BSPT | Oil | -40.0 | 5000 | 1/2 | Manual | Standard | Nitrile | 15 | Standard Knob | +205°F | Steel | BSPT | |||
| 9N1200B | Quote Required | TBD | Nitrile | Brass | Manual | Inline | 250 °F | 95 L/min | Colorflow | 2000 psi | Needle Valve | Hydraulic Valve Systems Division | -40 °F | BSPP | Oil | -40.0 | 2000 | 12 | Manual | Standard | Nitrile | 25 | Standard Knob | +205°F | BRASS | BSPP | |||
| 9N1200BF | Quote Required | TBD | Nitrile | Brass | Manual | Inline | 250 °F | 25 Gal/min | Colorflow | 2000 psi | Needle Valve | Hydraulic Valve Systems Division | -40 °F | BSPP | Air | -40.0 | 2000 | 12 | Manual | Standard | Nitrile | 25 | Finger Screw | +205°F | BRASS | BSPP | |||
| 9N1200BF-V | Quote Required | TBD | Fluorocarbon | Brass | Manual | Inline | 400 | 95 | Colorflow | 2000 | Needle Valve | Hydraulic Valve Systems Division | -15 | BSPP | Air | -15 | 2000 | 12 | Manual | Standard | Fluorocarbon | 25 | Finger Screw | +400° F | BRASS | BSPP | |||
| 9N1200B-V | Quote Required | TBD | Fluorocarbon | Brass | Manual | Inline | 205 °C | 95 L/min | Colorflow | 2000 psi | Needle Valve | Hydraulic Valve Systems Division | -15 °F | BSPP | Oil | -15 | 2000 | 12 | Manual | Standard | Fluorocarbon | 25 | Standard Knob | +400° F | BRASS | BSPP | |||
| 9N1200S | Quote Required | $187.50 | EA | Nitrile | Steel | Manual | Inline | 121 °C | 25 Gal/min | Colorflow | 5000 psi | Needle Valve | Hydraulic Valve Systems Division | -40 °F | BSPP | Oil | -40.0 | 5000 | 12 | Manual | Standard | Nitrile | 25 | Standard Knob | +205°F | Steel | BSPP | ||
| 9N1200SF | Quote Required | TBD | Nitrile | Steel | Manual | Inline | 121 °C | 25 Gal/min | Colorflow | 5000 psi | Needle Valve | Hydraulic Valve Systems Division | -40 °F | BSPP | Oil | -40.0 | 5000 | 12 | Manual | Standard | Nitrile | 25 | Finger Screw | +205°F | Steel | BSPP | |||
| 9N1200SF-V | Quote Required | TBD | Fluorocarbon | Steel | Manual | Inline | 400 | 95 | Colorflow | 5000 | Needle Valve | Hydraulic Valve Systems Division | -15 | BSPP | Oil | -15 | 5000 | 12 | Manual | Standard | Fluorocarbon | 25 | Finger Screw | +400° F | Steel | BSPP | |||
| 9N1200ST | Quote Required | TBD | Nitrile | Steel | Manual | Inline | 250 °F | 25 Gal/min | Colorflow | 5000 psi | Needle Valve | Hydraulic Valve Systems Division | -40 °F | BSPP | Oil | -40.0 | 5000 | 12 | Manual | Standard | Nitrile | 25 | Tamperproof | +205°F | Steel | BSPP | |||
| 9N1200S-V | Quote Required | TBD | Fluorocarbon | Steel | Manual | Inline | 205 °C | 95 L/min | Colorflow | 5000 psi | Needle Valve | Hydraulic Valve Systems Division | -15 °F | BSPP | Oil | -15 | 5000 | 12 | Manual | Standard | Fluorocarbon | 25 | Standard Knob | +400° F | Steel | BSPP | |||
| 9N1600B | Quote Required | TBD | Nitrile | Brass | Manual | Inline | 250 °F | 151 L/min | Colorflow | 500 psi | Needle Valve | Hydraulic Valve Systems Division | -40 °F | BSPP | Oil | -40.0 | 500 | 1 | Manual | Standard | Nitrile | 40 | Standard Knob | +205°F | BRASS | BSPP | |||
| 9N1600BF | Quote Required | TBD | Nitrile | Brass | Manual | Inline | 250 | 151 | Colorflow | 500 | Needle Valve | Hydraulic Valve Systems Division | -40 | BSPP | Air | -40.0 | 500 | 1 | Manual | Standard | Nitrile | 40 | Finger Screw | +205°F | BRASS | BSPP | |||
| 9N1600B-V | Quote Required | TBD | Fluorocarbon | Brass | Manual | Inline | 400 °F | 40 Gal/min | Colorflow | 500 psi | Needle Valve | Hydraulic Valve Systems Division | -15 °F | BSPP | Oil | -15 | 500 | 1 | Manual | Standard | Fluorocarbon | 40 | Standard Knob | +400° F | BRASS | BSPP | |||
| 9N1600S | Quote Required | TBD | Nitrile | Steel | Manual | Inline | 121 °C | 40 Gal/min | Colorflow | 3000 psi | Needle Valve | Hydraulic Valve Systems Division | -40 °F | BSPP | Oil | -40.0 | 3000 | 1 | Manual | Standard | Nitrile | 40 | Standard Knob | +205°F | Steel | BSPP | |||
| 9N1600SF | Quote Required | TBD | Nitrile | Steel | Manual | Inline | 250 °F | 151 L/min | Colorflow | 3000 psi | Needle Valve | Hydraulic Valve Systems Division | -40 °F | BSPP | Oil | -40.0 | 3000 | 1 | Manual | Standard | Nitrile | 40 | Finger Screw | +205°F | Steel | BSPP | |||
| 9N1600SF-V | Quote Required | TBD | Fluorocarbon | Steel | Manual | Inline | 400 | 151 | Colorflow | 3000 | Needle Valve | Hydraulic Valve Systems Division | -15 | BSPP | Oil | -15 | 3000 | 1 | Manual | Standard | Fluorocarbon | 40 | Finger Screw | +400° F | Steel | BSPP | |||
| 9N1600S-V | Quote Required | TBD | Fluorocarbon | Steel | Manual | Inline | 205 °C | 151 L/min | Colorflow | 3000 psi | Needle Valve | Hydraulic Valve Systems Division | -15 °F | BSPP | Oil | -15 | 3000 | 1 | Manual | Standard | Fluorocarbon | 40 | Standard Knob | +400° F | Steel | BSPP | |||
| 9N2000S | Quote Required | TBD | Nitrile | Steel | Manual | Inline | 250 °F | 264 L/min | Colorflow | 3000 psi | Needle Valve | Hydraulic Valve Systems Division | -40 °F | BSPP | Oil | -40.0 | 3000 | 1-1/4 | Manual | Standard | Nitrile | 70 | Standard Knob | +205°F | Steel | BSPP |
