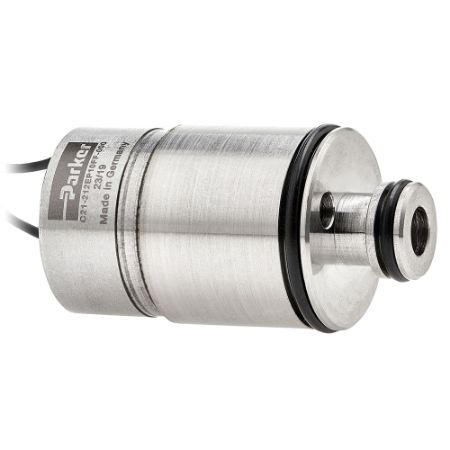

C21 Miniature Cartridge Solenoid Valve

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

The C21 is a miniature cartridge style solenoid valve with a compact 21 mm diameter. This innovative design combines miniature size, light weight and low power consumption with high flow repeatability. The C21 features a fast response time over a long life, up to 20 million cycles. Available in 2 and 3-way configurations, the C21 is manifold mounted utilizing a simple securing system reducing assembly time.

Markets
• Medical and Analytical Gas Control
• Respiratory and Anesthesia
• Patient Therapy

Features/Benefits
• Variety of orifice sizes with pressures up to 145 PSI (10 bar).
• Floating frictionless plunger enables reliable and repeatable operation up to 20 Million cycles.
• Low power design reduces heat and energy consumption.
• Cartridge configuration enables compact integration saving space and weight.
• Simple mechanical fastening prevents valve being dislodged due to vibration or pressure spikes.
• RoHS & REACH compliant.

Typical Applications
• Comperssion Therapy
• Oxygen Concentrators & Conservers
• Negative Pressure Wound Therapy

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Configuration	Function	Actuation Type	Division	Mounting Type	Operation Type	Body & Stem Base Material	Max Order Quantity	Cycles per Lifetime	Flow Rate	Seal Material	Out of Stock Lead Time	Weight	Port Connection	Shipping Weight	Power Consumption	Electrical Connection	Control Method	Width	Maximum Operating Pressure	Maximum Flow Rate	Response Time	Leak Rate	Orifice Size	Industry Application	Input Voltage	For Fluid Type	Maximum Operating Temperature	Minimum Operating Temperature	Standard Lead Time	Height	Voltage (VDC)	Wetted Materials: Seals (Elastomer)	Orifice Size (inch)	Valve Configuration Type
C21-212FK20FF-000	Quote Required	Quote Required	TBD	n/a	2-Way	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 140 SLPM	FKM	40	2.17 oz	Cartridge Seal	0.343	2.6 W	3.2" Wire Leads	Hit and Hold	20 mm	8 bar	140 SLPM	< 10 ms	< 0.0116 cm3/min	0.080 inch	Negative Pressure Wound Therapy	12 VDC	Gases	122 °F	0 °C	20	0.28 inch	12	FKM	0.079	2 Way Normally Closed
C21-212FK30FF-000	Quote Required	Quote Required	TBD	n/a	2-Way	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 124 SLPM	FKM	40	60 g	Cartridge Seal	0.343	2.6 W	3.2" Wire Leads	Hit and Hold	20 mm	4 bar	124 SLPM	< 10 ms	< 0.0116 cm3/min	0.12 inch	Oxygen Concentrators & Conservers	12 VDC	Gases	50 °C	0 °C	20	7 mm	12	FKM	0.118	2 Way Normally Closed
C21-224FK10FF-000	Quote Required	Quote Required	TBD	n/a	Normally Closed (NC)	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 67.5 SLPM	FKM	40	2.17 oz	Cartridge Seal	0.343	2.5 W	3.2" Wire Leads	Hit and Hold	0.79 inch	145 psi	67.5 SLPM	< 10 ms	< 0.0116 cm3/min	1.0 mm	Negative Pressure Wound Therapy	24 VDC	Gases	50 °C	0 °C	20	7 mm	24	FKM	0.039	2 Way Normally Closed
C21-224FK20FF-000	Quote Required	Quote Required	TBD	n/a	2-Way	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 140 SLPM	FKM	40	60 g	Cartridge Seal	0.343	2.6 W	24 V	Hit and Hold	20 mm	116 psi	140 SLPM	< 10 ms	< 0.0116 cm3/min	2.0 mm	Compression Therapy	2.5 VDC	Gases	122 °F	0 °C	20	0.28 inch	24	FKM	0.079	2 Way Normally Closed
C21-224FK40FF-000	Quote Required	Quote Required	TBD	n/a	Normally Closed (NC)	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 101 SLPM	FKM	40	60 g	Cartridge Seal	0.343	2.5 W	3.2" Wire Leads	Hit and Hold	0.79 inch	2 bar	101 SLPM	< 10 ms	< 0.0116 cm3/min	4.0 mm	Negative Pressure Wound Therapy	24 VDC	Gases	50 °C	0 °C	20	7 mm	24	FKM	0.157	2 Way Normally Closed
C21-312EP10FF-000	Quote Required	Quote Required	TBD	n/a	Normally Closed (NC)	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 60 SLPM	EPDM	40	2.17 oz	Cartridge Seal	0.343	2.6 W	3.2" Wire Leads	Hit and Hold	0.79 inch	145 psi	60 SLPM	< 10 ms	< 0.0116 cm3/min	1.0 mm	Compression Therapy	12 VDC	Gases	122 °F	32 °F	20	7 mm	12	EPDM	0.039	3 Way Normally Closed
C21-312EP20FF-000	Quote Required	Quote Required	TBD	n/a	Normally Closed (NC)	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 90 SLPM	EPDM	40	60 g	Cartridge Seal	0.343	2.6 W	3.2" Wire Leads	Voltage	20 mm	6 bar	90 SLPM	< 10 ms	< 0.0116 cm3/min	0.080 inch	Compression Therapy	12 VDC	Gases	122 °F	32 °F	20	0.28 inch	12	EPDM	0.079	3 Way Normally Closed
C21-312EP30FF-000	Quote Required	Quote Required	TBD	n/a	Normally Closed (NC)	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 70 SLPM	EPDM	40	60 g	Cartridge Seal	0.343	2.6 W	3.2" Wire Leads	Voltage	0.79 inch	2.5 bar	70 SLPM	< 10 ms	< 0.0116 cm3/min	3.0 mm	Oxygen Concentrators & Conservers	12 VDC	Gases	50 °C	32 °F	20	7 mm	12	EPDM	0.118	3 Way Normally Closed
C21-312EP40FF-000	Quote Required	Quote Required	TBD	n/a	Normally Closed (NC)	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 55 SLPM	EPDM	40	60 g	Cartridge Seal	0.343	2.6 W	3.2" Wire Leads	Hit and Hold	0.79 inch	15 psi	55 SLPM	< 10 ms	< 0.0116 cm3/min	0.16 inch	Negative Pressure Wound Therapy	12 VDC	Gases	122 °F	32 °F	20	0.28 inch	12	EPDM	0.157	3 Way Normally Closed
C21-312FK10FF-000	Quote Required	Quote Required	TBD				Precision Fluidics Division				9				40			0.343															20		12	FKM	0.039	3 Way Normally Closed
C21-312FK20FF-000	Quote Required	Quote Required	TBD				Precision Fluidics Division				9				40			0.343															20		12	FKM	0.079	3 Way Normally Closed
C21-312FK30FF-000	Quote Required	Quote Required	TBD				Precision Fluidics Division				9				40			0.343															20		12	FKM	0.118	3 Way Normally Closed
C21-312FK40FF-000	Quote Required	Quote Required	TBD				Precision Fluidics Division				9				40			0.343															20		12	FKM	0.157	3 Way Normally Closed
C21-324EP10FF-000	Quote Required	Quote Required	TBD	n/a	Normally Closed (NC)	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 60 SLPM	EPDM	40	2.17 oz	Cartridge Seal	0.343	2.5 W	3.2" Wire Leads	Hit and Hold	20 mm	145 psi	60 SLPM	< 10 ms	< 0.0116 cm3/min	1.0 mm	Negative Pressure Wound Therapy	24 VDC	Gases	122 °F	0 °C	20	7 mm	24	EPDM	0.039	3 Way Normally Closed
C21-324EP20FF-000	Quote Required	Quote Required	TBD	n/a	3-Way	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 90 SLPM	EPDM	40	60 g	Cartridge Seal	0.343	2.5 W	3.2" Wire Leads	Hit and Hold	0.79 inch	87 psi	90 SLPM	< 10 ms	< 0.0116 cm3/min	0.080 inch	Negative Pressure Wound Therapy	24 VDC	Gases	122 °F	32 °F	20	7 mm	24	EPDM	0.079	3 Way Normally Closed
C21-324EP30FF-000	Quote Required	Quote Required	TBD	n/a	3-Way	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 70 SLPM	EPDM	40	60 g	Cartridge Seal	0.343	2.5 W	3.2" Wire Leads	Voltage	0.79 inch	2.5 bar	70 SLPM	< 10 ms	< 0.0116 cm3/min	3.0 mm	Compression Therapy	24 VDC	Gases	122 °F	32 °F	20	7 mm	24	EPDM	0.118	3 Way Normally Closed
C21-324EP40FF-000	Quote Required	Quote Required	TBD	n/a	Normally Closed (NC)	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 55 SLPM	EPDM	40	2.17 oz	Cartridge Seal	0.343	2.5 W	3.2" Wire Leads	Voltage	0.79 inch	15 psi	55 SLPM	< 10 ms	< 0.0116 cm3/min	0.16 inch	Oxygen Concentrators & Conservers	24 VDC	Gases	122 °F	32 °F	20	0.28 inch	24	EPDM	0.157	3 Way Normally Closed
C21-324FK10FF-000	Quote Required	Quote Required	TBD				Precision Fluidics Division				9				40			0.343															20		24	FKM	0.039	3 Way Normally Closed
C21-324FK20FF-000	Quote Required	Quote Required	TBD	n/a	3-Way	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 90 SLPM	FKM	40	60 g	Cartridge Seal	0.343	2.5 W	3.2" Wire Leads	Voltage	20 mm	87 psi	90 SLPM	< 10 ms	< 0.0116 cm3/min	0.080 inch	Oxygen Concentrators & Conservers	24 VDC	Gases	122 °F	0 °C	20	0.28 inch	24	FKM	0.079	3 Way Normally Closed
C21-324FK30FF-000	Quote Required	Quote Required	TBD	n/a	Normally Closed (NC)	Solenoid	Precision Fluidics Division	Manifold	Electronic	Stainless Steel Series 300 and 400	9	20 Million	up to 70 SLPM	FKM	40	60 g	Cartridge Seal	0.343	2.5 W	3.2" Wire Leads	Hit and Hold	20 mm	2.5 bar	70 SLPM	< 10 ms	< 0.0116 cm3/min	0.12 inch	Negative Pressure Wound Therapy	24 VDC	Gases	50 °C	0 °C	20	0.28 inch	24	FKM	0.118	3 Way Normally Closed
