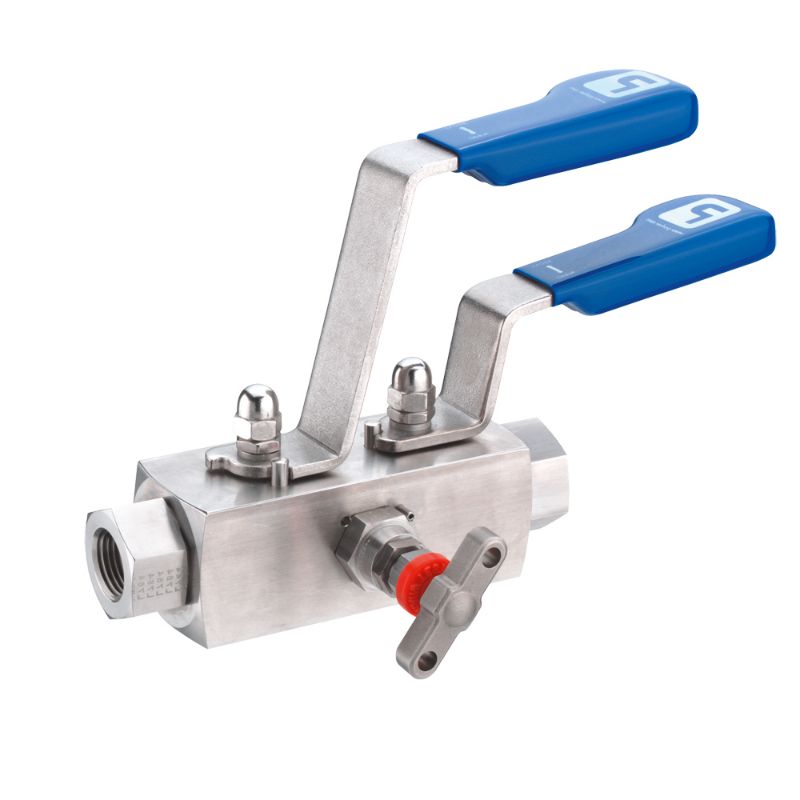

Parker HPM6L6MO2HP - Manifold - Hi-Pro Series

This series of manifolds combines isolate in the form of a ball valve and bleed/vent in a choice of ball or needle into one block for interface with pressure measurement transmitters, gauges and switches for applications up to 10,000 psi (689 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HPM6L6MO2HP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	689	Vent Size	1/4" NPT Female
Packing Material	PTFE as standard, graphite optional	Configuration	Block and Bleed
Inlet Connection Size	1/2" NPT Female	Outlet Connection Size	1/2" NPT Female
Additional Options	BSPTr, BSPP, BW, SW, PTFree Connection styles	Valve Type	Ball-Needle
Number of Valves	2 Valve	Valve Configuration	Block and Bleed
Division	Instrumentation Products Division	Materials of Construction	6Mo
Valve Configuration Type	Block and Bleed	Maximum Working Pressure (psi)	10000
Valve Type	Ball-Needle	Material	6Mo
