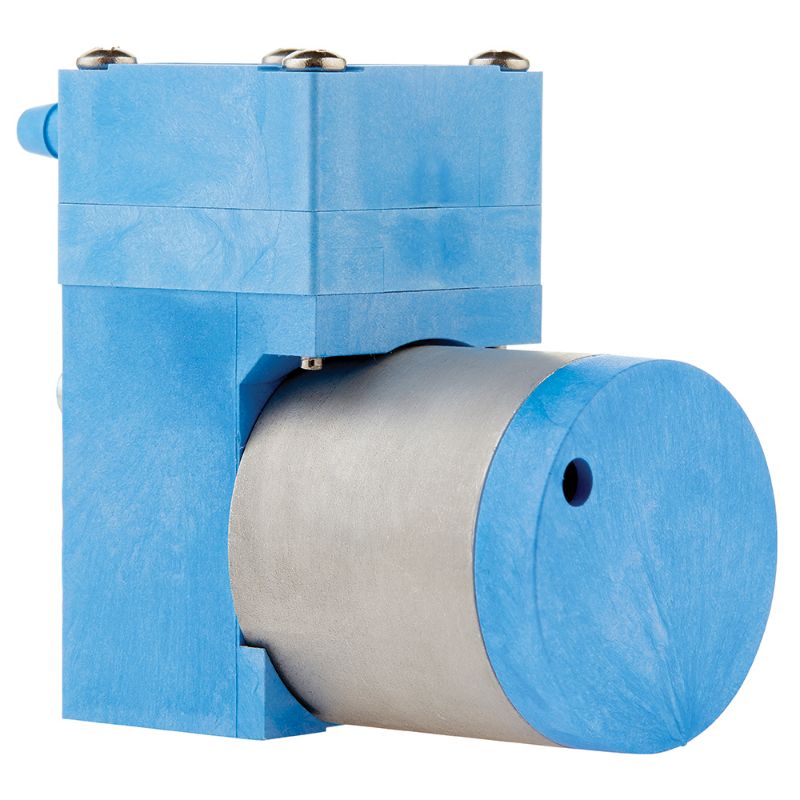

Parker W311-51 - LTC Miniature Diaphragm Pump (Liquid)

Parker’s LTC Miniature Diaphragm pump is a compact versatile pump with the option of a brush or brushless DC motor drives that can be configured for specific requirements and handle a wide variety of liquid media and range of pressures.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W311-51

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Height	2.25 inch	Width	1.18 inch
Maximum Continuous Vacuum Pressure	-8.4 psi	Length	77.5 mm
Industry Application	Large Format Printers	Motor Type	Iron Core Brush DC
Maximum Continuous Pressure	2068 mbar	Operating Temperature	5 to 50 °C
For Fluid Type	Liquids	Operational Life	3000 Hours
Noise Level	45 dBA	Body Material	Vectra A130 LCP
Product Type	Diaphragm Pump	Weight	198 g
Vacuum Pressure Rating	-432 mm-Hg	Flow Rate	up to 0.7 L/min
Operating Pressure	2068 mbar	Diaphragm Material	EPDM
Division	Precision Fluidics Division	Operational Life	3,000 Hours
Pump Type	Pressure and/or Vacuum	Connection Style	Compression 4/6 mm Tubing
Motor Option	Iron Core Brush DC	Free Flow Rate	Up to 0.7 L/min
Pump Size	Single Head
