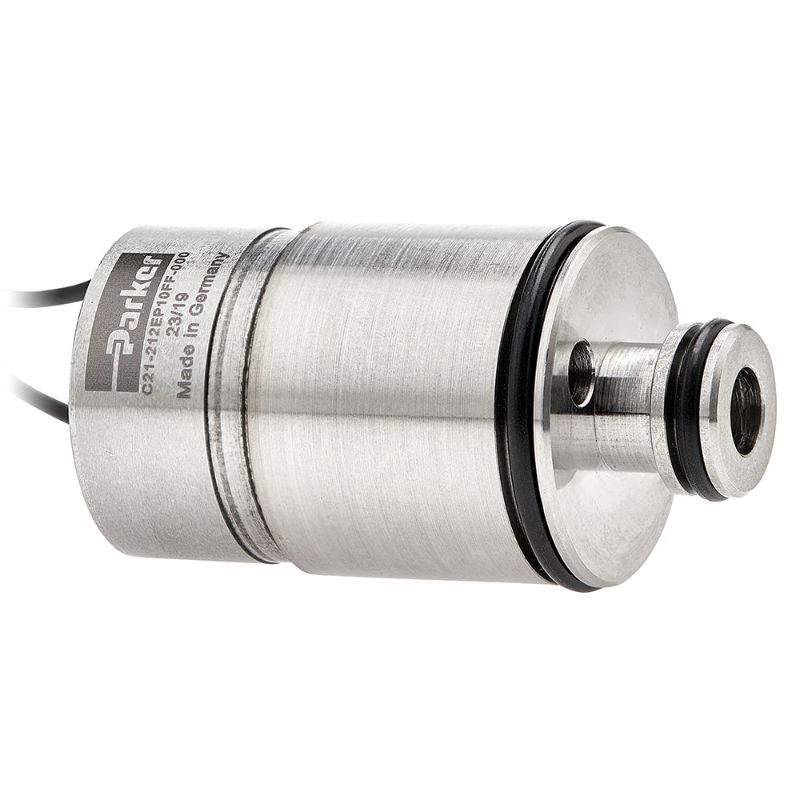

Parker C21-212FK20FF-000 - C21 Miniature Cartridge Solenoid Valve

The C21 is the largest cartridge style solenoid valve offered in our portfolio at a compact 21 mm diameter. Available In 2 and 3-way normally closed configurations. The C21 is fast and reliable valve for life science applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. C21-212FK20FF-000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Configuration	n/a	Function	2-Way
Actuation Type	Solenoid	Division	Precision Fluidics Division
Mounting Type	Manifold	Operation Type	Electronic
Body & Stem Base Material	Stainless Steel Series 300 and 400	Max Order Quantity	9
Cycles per Lifetime	20 Million	Flow Rate	up to 140 SLPM
Seal Material	FKM	Out of Stock Lead Time	40
Weight	2.17 oz	Port Connection	Cartridge Seal
Shipping Weight	0.343	Power Consumption	2.6 W
Electrical Connection	3.2" Wire Leads	Control Method	Hit and Hold
Width	20 mm	Maximum Operating Pressure	8 bar
Maximum Flow Rate	140 SLPM	Response Time	< 10 ms
Leak Rate	< 0.0116 cm3/min	Orifice Size	0.080 inch
Industry Application	Negative Pressure Wound Therapy	Input Voltage	12 VDC
For Fluid Type	Gases	Maximum Operating Temperature	122 °F
Minimum Operating Temperature	0 °C	Standard Lead Time	20
Height	0.28 inch	Voltage (VDC)	12
Wetted Materials: Seals (Elastomer)	FKM	Orifice Size (inch)	0.079
Valve Configuration Type	2 Way Normally Closed
