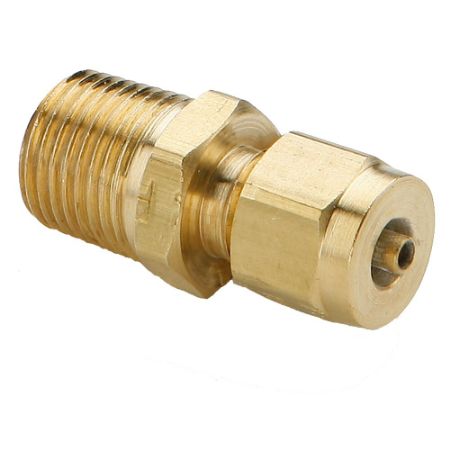

Brass Compression-Style Transmission Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker’s compression style transmission fitting utilizes a specially designed slotted sleeve to help eliminate notch stress related to over torque. Transmission fittings are ideal for pressure protected pneumatic transmission applications. Transmission fittings are also available in a push-to-connect style reducing assembly time. The push-to-connect style has a staked in tube support and is D.O.T. approved. Electroless nickel plated bodies can be used with bio-diesel.
Use with the following Parker Parflex Division J844 tubing
• 1120 Nylon Air Brake Tubing
• 1320 Quantum Elastomeric Air Brake Tubing
Markets:
• Heavy duty truck
Features/Benefits:
• All brass construction
• D.O.T. approved with staked in tube support
• Compression & Push-to-Connect styles
• Slotted sleeve
• Use with J844 nylon tubing
• Electroless nickel plated bodies can be used with bio-diesel
Applications:
• Air shift transmissions
• Seat controls
• Dash controls
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Media | Nut Material | Collet Material | Maximum Operating Temperature | Technology | O-Ring Material | Division | Division | Application | Minimum Operating Temperature | Connection 1 Size | Body Material | Tube Material | Maximum Operating Pressure | Sleeve Material | Connection 2 Tube Outside Diameter | Brand | Shape | Connection 1 Type | Product Style | Connection 2 Size | Connection 1 Size | Connection 2 Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 269TF-2-2 | 3 In Stock | 36 In Stock | $15.20/each | EA | Compressed Air | Brass | Brass | +200 °F | Fluid & Gas Handling | Nitrile | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °C | Compression | Brass | SAE J844 Type A & B Nylon Tubing | 150 psi | Brass | na | Parker | 90° Elbow | Compression | Tube to Pipe | 1/8 inch | 1/8 inch | Male Pipe Thread | |
| 269TF-5/32-2 | 5 In Stock | 29 In Stock | $16.96/each | EA | Compressed Air | Brass | Brass | 220 °F | Fluid & Gas Handling | Nitrile | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °C | Compression | Brass | SAE J844 Type A & B Nylon Tubing | 10 bar | Brass | na | Parker | 90° Elbow | Compression | Tube to Pipe | 1/8 inch | 5/32 inch | Male Pipe Thread | |
| 60TF-2 | 2 Limited Stock | 80 In Stock | $3.19/each | EA | Compressed Air | Brass | Brass | +93.3 °C | Fluid & Gas Handling | Nitrile | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °C | Compression | Brass | SAE J844 Type A & B Nylon Tubing | 10.3 bar | Brass | na | Parker | Sleeve | Push-to-Connect | Tube to Tube | NA | 1/8 inch | NA | |
| 60TF-5/32 | 42 In Stock | 50 In Stock | $5.38/each | EA | Compressed Air | Brass | Brass | +93.3 °C | Fluid & Gas Handling | Nitrile | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °F | Compression | Brass | SAE J844 Type A & B Nylon Tubing | 10.3 bar | Brass | na | Parker | Sleeve | Push-to-Connect | Tube to Tube | NA | 5/32 inch | NA | |
| 61TF-2 | 3 In Stock | 2 Limited Stock | $2.31/each | EA | Compressed Air | Brass | Brass | 104 °C | Fluid & Gas Handling | Nitrile | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °F | Compression | Brass | SAE J844 Type & B Nylon Tubing | 10 bar | Brass | na | Parker | Nut | Female Pipe Thread | Pipe to Pipe | NA | 1/8 inch | NA | |
| 61TF-5/32 | Quote Required | 73 In Stock | $3.19/each | EA | Compressed Air | Brass | Brass | 220 °F | Fluid & Gas Handling | Nitrile | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °F | Compression | Brass | SAE J844 Type A & B Nylon Tubing | 10 bar | Brass | na | Parker | Nut | Female Pipe Thread | Pipe to Pipe | NA | 5/32 inch | NA | |
| 62TF-2 | 10 In Stock | 33 In Stock | $15.42/each | EA | Compressed Air | Brass | Brass | 104 °C | Fluid & Gas Handling | Nitrile | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °C | Compression | Brass | SAE J844 Type & B Nylon Tubing | 10 bar | Brass | na | Parker | Union | Compression | Tube to Tube | 1/8 inch | 1/8 inch | Compression | |
| 62TF-5/32 | 2 Limited Stock | 12 In Stock | $22.97/each | EA | Compressed Air | +93.3 °C | Fluid & Gas Handling | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °C | Brass | SAE J844 Type & B Nylon Tubing | 10.3 bar | Parker | Union | Compression | Tube to Tube | 5/32 inch | 5/32 inch | Compression | |||||||
| 68TF-2-1 | Quote Required | 25 In Stock | $9.42/each | EA | Compressed Air | +93.3 °C | Fluid & Gas Handling | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °C | Brass | SAE J844 Type & B Nylon Tubing | 10.3 bar | Parker | Connector | Compression | Tube to Pipe | 1/16 inch | 1/8 inch | Male Pipe Thread | |||||||
| 68TF-2-2 | Quote Required | 68 In Stock | $9.12/each | EA | Compressed Air | Brass | Brass | +93.3 °C | Fluid & Gas Handling | Nitrile | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °C | Compression | Brass | SAE J844 Type & B Nylon Tubing | 150 psi | Brass | na | Parker | Connector | Compression | Tube to Pipe | 1/8 inch | 1/8 inch | Male Pipe Thread | |
| 68TF-5/32-1 | Quote Required | 7 In Stock | $12.79/each | EA | Compressed Air | +93.3 °C | Fluid & Gas Handling | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °C | Brass | SAE J844 Type & B Nylon Tubing | 10.3 bar | Parker | Connector | Compression | Tube to Pipe | 1/16 inch | 5/32 inch | Male Pipe Thread | |||||||
| 68TF-5/32-2 | Quote Required | 11 In Stock | $12.79/each | EA | Compressed Air | Brass | Brass | 220 °F | Fluid & Gas Handling | Nitrile | Fluid System Connectors Division | Fluid System Connectors Division | Air Shift Transmission, Seat Controls, Dash Controls | -40 °F | Compression | Brass | SAE J844 Type & B Nylon Tubing | 10 bar | Brass | na | Parker | Connector | Compression | Tube to Pipe | 1/8 inch | 5/32 inch | Male Pipe Thread |
