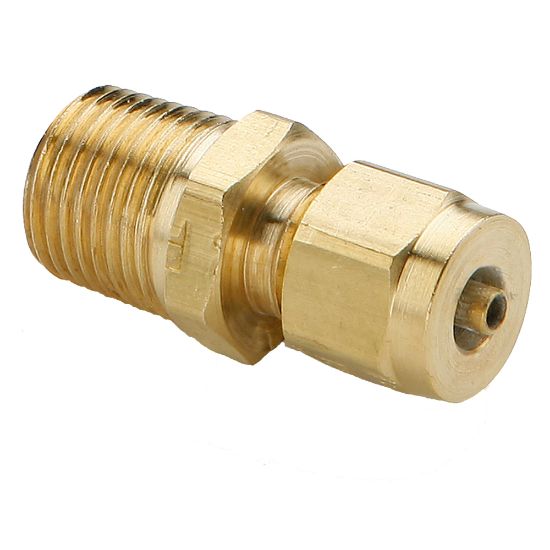

Parker 68TF-5/32-1 - Brass Compression-Style Transmission Fittings

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.

AFP Availability:	Quote Required
Partner Available:	7 In Stock

Brand Parker

Part No. 68TF-5/32-1

$12.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	+93.3 °C	Body Material	Brass
Technology	Fluid & Gas Handling	Media	Compressed Air
Minimum Operating Temperature	-40 °C	Application	Air Shift Transmission, Seat Controls, Dash Controls
Division	Fluid System Connectors Division	Brand	Parker
Maximum Operating Pressure	10.3 bar	Tube Material	SAE J844 Type & B Nylon Tubing
Connection 1 Type	Compression	Connection 1 Size	5/32 inch
Shape	Connector	Product Style	Tube to Pipe
Connection 2 Type	Male Pipe Thread	Connection 2 Size	1/16 inch
