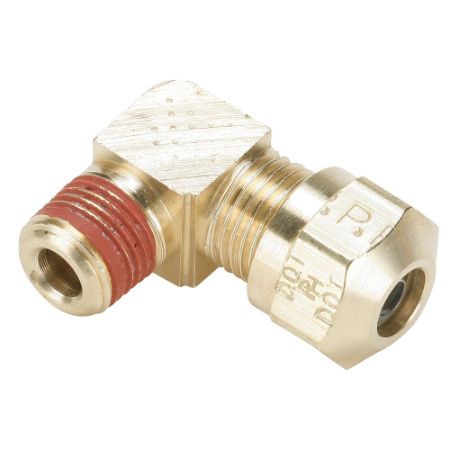

Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Being the world’s leader in leak free technologies Parker’s NTA fittings utilize a ribbed sleeve for compression and positive grip. NTA fittings meet SAE J246, SAE J1131 and D.O.T. FMVSS571.106 specifications. NTA fittings have a pre-applied thread sealant on all male pipe threads. Electroless nickel plated bodies can be used with bio-diesel.
Use with the following Parker Parflex Division J844 tubing
• 1120 Nylon Air Brake Tubing
• 1320 Quantum Elastomeric Air Brake Tubing
Markets:
• Heavy duty truck
• Trailer
• Mobile
Features/Benefits:
• D.O.T. compression style fittings for repairing truck and trailer air brake lines
• For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
• Ribbed sleeve for compression and positive grip
• Stainless Steel tube support
• Meets D.O.T. FMVSS 571.106, SAE J246 and SAE J1131
• Electroless nickel plated bodies can be used with bio-diesel
• All brass air brake fitting
• Use with J844 type A & B nylon tubing in air brake systems
• Pre-applied thread sealant
Applications:
• Air brakes
• Air tanks
• Air ride
• Sliders
• Tire inflation
• Primary & secondary air lines
• Cab controls
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Dimensional Weight | Thread Sealant Material | Nut Material | Maximum Operating Temperature | Division | Minimum Operating Temperature | Application | Body Material | Maximum Operating Pressure | Specifications Met | Tube Material | Sleeve Material | Connection 3 Style | Connection 3 Thread Size (inch) | Shape | Connection 2 Thread Size (inch) | Connection 1 Tube O.D. (inch) | Connection 2 Tube O.D. (inch) | Connection 1 Style | Style | Connection 2 Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 264NTA-10 | 3 In Stock | 48 In Stock | $96.92/each | EA | 0.5518884892086331 lb | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 150 psi | DOT FMVSS 571.106, SAE J1131, SAE J246 | Stainless Steel | Brass | na | na | Tee | na | 5/8 | 5/8 | Compression | Tube to Tube | Compression | |
| 264NTA-4 | 13 In Stock | 309 In Stock | $25.83/each | EA | 0.27594424460431655 lb | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °F | Air Brake, Accessories | Brass | 10 bar | DOT FMVSS 571.106, SAE J1131, SAE J246 | SAE J844 Type A & B Nylon Tubing | Brass | na | na | Tee | na | 1/4 | 1/4 | Compression | Tube to Tube | Compression | |
| 264NTA-6 | 15 In Stock | 247 In Stock | $23.16/each | EA | 0.27594424460431655 lb | Vibra-Seal 516 | Brass | 200 °F | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 150 psi | DOT FMVSS 571.106, SAE J1131, SAE J246 | Stainless Steel | Brass | na | na | Tee | na | 3/8 | 3/8 | Compression | Tube to Tube | Compression | |
| 264NTA-8 | 76 In Stock | 140 In Stock | $51.42/each | EA | 0.27594424460431655 lb | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 10 bar | DOT FMVSS 571.106, SAE J1131, SAE J246 | Stainless Steel | Brass | na | na | Tee | na | 1/2 | 1/2 | Compression | Tube to Tube | Compression | |
| 265NTA-10 | Quote Required | 21 In Stock | $64.60/each | EA | 0.27594424460431655 lb | Vibra-Seal 516 | Brass | 200 °F | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 150 psi | DOT FMVSS 571.106, SAE J1131, SAE J246 | SAE J844 Type A & B Nylon Tubing | Brass | na | na | 90° Elbow | na | 5/8 | 5/8 | Compression | Tube to Tube | Compression | |
| 265NTA-4 | 3 In Stock | 275 In Stock | $22.87/each | EA | 0.27594424460431655 lb | Vibra-Seal 516 | Brass | 200 °F | Fluid System Connectors Division | -40 °F | Air Brake, Accessories | Brass | 10 bar | DOT FMVSS 571.106, SAE J1131, SAE J246 | SAE J844 Type A & B Nylon Tubing | Brass | na | na | 90° Elbow | na | 1/4 | 1/4 | Compression | Tube to Tube | Compression | |
| 265NTA-6 | 12 In Stock | 61 In Stock | $22.60/each | EA | 0.27594424460431655 lb | Vibra-Seal 516 | Brass | 200 °F | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 10 bar | DOT FMVSS 571.106, SAE J1131, SAE J246 | SAE J844 Type A & B Nylon Tubing | Brass | na | na | 90° Elbow | na | 3/8 | 3/8 | Compression | Tube to Tube | Compression | |
| 265NTA-8 | 17 In Stock | 121 In Stock | $39.64/each | EA | 0.27594424460431655 lb | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °F | Air Brake, Accessories | Brass | 10 bar | DOT FMVSS 571.106, SAE J1131, SAE J246 | Stainless Steel | Brass | na | na | 90° Elbow | na | 1/2 | 1/2 | Compression | Tube to Tube | Compression | |
| 270NTA-3-2 | Quote Required | $60.03/each | EA | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 150 psi | DOT FMVSS 571.106, SAE J1131, SAE J246 | Stainless Steel | Brass | na | na | 90° Elbow | 1/8 | 3/16 | na | Compression | Tube to Female Pipe | Female Pipe | |||
| 270NTA-4-2 | 23 In Stock | 162 In Stock | $12.32/each | EA | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 10 bar | DOT FMVSS 571.106, SAE J1131, SAE J246 | Stainless Steel | Brass | na | na | 90° Elbow | 1/8 | 1/4 | na | Compression | Tube to Female Pipe | Female Pipe | ||
| 270NTA-4-4 | Quote Required | 73 In Stock | $35.41/each | EA | 0.27594424460431655 lb | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 150 psi | DOT FMVSS 571.106, SAE J1131, SAE J246 | Stainless Steel | Brass | na | na | 90° Elbow | 1/4 | 1/4 | na | Compression | Tube to Female Pipe | Female Pipe | |
| 270NTA-6-2 | Quote Required | 26 In Stock | $38.42/each | EA | 0.27594424460431655 lb | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 10 bar | DOT FMVSS 571.106, SAE J1131, SAE J246 | SAE J844 Type A & B Nylon Tubing | Brass | na | na | 90° Elbow | 1/8 | 3/8 | na | Compression | Tube to Female Pipe | Female Pipe | |
| 270NTA-6-6 | 10 In Stock | 42 In Stock | $24.73/each | EA | 0.27594424460431655 lb | Vibra-Seal 516 | Brass | 200 °F | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 150 psi | DOT FMVSS 571.106, SAE J1131, SAE J246 | SAE J844 Type A & B Nylon Tubing | Brass | na | na | 90° Elbow | 3/8 | 3/8 | na | Compression | Tube to Female Pipe | Female Pipe | |
| 270NTA-8-6 | Quote Required | 62 In Stock | $39.44/each | EA | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 150 psi | DOT FMVSS 571.106, SAE J1131, SAE J246 | SAE J844 Type A & B Nylon Tubing | Brass | na | na | 90° Elbow | 3/8 | 1/2 | na | Compression | Tube to Female Pipe | Female Pipe | ||
| 270NTA-8-8 | 9 In Stock | 61 In Stock | $34.01/each | EA | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °F | Air Brake, Accessories | Brass | 10 bar | DOT FMVSS 571.106, SAE J1131, SAE J246 | Stainless Steel | Brass | na | na | 90° Elbow | 1/2 | 1/2 | na | Compression | Tube to Female Pipe | Female Pipe | ||
| 60NTA-10 | 155 In Stock | 605 In Stock | $1.89/each | EA | 0.05518884892086331 lb | Vibra-Seal 516 | Brass | 200 °F | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 10 bar | DOT FMVSS 571.106, SAE J1131, SAE J246 | SAE J844 Type A & B Nylon Tubing | Brass | na | na | Sleeve | na | 5/8 | na | Compression | Tube | na | |
| 60NTA-12 | 71 In Stock | 464 In Stock | $2.44/each | EA | 0.05518884892086331 lb | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °F | Air Brake, Accessories | Brass | 150 psi | DOT FMVSS 571.106, SAE J1131, SAE J246 | SAE J844 Type A & B Nylon Tubing | Brass | na | na | Sleeve | na | 3/4 | na | Compression | Tube | na | |
| 60NTA-3 | 74 In Stock | 591 In Stock | $1.65/each | EA | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °C | Air Brake, Accessories | Brass | 150 psi | DOT FMVSS 571.106, SAE J1131, SAE J246 | Stainless Steel | Brass | na | na | Sleeve | na | 3/16 | na | Compression | Tube | na | ||
| 60NTA-4 | 179 In Stock | 705 In Stock | $0.82/each | EA | 0.027594424460431654 lb | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °F | Air Brake, Accessories | Brass | 150 psi | DOT FMVSS 571.106, SAE J1131, SAE J246 | Stainless Steel | Brass | na | na | Sleeve | na | 1/4 | na | Compression | Tube | na | |
| 60NTA-6 | 176 In Stock | 1108 In Stock | $0.82/each | EA | 0.027594424460431654 lb | Vibra-Seal 516 | Brass | 93 °C | Fluid System Connectors Division | -40 °F | Air Brake, Accessories | Brass | 150 psi | DOT FMVSS 571.106, SAE J1131, SAE J246 | Stainless Steel | Brass | na | na | Sleeve | na | 3/8 | na | Compression | Tube | na |
