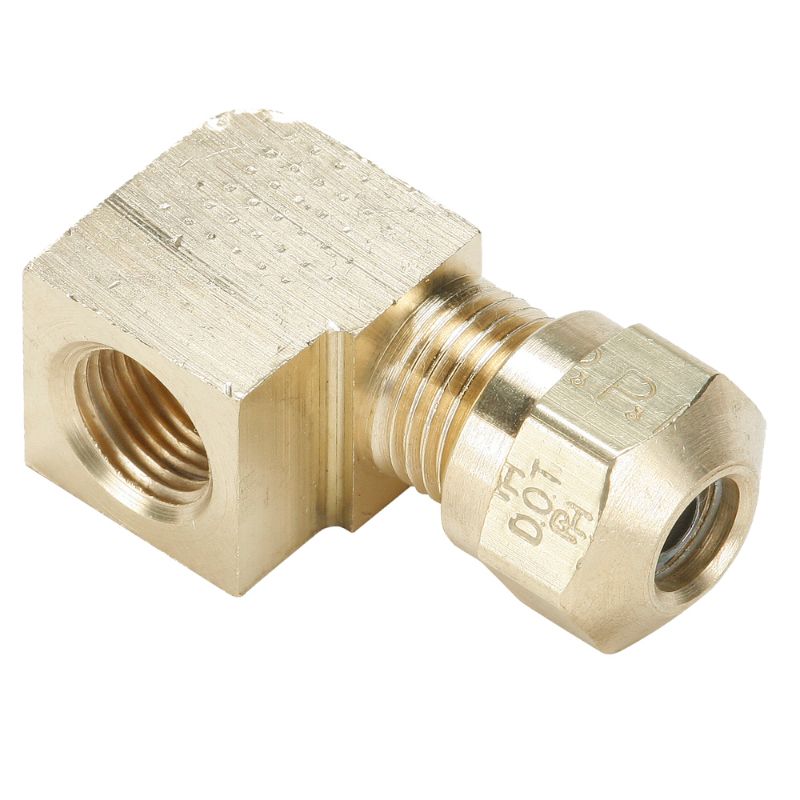

Parker 270NTA-4-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:	Quote Required
Partner Available:	102 In Stock

Brand Parker

Part No. 270NTA-4-4

$33.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	150 psi	Maximum Operating Temperature	93 °C
Dimensional Weight	0.27594424460431655 lb	Nut Material	Brass
Sleeve Material	Brass	Application	Air Brake, Accessories
Tube Material	Stainless Steel	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Thread Sealant Material	Vibra-Seal 516	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Shape	90° Elbow
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Thread Size (inch)	1/4
Connection 2 Style	Female Pipe	Style	Tube to Female Pipe
