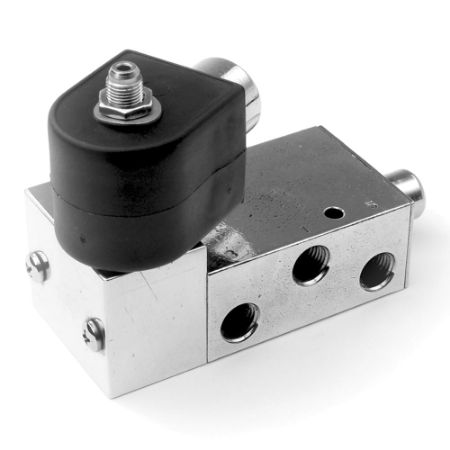

7 Family - 4 Way (5/2) Extreme-Duty VAP Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
These time-tested 4-Way valves are used to actuate double acting cylinders and pilot larger process control valves in some of the world's most demanding applications. SIL 3 capable, with service down to -40°F / -40°C, these valves are known for their reliability; plus a myriad of compliant electrical options for North America and rest-of-world (RoW) make these valves a defacto global standard in process control markets.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Port Type | Body Material | Port Size | Division | Maximum Fluid Temperature | Maximum Pressure Differential | Actuation Type | Specifications Met | Input Voltage | Minimum Fluid Temperature | Insulation Class | Power Consumption | Media | Function | Coil Type | Valve Type | Seal Material | Main Flow Coefficient | Minimum Pressure Differential | Installation | Orifice Size | Override Functionality | Ingress Protection Rating | Preventive Maintenance Kit | Maximum Ambient Temperature | Port Type | Body Material | Input Voltage | Actuation Type | Insulation Class | Maximum Fluid Temperature | Maximum Pressure Differential | Maximum Ambient Temperature | Port Size | Power Consumption | Ingress Protection Rating | Coil Type | Media | Function | Valve Type | Installation | Orifice Size | Seal Material | Specifications Met | Main Flow Coefficient | Minimum Fluid Temperature | Preventive Maintenance Kit | Minimum Pressure Differential |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 73417BN2PN00N0H111P3 | Quote Required | $458.45/each | EA | NPT | Brass | 1/4 inch | Fluid Control Division | 150 °F | 150.0 psi | Internal Pilot | EMC | 120/60 VAC | -40 °F | F (155°C) | 10 W | Inert Gases | Single Solenoid | 1/2" NPT Conduit with 18" Leads | 4-Way (5/2) | NBR - Low Temp | 1.2 Cv | 30 psi | IOM 7505 | 1/4 inch | n/a | CSA Class 2, Div. 1, Group E,F,G to T3C | 7K701 | 167 °F | NPT | BRASS | 120/60, 110/50 | Internally Piloted | Class F | 150.0 | 150.0 | 167.0 | 1/4 | 10.0 | UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C | 1/2" NPT Conduit with 18" Leads | Air, Inert Gas | 2 Position, Single Solenoid | 4 Way (5/2) | IOM 7701 | 1/4 | NBR - Low Temp | UL, CSA Listed General Purpose Valve for Hazardous Locations; SIL 3; CE - Low Voltage, EMC | 1.2 | -40.0 | 7K701 | 30.0 | ||
| 73477BN2PN00N0C111P3 | Quote Required | $523.81/each | EA | NPT | Brass | 1/4 inch | Fluid Control Division | 150 °F | 150.0 psi | Internal Pilot | CSA listed General Purpose Valve; SIL 3; CE - Low Voltage | 120/60 VAC | -40 °F | F (155°C) | 10 W | Inert Gases | 2-Position | 1/2" NPT Conduit with 18" Leads | 4-Way (5/2) | NBR - Low Temp | 1.2 Cv | 30 psi | IOM 7701 | 1/4 inch | n/a | NEMA 4 | 7K706 | 167 °F | NPT | BRASS | 120/60, 110/50 | Internally Piloted | Class F | 150.0 | 150.0 | 167.0 | 1/4 | 10.0 | NEMA 4,4X | 1/2" NPT Conduit with 18" Leads | Air, Inert Gas | 2 Position, Dual Solenoid | 4 Way (5/2) | IOM 7701 | 1/4 | NBR - Low Temp | UL, CSA Listed General Purpose Valve; SIL 3; CE - Low Voltage, EMC | 1.2 | -40.0 | 7K706 | 30.0 |
