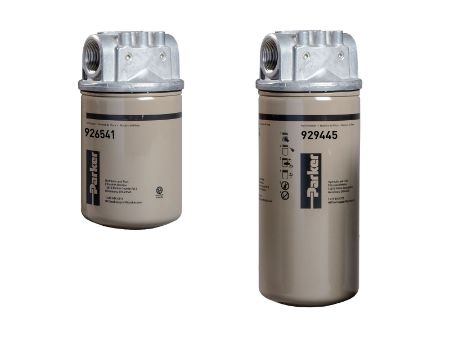

50AT Series Low Pressure Filter
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
50AT Series Hydraulic and Lube Oil Low Pressure Filter Spin-On filter technology provides users with reliable performance in a lightweight, compact and cost effective package. These solutions provide protection to critical system components in a variety of low pressure applications. Spin-On filters can be used in suction and return line filter applications with pressures to 150 psi (10.3 bar).
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Indicator Type | Nominal Filter Rating | Gauge Port Location | Seals | Max Pressure - Non-Fatigue MAOP | Nominal Flow Rating | Port | Element Length | Operating Temperature | Replacement Element | Bypass | Pkg Qty | Seals | Nominal Flow Rating | Bypass | Filter Type | Parker Division | Series | Max Pressure - Non-Fatigue MAOP | Parker Group | Port Type | Filter Media Type | Operating Temperature | Port | Nominal Filter Micron Rating | Element Length | Filter Media Code | Gauge Port Location | Indicator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50AT10BN15DDH | Quote Required | TBD | EA | No Indicator | 10 micron | Inlet And Outlet - Both Sides | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 1 1/4 NPT | Single | -40F to 225F (-40C to 107C) | 928766 | 15 PSI (1.0 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 15 PSI (1.0 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | NPT | Microglass | -40F to 225F (-40C to 107C) | 1 1/4 NPT | 10 micron | Single | 10B | Inlet And Outlet - Both Sides | No Indicator | |||
| 50AT10BN15DDN | Quote Required | TBD | EA | No Indicator | 10 micron | No Gauge Port | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 1 1/4 NPT | Single | -40F to 225F (-40C to 107C) | 928766 | 15 PSI (1.0 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 15 PSI (1.0 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | NPT | Microglass | -40F to 225F (-40C to 107C) | 1 1/4 NPT | 10 micron | Single | 10B | No Gauge Port | No Indicator | |||
| 50AT10BN15OOH | Quote Required | TBD | EA | No Indicator | 10 micron | Inlet And Outlet - Both Sides | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 20 SAE | Single | -40F to 225F (-40C to 107C) | 928766 | 15 PSI (1.0 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 15 PSI (1.0 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | SAE | Microglass | -40F to 225F (-40C to 107C) | 20 SAE | 10 micron | Single | 10B | Inlet And Outlet - Both Sides | No Indicator | |||
| 50AT10BN15OON | Quote Required | TBD | EA | No Indicator | 10 micron | No Gauge Port | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 20 SAE | Single | -40F to 225F (-40C to 107C) | 928766 | 15 PSI (1.0 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 15 PSI (1.0 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | SAE | Microglass | -40F to 225F (-40C to 107C) | 20 SAE | 10 micron | Single | 10B | No Gauge Port | No Indicator | |||
| 50AT10BN25DDH | Quote Required | TBD | EA | No Indicator | 10 micron | Inlet And Outlet - Both Sides | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 1 1/4 NPT | Single | -40F to 225F (-40C to 107C) | 928766 | 25 PSI (1.7 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 25 PSI (1.7 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | NPT | Microglass | -40F to 225F (-40C to 107C) | 1 1/4 NPT | 10 micron | Single | 10B | Inlet And Outlet - Both Sides | No Indicator | |||
| 50AT10BN25DDN | Quote Required | TBD | EA | No Indicator | 10 micron | No Gauge Port | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 1 1/4 NPT | Single | -40F to 225F (-40C to 107C) | 928766 | 25 PSI (1.7 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 25 PSI (1.7 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | NPT | Microglass | -40F to 225F (-40C to 107C) | 1 1/4 NPT | 10 micron | Single | 10B | No Gauge Port | No Indicator | |||
| 50AT10BN25OOH | Quote Required | TBD | EA | No Indicator | 10 micron | Inlet And Outlet - Both Sides | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 20 SAE | Single | -40F to 225F (-40C to 107C) | 928766 | 25 PSI (1.7 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 25 PSI (1.7 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | SAE | Microglass | -40F to 225F (-40C to 107C) | 20 SAE | 10 micron | Single | 10B | Inlet And Outlet - Both Sides | No Indicator | |||
| 50AT10BN25OON | Quote Required | $0.01 | EA | EA | No Indicator | 10 micron | No Gauge Port | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 20 SAE | Single | -40F to 225F (-40C to 107C) | 928766 | 25 PSI (1.7 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 25 PSI (1.7 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | SAE | Microglass | -40F to 225F (-40C to 107C) | 20 SAE | 10 micron | Single | 10B | No Gauge Port | No Indicator | ||
| 50AT10BN3DDH | Quote Required | TBD | EA | No Indicator | 10 micron | Inlet And Outlet - Both Sides | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 1 1/4 NPT | Single | -40F to 225F (-40C to 107C) | 928766 | 3 PSI (0.2 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 3 PSI (0.2 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | NPT | Microglass | -40F to 225F (-40C to 107C) | 1 1/4 NPT | 10 micron | Single | 10B | Inlet And Outlet - Both Sides | No Indicator | |||
| 50AT10BN3DDN | Quote Required | TBD | EA | No Indicator | 10 micron | No Gauge Port | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 1 1/4 NPT | Single | -40F to 225F (-40C to 107C) | 928766 | 3 PSI (0.2 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 3 PSI (0.2 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | NPT | Microglass | -40F to 225F (-40C to 107C) | 1 1/4 NPT | 10 micron | Single | 10B | No Gauge Port | No Indicator | |||
| 50AT10BN3OOH | Quote Required | TBD | EA | No Indicator | 10 micron | Inlet And Outlet - Both Sides | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 20 SAE | Single | -40F to 225F (-40C to 107C) | 928766 | 3 PSI (0.2 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 3 PSI (0.2 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | SAE | Microglass | -40F to 225F (-40C to 107C) | 20 SAE | 10 micron | Single | 10B | Inlet And Outlet - Both Sides | No Indicator | |||
| 50AT10BN3OON | Quote Required | TBD | EA | No Indicator | 10 micron | No Gauge Port | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 20 SAE | Single | -40F to 225F (-40C to 107C) | 928766 | 3 PSI (0.2 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 3 PSI (0.2 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | SAE | Microglass | -40F to 225F (-40C to 107C) | 20 SAE | 10 micron | Single | 10B | No Gauge Port | No Indicator | |||
| 50AT10BNXDDH | Quote Required | TBD | EA | No Indicator | 10 micron | Inlet And Outlet - Both Sides | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 1 1/4 NPT | Single | -40F to 225F (-40C to 107C) | 928766 | No Bypass | 1 | Nitrile | 30 GPM (114 LPM) | No Bypass | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | NPT | Microglass | -40F to 225F (-40C to 107C) | 1 1/4 NPT | 10 micron | Single | 10B | Inlet And Outlet - Both Sides | No Indicator | |||
| 50AT10BNXDDN | Quote Required | TBD | EA | No Indicator | 10 micron | No Gauge Port | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 1 1/4 NPT | Single | -40F to 225F (-40C to 107C) | 928766 | No Bypass | 1 | Nitrile | 30 GPM (114 LPM) | No Bypass | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | NPT | Microglass | -40F to 225F (-40C to 107C) | 1 1/4 NPT | 10 micron | Single | 10B | No Gauge Port | No Indicator | |||
| 50AT10BNXOOH | Quote Required | TBD | EA | No Indicator | 10 micron | Inlet And Outlet - Both Sides | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 20 SAE | Single | -40F to 225F (-40C to 107C) | 928766 | No Bypass | 1 | Nitrile | 30 GPM (114 LPM) | No Bypass | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | SAE | Microglass | -40F to 225F (-40C to 107C) | 20 SAE | 10 micron | Single | 10B | Inlet And Outlet - Both Sides | No Indicator | |||
| 50AT10BNXOON | Quote Required | TBD | EA | No Indicator | 10 micron | No Gauge Port | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 20 SAE | Single | -40F to 225F (-40C to 107C) | 928766 | No Bypass | 1 | Nitrile | 30 GPM (114 LPM) | No Bypass | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | SAE | Microglass | -40F to 225F (-40C to 107C) | 20 SAE | 10 micron | Single | 10B | No Gauge Port | No Indicator | |||
| 50AT10CN15DDH | Quote Required | $0.01 | EA | EA | No Indicator | 10 micron | Inlet And Outlet - Both Sides | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 1 1/4 NPT | Single | -40F to 225F (-40C to 107C) | 926169 | 15 PSI (1.0 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 15 PSI (1.0 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | NPT | Cellulose | -40F to 225F (-40C to 107C) | 1 1/4 NPT | 10 micron | Single | 10C | Inlet And Outlet - Both Sides | No Indicator | ||
| 50AT10CN15DDN | Quote Required | TBD | EA | No Indicator | 10 micron | No Gauge Port | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 1 1/4 NPT | Single | -40F to 225F (-40C to 107C) | 926169 | 15 PSI (1.0 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 15 PSI (1.0 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | NPT | Cellulose | -40F to 225F (-40C to 107C) | 1 1/4 NPT | 10 micron | Single | 10C | No Gauge Port | No Indicator | |||
| 50AT10CN15OOH | Quote Required | TBD | EA | No Indicator | 10 micron | Inlet And Outlet - Both Sides | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 20 SAE | Single | -40F to 225F (-40C to 107C) | 926169 | 15 PSI (1.0 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 15 PSI (1.0 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | SAE | Cellulose | -40F to 225F (-40C to 107C) | 20 SAE | 10 micron | Single | 10C | Inlet And Outlet - Both Sides | No Indicator | |||
| 50AT10CN15OON | Quote Required | TBD | EA | No Indicator | 10 micron | No Gauge Port | Nitrile | 150 psi (10.3 bar) | 35 GPM (132 LPM) | 20 SAE | Single | -40F to 225F (-40C to 107C) | 926169 | 15 PSI (1.0 bar) | 1 | Nitrile | 30 GPM (114 LPM) | 15 PSI (1.0 bar) | Low Pressure Filter | Hydraulic Filter | 50AT | 150 PSI (10.3 bar) | Filtration | SAE | Cellulose | -40F to 225F (-40C to 107C) | 20 SAE | 10 micron | Single | 10C | No Gauge Port | No Indicator |
