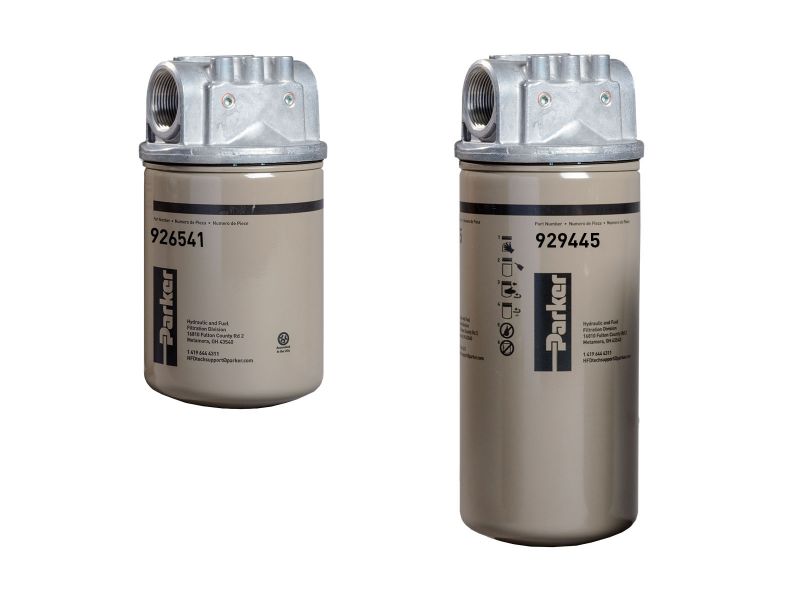

Parker 50AT10BN25OON - 50AT Series Low Pressure Filter

50AT Series Hydraulic and Lube Oil Low Pressure Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50AT10BN25OON

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Element Length	Single
Seals	Nitrile	Replacement Element	928766
Operating Temperature	-40F to 225F (-40C to 107C)	Gauge Port Location	No Gauge Port
Pkg Qty	1	Indicator Type	No Indicator
Nominal Filter Rating	10 micron	Port	20 SAE
Bypass	25 PSI (1.7 bar)	Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)
UOM	EA	Nominal Flow Rating	35 GPM (132 LPM)
Parker Group	Filtration	Filter Media Type	Microglass
Operating Temperature	-40F to 225F (-40C to 107C)	Nominal Filter Micron Rating	10 micron
Element Length	Single	Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)
Indicator Type	No Indicator	Bypass	25 PSI (1.7 bar)
Port Type	SAE	Seals	Nitrile
Nominal Flow Rating	30 GPM (114 LPM)	Filter Media Code	10B
Gauge Port Location	No Gauge Port	Series	50AT
Filter Type	Low Pressure Filter	Port	20 SAE
Parker Division	Hydraulic Filter

Product resources

12AT/50AT/80AT/80UT Series (PDF)
