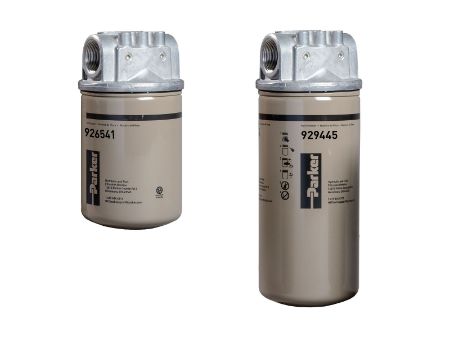

50AT Series Low Pressure Filter
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
50AT Series Hydraulic and Lube Oil Low Pressure Filter Spin-On filter technology provides users with reliable performance in a lightweight, compact and cost effective package. These solutions provide protection to critical system components in a variety of low pressure applications. Spin-On filters can be used in suction and return line filter applications with pressures to 150 psi (10.3 bar).
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Element Length | Seals | Replacement Element | Operating Temperature | Gauge Port Location | Pkg Qty | Indicator Type | Nominal Filter Rating | Port | Bypass | Max Pressure - Non-Fatigue MAOP | Nominal Flow Rating | Parker Group | Filter Media Type | Operating Temperature | Nominal Filter Micron Rating | Element Length | Max Pressure - Non-Fatigue MAOP | Indicator Type | Bypass | Port Type | Seals | Nominal Flow Rating | Filter Media Code | Gauge Port Location | Series | Filter Type | Port | Parker Division |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50AT10BN25OON | Quote Required | TBD | EA | EA | Single | Nitrile | 928766 | -40F to 225F (-40C to 107C) | No Gauge Port | 1 | No Indicator | 10 micron | 20 SAE | 25 PSI (1.7 bar) | 150 psi (10.3 bar) | 35 GPM (132 LPM) | Filtration | Microglass | -40F to 225F (-40C to 107C) | 10 micron | Single | 150 PSI (10.3 bar) | No Indicator | 25 PSI (1.7 bar) | SAE | Nitrile | 30 GPM (114 LPM) | 10B | No Gauge Port | 50AT | Low Pressure Filter | 20 SAE | Hydraulic Filter | ||
| 50AT10CN15DDH | Quote Required | TBD | EA | EA | Single | Nitrile | 926169 | -40F to 225F (-40C to 107C) | Inlet And Outlet - Both Sides | 1 | No Indicator | 10 micron | 1 1/4 NPT | 15 PSI (1.0 bar) | 150 psi (10.3 bar) | 35 GPM (132 LPM) | Filtration | Cellulose | -40F to 225F (-40C to 107C) | 10 micron | Single | 150 PSI (10.3 bar) | No Indicator | 15 PSI (1.0 bar) | NPT | Nitrile | 30 GPM (114 LPM) | 10C | Inlet And Outlet - Both Sides | 50AT | Low Pressure Filter | 1 1/4 NPT | Hydraulic Filter | ||
| 50AT10CN25DDH | Quote Required | 11 In Stock | TBD | EA | EA | Single | Nitrile | 926169 | -40F to 225F (-40C to 107C) | Inlet And Outlet - Both Sides | 1 | No Indicator | 10 micron | 1 1/4 NPT | 25 PSI (1.7 bar) | 150 psi (10.3 bar) | 35 GPM (132 LPM) | Filtration | Cellulose | -40F to 225F (-40C to 107C) | 10 micron | Single | 150 PSI (10.3 bar) | No Indicator | 25 PSI (1.7 bar) | NPT | Nitrile | 30 GPM (114 LPM) | 10C | Inlet And Outlet - Both Sides | 50AT | Low Pressure Filter | 1 1/4 NPT | Hydraulic Filter | |
| 50AT10CN25OOH | Quote Required | TBD | EA | EA | Single | Nitrile | 926169 | -40F to 225F (-40C to 107C) | Inlet And Outlet - Both Sides | 1 | No Indicator | 10 micron | 20 SAE | 25 PSI (1.7 bar) | 150 psi (10.3 bar) | 35 GPM (132 LPM) | Filtration | Cellulose | -40F to 225F (-40C to 107C) | 10 micron | Single | 150 PSI (10.3 bar) | No Indicator | 25 PSI (1.7 bar) | SAE | Nitrile | 30 GPM (114 LPM) | 10C | Inlet And Outlet - Both Sides | 50AT | Low Pressure Filter | 20 SAE | Hydraulic Filter | ||
| 50AT20BN25DDH | Quote Required | TBD | EA | EA | Single | Nitrile | 928767 | -40F to 225F (-40C to 107C) | Inlet And Outlet - Both Sides | 1 | No Indicator | 20 micron | 1 1/4 NPT | 25 PSI (1.7 bar) | 150 psi (10.3 bar) | 35 GPM (132 LPM) | Filtration | Microglass | -40F to 225F (-40C to 107C) | 20 micron | Single | 150 PSI (10.3 bar) | No Indicator | 25 PSI (1.7 bar) | NPT | Nitrile | 30 GPM (114 LPM) | 20B | Inlet And Outlet - Both Sides | 50AT | Low Pressure Filter | 1 1/4 NPT | Hydraulic Filter |
