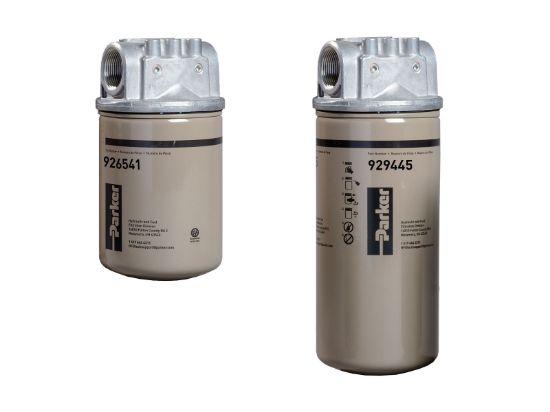

Parker 50AT10CN25DDH - 50AT Series Low Pressure Filter

50AT Series Hydraulic and Lube Oil Low Pressure Filter

Availability:	Quote Required
Partner Available:	11 In Stock

Brand Parker

Part No. 50AT10CN25DDH

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Nominal Filter Rating	10 micron
Seals	Nitrile	Indicator Type	No Indicator
Bypass	25 PSI (1.7 bar)	Gauge Port Location	Inlet And Outlet - Both Sides
Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)	Port	1 1/4 NPT
Nominal Flow Rating	35 GPM (132 LPM)	Replacement Element	926169
Parker Group	Filtration	Parker Division	Hydraulic Filter
Operating Temperature	-40F to 225F (-40C to 107C)	Filter Media Code	10C
Filter Type	Low Pressure Filter	Nominal Filter Micron Rating	10 micron
Filter Media Type	Cellulose	Element Length	Single
Port Type	NPT	Indicator Type	No Indicator
Bypass	25 PSI (1.7 bar)	Gauge Port Location	Inlet And Outlet - Both Sides
Seals	Nitrile	Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)
Nominal Flow Rating	30 GPM (114 LPM)	Series	50AT
Port	1 1/4 NPT

Product resources

12AT/50AT/80AT/80UT Series (PDF)
