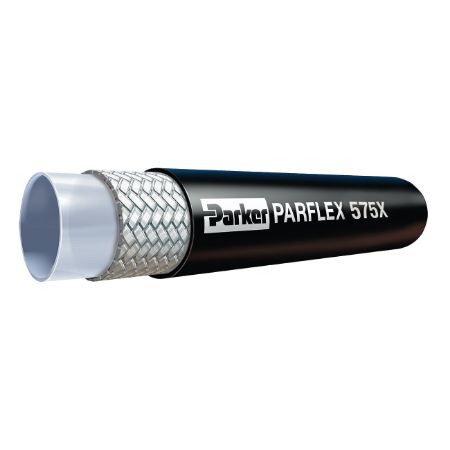

5,000 PSI Hydraulic Hose - 575X/575XN

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parflex 575X Fast Response Constant Pressure Hoses are designed for applications such as offshore drilling, that require fast and accurate response time. The 575X is capable of operating at a 5,000 psi constant pressure. It is MSHA accepted and exhibits rapid response even over long lengths, making it the optimal solution for marine and oilfield service market applications.

Markets:
• Oil & Gas
• Marine
• Industrial

Features/Benefits:
• Fast response even over longer lengths
• Reduced weight without compromising performance
• Resistant to pin hole leaks
• 5000 psi constant working pressure

Applications:
• Applications requiring fast and accurate response time
• Oilfield service
• Offshore drilling

Certifications/Compliance:
• MSHA Accepted

Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Inside Diameter	Specifications Met	Application	Cover Material	Weight	Compatible Fitting	Minimum Operating Temperature	Maximum Operating Temperature	Division	Design Factor	Minimum Bend Radius	Hose Reinforcement Material	Media	Hose Inner Tube Material	Maximum Operating Pressure	Outside Diameter	Size	Hose I.D. (inch)	Cover Material
575X-12	Quote Required	495 In Stock	$36.51	FT	3/4 inch	DNV GL	Marine	Polyurethane	0.24 lb/ft	CG Series	-40 °F	100 °C	Parflex Division	4:1	8 inch	Aramid Fiber	Air	Polyamide (PA)	345 bar	29.2 mm	-12	3/4	Polyurethane
575X-16	Quote Required	249 In Stock	$76.01	FT	1 inch	DNV GL	Diagnostics	Polyurethane	0.71 kg/m	CG Series	-40 °C	212 °F	Parflex Division	4:1	10 inch	Aramid Fiber	Chemicals	Polyamide (PA)	34.5 MPa	40.4 mm	-16	1	Polyurethane
575X-3	Quote Required	Quote Required	TBD		5 mm	MSHA	Industrial Machinery	Polyurethane	0.07 kg/m	CG Series	-40 °C	100 °C	Parflex Division	4:1	1-1/2 inch	Aramid Fiber	Petroleum Hydraulic Fluids	Polyamide (PA)	34.5 MPa	10.9 mm	-3	3/16	Polyurethane
575X-4	Quote Required	Quote Required	TBD		6 mm	DNV GL	Industrial Machinery	Polyurethane	0.07 lb/ft	CG Series	-40 °C	212 °F	Parflex Division	4:1	51 mm	Aramid Fiber	Air	Polyamide (PA)	345 bar	0.510 inch	-4	1/4	Polyurethane, TOUGHJACKET
575X-6	Quote Required	403 In Stock	$13.68	FT	3/8 inch	MSHA	Offshore Drilling	Polyurethane	0.13 kg/m	CG Series	-40 °C	100 °C	Parflex Division	4:1	76 mm	Aramid Fiber	Lubricants (Oils)	Polyamide (PA)	5000 psi	0.640 inch	-6	3/8	Polyurethane, TOUGHJACKET
575X-8	Quote Required	Quote Required	TBD		1/2	DNV GL	Diagnostics	Polyurethane	0.14	CG Series	-40	212	Parflex Division	4:1	4	Aramid Fiber	Air	Polyamide (PA)	5000	0.810	-8	1/2	Polyurethane
575XN-16	Quote Required	Quote Required	TBD		1	DNV GL	Hydraulics	Polyamide (PA)	0.37	CG Series	-40	150	Parflex Division	4:1	10	Aramid Fiber	Air	Polyamide (PA)	5000	1.510	-16	1	Nylon
575XN-8	Quote Required	624 In Stock	$21.27	FT	13 mm	DNV GL	Industrial Machinery	Polyamide (PA)	0.14 lb/ft	CG Series	-40 °C	100 °C	Parflex Division	4:1	102 mm	Aramid Fiber	Air	Polyamide (PA)	5000 psi	20.6 mm	-8	1/2	Nylon
