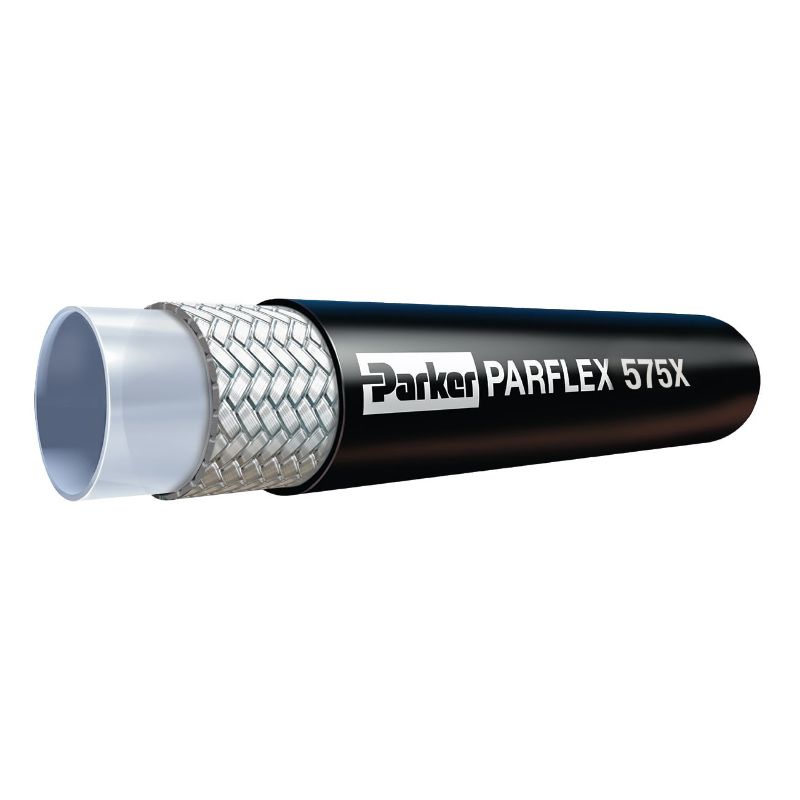

Parker 575XN-8 - 5,000 PSI Hydraulic Hose - 575X/575XN

Parflex 575X Fast Response Constant Pressure Hoses are designed for applications such as offshore drilling, that require fast response times.

AFP Availability:	Quote Required
Partner Available:	382 In Stock

Brand Parker

Part No. 575XN-8

$21.91/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Temperature	100 °C
Hose Inner Tube Material	Polyamide (PA)	Media	Air
Compatible Fitting	CG Series	Size	-8
Design Factor	4:1	Application	Industrial Machinery
Cover Material	Polyamide (PA)	Minimum Operating Temperature	-40 °C
Minimum Bend Radius	102 mm	Specifications Met	DNV GL
Hose Reinforcement Material	Aramid Fiber	Weight	0.14 lb/ft
Maximum Operating Pressure	5000 psi	Outside Diameter	20.6 mm
Inside Diameter	13 mm	Division	Parflex Division
Cover Material	Nylon	Hose I.D. (inch)	1/2
